Feature
- RSSI alarms (warns you of reception problems before it becomes an accident)
- 16 channels (more when combined with external module)
- 64 Mixers 9 Flight Modes
- 16 custom curves with 3-17 points each 32 Logic Switches
- Self-test of the transmitter antenna
- 60 Model memory (expandable via a SD card)
- Audio Speech outputs
- USB and SD card slot for Unlimited Memory and Firmware Upgrades and Sound Editing.
- Long range system capable of up to 3 times the range of current systems
- Quad bearing gimbals that are silky smooth
- State-of-the-art open source software (open TX)
- Super low latency for ultra-quick response (9ms)
- Large backlit display
- Real-time data logging
- Receiver lock (program locked to aircraft)
- JR Style module bay for additional RF modules
- Processor: STM32 ARM Cortex M3 60MHz
Specification
- Model name: Taranis X9D
- Number of Channels: up to 16
- Operating Voltage Range: 6-15v (2s 3s Lipos are acceptable)
- Operating Current: 260mA maximum (both RF module and backlit are on)
- Operating Temperature: -10~60°C
- Backlit LCD Screen: 212*64 Monochrome
- Model Memories: 60 (expandable by SD card)
- Compatibility: FrSky X series D series and V8-II series receivers
- Stick mode: Mode 2 (Left hand throttle)
Included

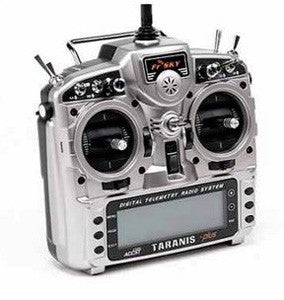

- Taranis X9D ACCST 2.4GHz Transmitter (Mode 2 version)
- 800mAh NiMH Low Self Discharge Battery
- Battery Charger Adapter - US type
- Neck Strap
