Important notice 1.If a UBEC is connected to an OPTO type ESC (ESC without BEC output), just connect the input lead of the UBEC to a battery pack, and plug the output connector of the UBEC into a receiver. 2. If used together with an ESC with SBEC output, the red wire of the signal wires of the ESC must be removed from a receiver before it is connected to a UBEC.

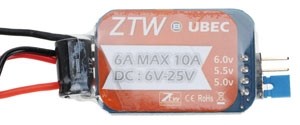

Specification Of 6A UBEC: 1. Switching type 2. Output: 5.0V/6A ,5.5V/6A or 6.0V/6A switchable (Changeable with a blue jumper) 3. Input: 6V-25V (2-6S Lipo, 5-18S NiMH/NiCd) 4. Output Current: Continuous Current 6A, Burst Current 10A 5. Size: 45.0mm*23.0mm*10.0mm(Length*Width*Height) 6. Weight:18.0g
