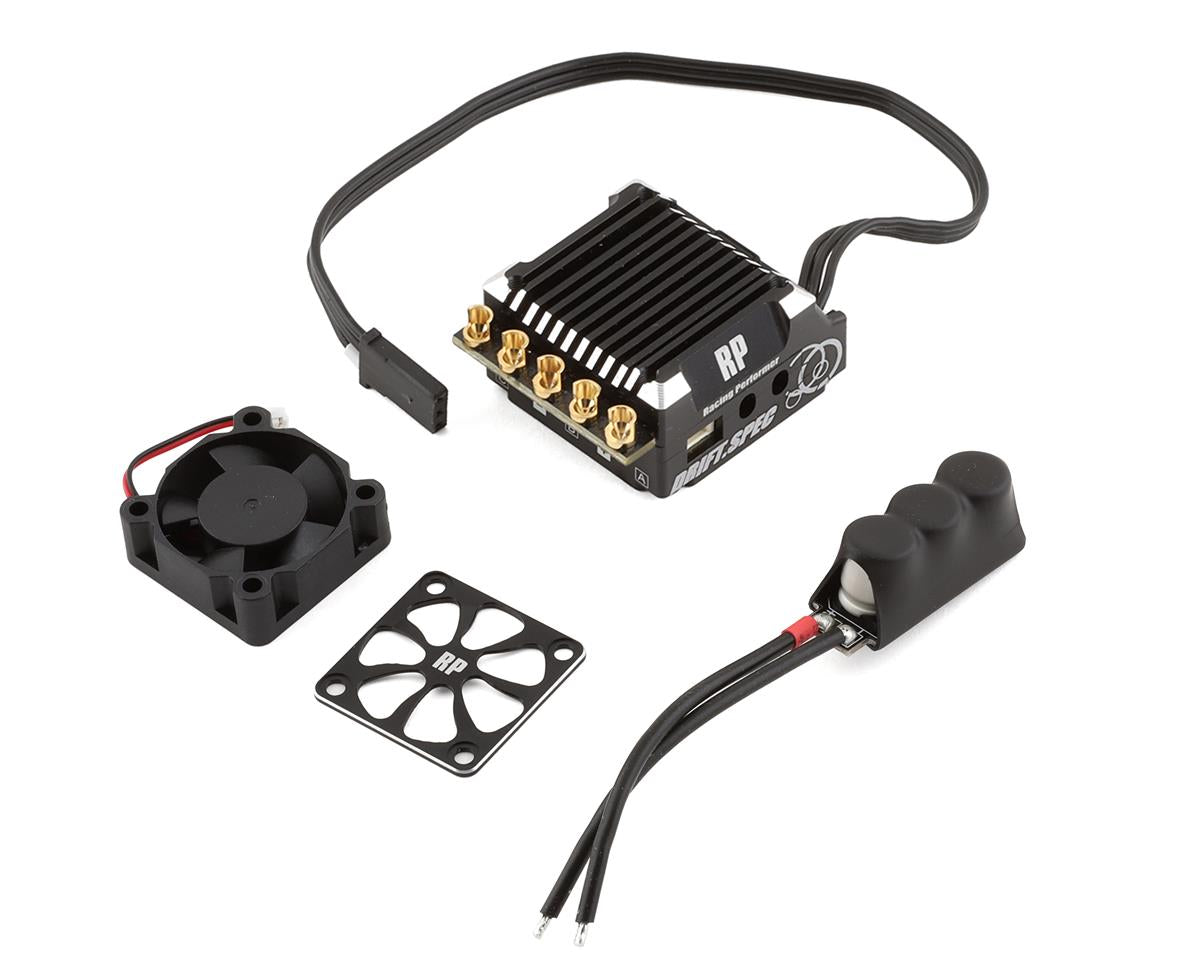

Yokomo RPX-II Drift Spec Brushless ESC Speed Controller

The Yokomo RPX-II Drift Spec Brushless Speed Controller represents the premium in ESC technology. Starting with high quality components such as a low resistance power supply and specialized FETs, Team Yokomo has created one of the most stable and powerful ESC's on the market. Optimized for driving performance it features in depth tuning options to adjust to a variety of track conditions and driver preferences.

This "Drift Spec" ESC is best suited for 2wd and 4wd 1/10 drift platforms and has been specifically tuned for drifting applications. Smooth throttle control and a multitude of power adjustments makes this ESC one of the best drift oriented options.

Changing the program settings can be done with the Yokomo Brushless Programmer (YOKBL-RPXP2), sold separately. The ESC can also be remotely programmed using the smartphone application and Yokomo WiFi Module (YOKBL-WMA).

Features:

• Dedicated sensored brushless controller
• Programmable with YOKBL-WMA Wi-Fi module or YOKBL-RPXP2 Programmer
• 49 Individual ESC programming parameters
• A multitude of boost and turbo adjustments
• Advanced brake adjustments
• Full aluminum case with cooling vent & high power 30mm cooling fan

Specifications:
Motor Type: Sensored Brushless
Motor Limit: 3.0T (specification when using the fan)
Operating Voltage: 3.7-7.4V
Forward/Brake/Reverse: Yes
Full Aluminum Case/Heatsink: Yes
Typ. Voltage Drop @20A per Phase: 0.048V
Rated Current per Phase: 249A
Plugged 30x30x10mm Fan: optional
BEC Output: 6V/7.4V 6A Linear Continuous Current
BEC Output Short Protection: Yes
"Boost 0" Mode: Yes
Multi-frequency system: Yes
Power Wires: 12 AWG
Case Size: 32.9x34.6x19.6mm (without fan)
Weight: 44g (without cables and fan)
