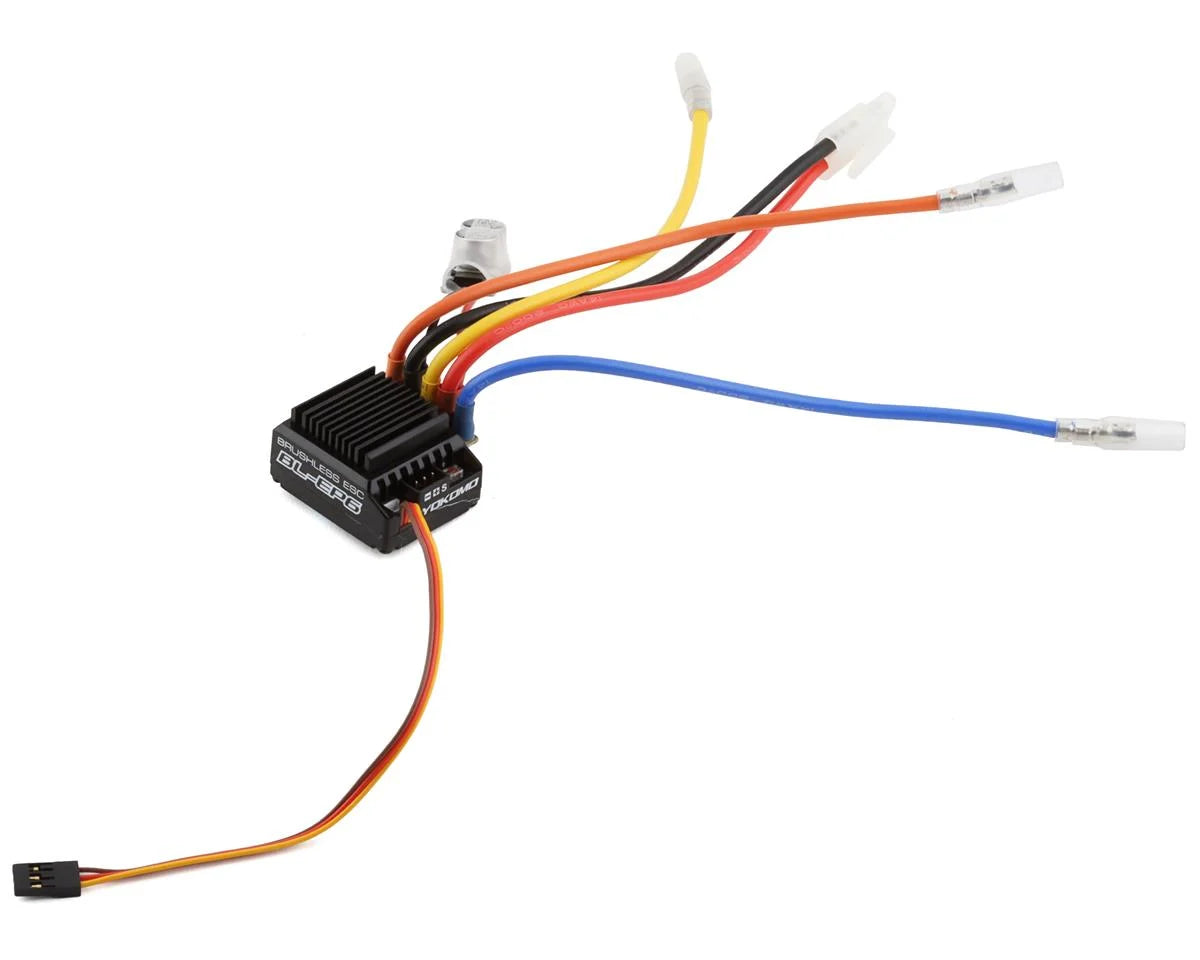

Yokomo BL-EP6 Racing Brushless Sensored/Sensorless ESC Speed Controller

Yokomo BL-EP6 Brushless Speed Controller with Programming Card

The Yokomo BL-EP6 Racing Brushless Sensored/Sensorless ESC Speed Controller is a great option for beginner and intermediate drivers. This ESC is designed for On-Road, Off-Road and Drift applications. The included programming card allows you to make quick setup changes. Package includes one ESC and one programming card.

Features:

• Great option for beginner and intermediate drivers
• Designed for On-Road, Off-Road and Drift applications
• Works with sensored and sensorless motors

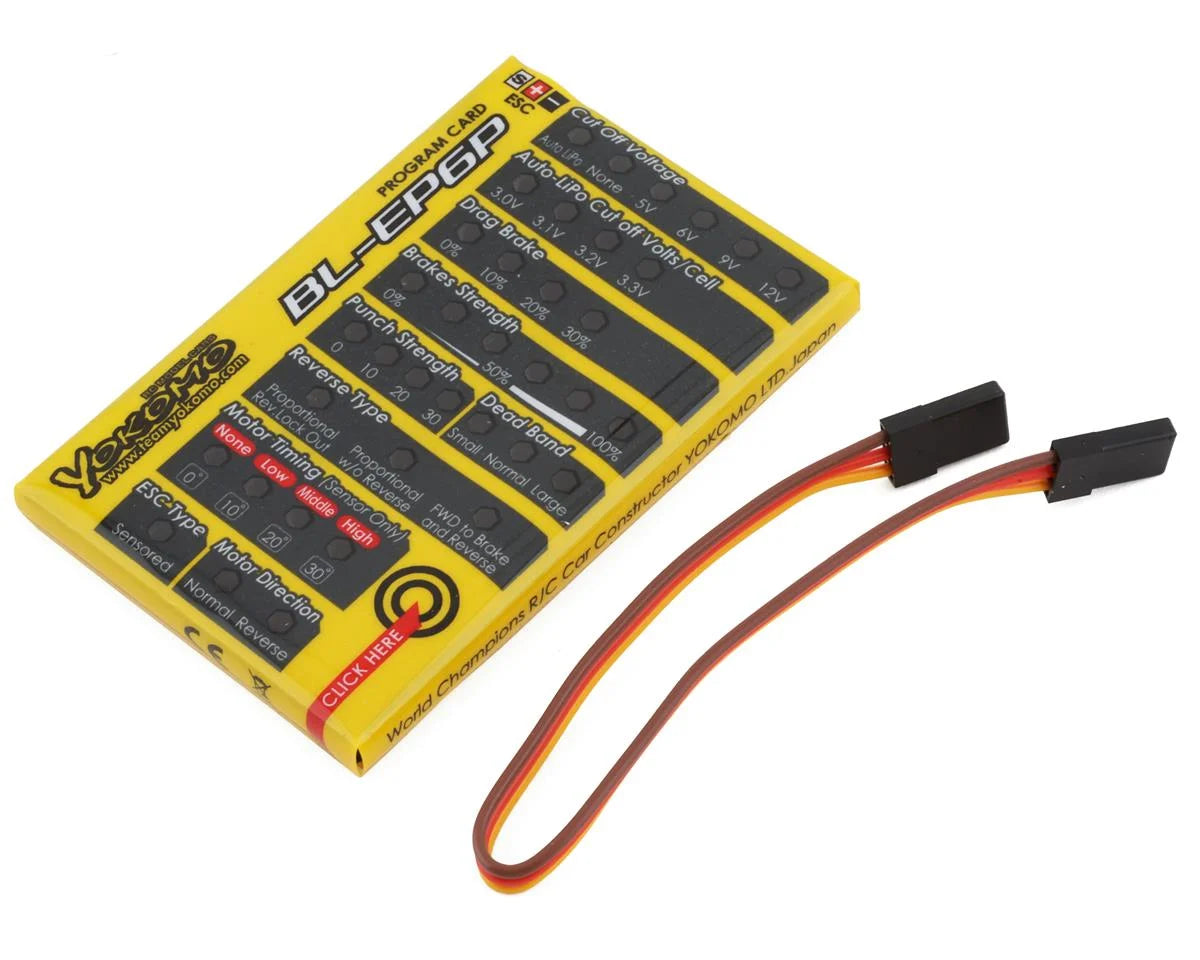

• Includes programming card

Specifications:

• Suggested Application: 1/10 Scale
• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2-3S LiPo (4-9S NiMH)
• Current:
• Continuous: 60A
• Burst: 380A
• Motor Limits:
  • 2S LiPo: 8.5T or Slower
  • 3S LiPo: 10.5T or Slower
• BEC Output:
  • Voltage: 6.0V
  • Continuous Current: -
  • Peak Current: 3A
• Connectors:
  • Motor: Female Motor Bullet
  • Battery: Tamiya
• Wire Dimensions:
  • Motor: 14AWG (165mm long)
  • Battery: 14AWG (165mm long)
  • Throttle: Servo Wire (185mm long)
• Dimensions (LxWxH): 1.53x1.49x0.78" (39x38x20mm)
• Weight: 30g
• Programming: Programming Card
