The timing has been permanently set to 0 degree. With the identical competition motor, this ensures that every driver will have the same power system and have a equal race.
The built-in capacitor avoids the trouble of finding installation position for the external capacitor module, saves space and is convenient for layout;
The built-in reverse connection protection circuit prevents damaging ESC due to reverse connection of battery.
The innovative capacitor overheat protection function can avoid the capacitor explosion caused by overload and damage the ESC.
Multiple protections: battery low-voltage cutoff protection, over temperature protection, fail safe (throttle signal loss protection) and motor lock-up protection.
Supports multi-function LCD program box pro and OTA programmer to set parameters of ESC, which is convenient for outside use.
Supports firmware upgrade of ESC (Multi-function LCD program box pro or OTA Programmer need to be purchased), Enjoy the latest features.
Supports various RPM limit values to meet the needs of different races. It can be set directly by the program box pro or OTA programmer.
Supports firmware upgrade of ESC (Multi-function LCD program box pro or OTA Programmer need to be purchased), Enjoy the latest features.
Supports various RPM limit values to meet the needs of different races. It can be set directly by the program box pro or OTA programmer.

ESC Specifications:

Cont. / Peak Current: 60A / 380A
Motor Type: Sensored and sensorless brushless motor
Applications: 1/10, 1/12 On-Road and Off-Road club competition and normal training
Motor Limit: > 10.5T 3650 Motor
LiPo Cells: 2S LiPo (Only 2S)
BEC Output: 6V / 7.4V @ 4A (Switch-mode)
Cooling Fan: Powered by built-in BEC
Size / Weight: 40.9 (L) x 33.9 (W) x 32.1 (H) / 75.4g (including weight of wire)
Programming Port: Independent programming port

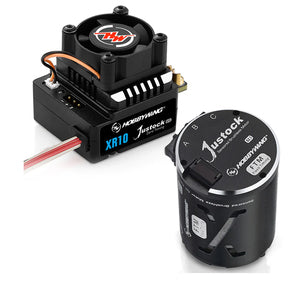

Xerun XR10 Justock G3S, JS5 17.5T G2.1 Motor Combo
