Vanquish Products: VS4-10 Fordyce Straight RTR Axle Rock Crawler (Multiple Colors available)

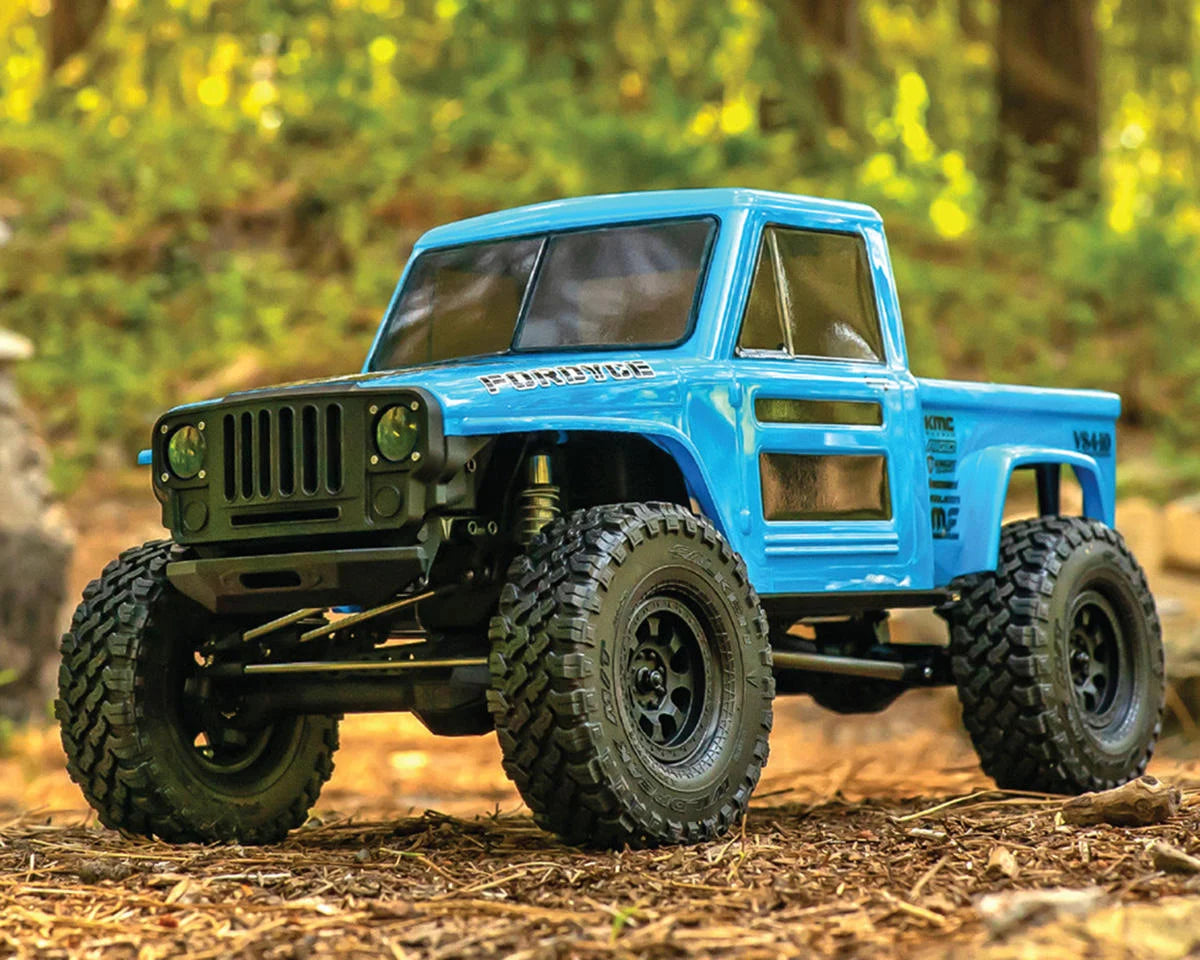

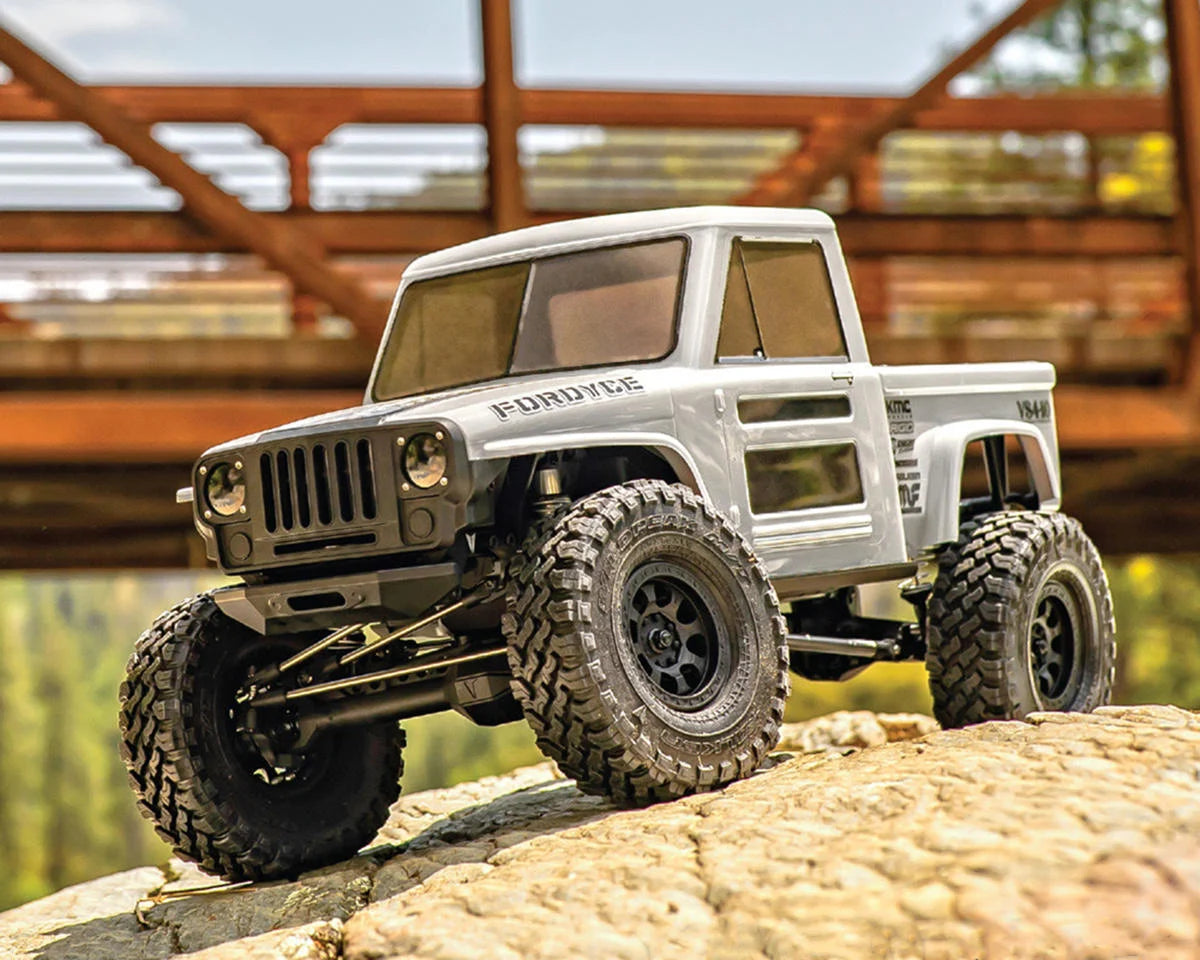

Vanquish VS4-10 Fordyce 1/10 Scale RTR Trail Truck

The Vanquish Products VS4-10 Fordyce Ready-to-Run (RTR) Straight Axle Rock Crawler is a masterpiece built upon a proven chassis and given a striking retro-inspired bodyshell. The drivetrain boasts the Vanquish Products VFD Spec Transmission paired with molded F10 axles, ensuring a robust foundation. Propelled by a brushed 35T VM-1 Motor and equipped with a VE-1 3S capable ESC, complete control and an extraordinary scale movement experience are at your fingertips. Incorporating cutting-edge technology and precision engineering, the Vanquish VS4-10 Fordyce Ready to Run Rock Crawler stands ready to deliver unparalleled off-road performance and excitement.

Fitted with the desired VFD Spec transmission and steadfast F10 Straight Axles, this proficient crawler is poised for trail-conquering adventures. An impressive 6.5% OD (Over Drive) VFD gearset, harnessed by the VM-1 Motor, delivers exceptional mastery over slow-speed maneuvers, culminating in an overall remarkable crawling performance. The F10 straight axles feature a single-unit ring gear and spool, impeccably complemented by a precision-machined pinion gear. The robust chromoly universal axle shafts allow for an impressive steering range of up to 49 degrees. Supported by comprehensive ball bearings and a 32P pinion and spur configuration to provide a seamlessly smooth and consistent drivetrain.

Facilitating the seamless connection between the VFD Spec and the F10 Axles, the Vanquish VS4-10 incorporates the state-of-the-art ISD10 driveshafts. These driveshafts boast artfully crafted CV-style joints at both ends, meticulously linked by molded splined shafts to ensure a frictionless, noise-free, and remarkably efficient performance. The incorporation of sizable 8mm bore S8E shocks adds to the suspension prowess, boasting dual X-Ring cartridges and precision-engineered threaded caps, complete with a meticulously sealed upper bleeder screw. Fine-tuning the S8E preload is effortlessly achieved through the utilization of threaded shock bodies and collars, exemplifying the system's user-friendly design.

RTR Features:

• VT-1 Digital 4 Channel Transmitter: The VT-1 provides industry leading features and tuning capabilities in an RTR. With fifteen model memory, multi-channel endpoint and rate adjustment, digital screen, and multi-position switches for the 3rd and 4th channel this transmitter is packed with features and functions to suit your needs.
• VE-1 ESC: This 3S LiPo capable ESC uses a built in BEC to power the steering servo, plus any optional extras you add. Factory tuned for your VS4-10 Fordyce RTR, the VE-1 ESC purpose built to deliver outstanding brushed performance.
• VM-1 35T Brushed Motor: Made with a closed endbell design, the VM-1 motor is specifically tuned for the VS4-10 Fordyce RTR to provide trail torque with plenty of speed to conquer the roughest terrain with confidence.
• VS-1 Metal Gear Servo: For steering, the VS4-10 Fordyce is equipped with the Vanquish VS-1 servo and boasts 200oz-in of torque. Ready for all elements the VS-1 Servo is water resistant and durable with its metal gears and 25T output spline for industry standard servo horns.
• Officially Licensed Falken Wildpeak 1.9 Tires: Vanquish engineers spent more than a year developing their proprietary sticky "red" compound and paired with the Wildpeak tread the VS4-10 RTR is comp ready. A tire upgrade is unnecessary.

Features:

• Drivetrain:
• VFD Spec Transmission
• F10 Straight Axle Housings
• Offset Pumpkin Front Straight Axle
• Centered Pumpkin Rear Straight Axle
• Universal-style front axle shafts
• Double Shear Shock Mounts
• ISD10 Driveshafts
• VFD Spec Transmission:
• Standard Overdrive 6.5%
• Slipper Clutch
• Sintered Internal Gears
• Hardened Chromoly Shafts
• Molded VFD Spec Extended Skid Plate for Motor Protection
• Molded Battery and Electronic trays
• Full ball bearing transmission
• Scale Molded Transmission Housing
• Molded 6mm motor plate
• 32P 56T Spur and 13T Steel Pinion
• F10 Straight Axles:
• Molded Axle housings
• Universal Style Axle Shafts
• 49 Degrees of Steering
• High Caster reinforced C-Hub
• High-Pinion Hypoid Machined Axle Gears (30/8)
• 5mm Output shafts with M4 wheel nut
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position
• Scale removable third member
• Machined aluminum red anodized rear fill cap with molded install tool
• Chassis:
• Heavy Duty High Clearance Steel C-Channel Frame Rails
• Molded Front Inner Fenders with integrated LED mounts
• Molded Rock sliders
• High Clearance Bumpers
• Integrated battery tray and electronic mounting positions
• Stainless Steel links
• Molded inner fenders with front body hinge and scale radiator mount
• S8E Scale 90mm Shocks
• The Incision S8E Aluminum Scale Shocks feature a larger 8mm bore for increased dampening and longer seal life
• Dual molded X-Ring lower shock cartridge provides more sealing surfaces than standard O-rings
• Threaded shock bodies allow a wide spring preload range
• Scale shock cap with steel pivot ball and bleeder screw
• Offset lower shock pivot balls allow for greater flexibility for tuning shock angles
• Polished Shock shafts
• Equipped with +5mm rod ends
• Fordyce Body:
• VRD1 Rear Cage
• 3-Piece Body Design
• Headlight and Tail Light buckets
• Molded Grille
• Hinged Design
• Hidden body clips with quick release front pivot pin
• Wheels and Tires:
• 1.9 Falken Wildpeak M/T RED Compound Tires
• Scale KMC KM237 Riot Beadlock Wheels

Specifications:

• Scale: 1/10
• Width: 9.53in (242mm)
• Front/Rear Axle Width (Pin to Pin): 7.17in (182mm)
• Height: 9.53in (242mm)
• Wheelbase: 12.32in (313mm)
• Pinion Gear: 13T
• Spur Gear: 56T
• Front Ratio: 41.3
• Rear Ratio: 44.0
• Transmission Ratio:
• Front: 2.95
• Rear: 3.15
• Rear Ratio: 50.8:1
• Axle Gear Ratio: 3.75:1
• RTR Weight: 5.9lbs (2.7kg)

Includes:

• (1) Vanquish VS4-10 Fordyce Straight Axle RTR Rock Crawler with:
• (1) VE-1 Brushed ESC
• (1) VM-1 35T Brushed Motor
• (1) VS-1 Steering Servo
• (1) VT-1 Digital 4-Channel Transmitter
• Product Manual

Needed to Complete:

• (1) 2-3S LiPo Battery or (1) 6-Cell NiMH Battery with XT60 Connector
• Compatible Battery Charger
