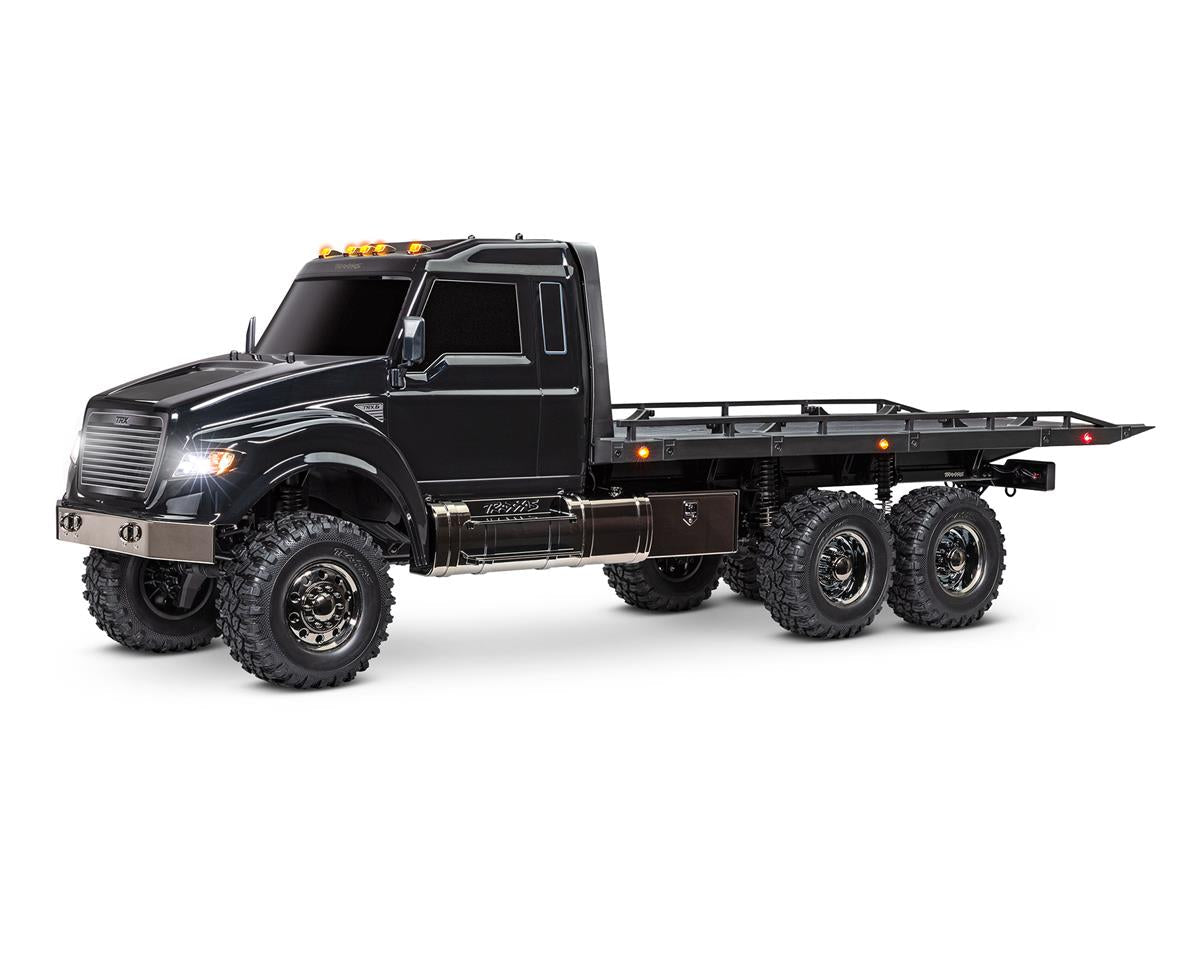

Traxxas Ultimate RC Flat Bed Hauler - Based on the TRX-6 Chassis

 The Traxxas TRX-6 1/10 6x6 Ultimate RC Hauler Flatbed Tow Truck is a great way to add scale realism to your RC adventure. Based on the extremely capable Traxxas TRX-6 chassis, this RC hauler is the biggest and baddest truck in the TRX lineup. The rear bed features adjustable wheel chocks and tie-downs to haul and display your Traxxas 4-Tec models. The included LED lighting system adds to the black over black chrome detail giving the Hauler a menacing look. Get the Traxxas Ultimate RC Flat Bed and get strapped in for the long haul.

The Hauler features a long, 23.7" (603mm) wheelbase and full time six-wheel drive! Starting off with the motor, Traxxas equipped this big rig with the Titan 21T 550 brushed motor. This motor is paired to a High-Low Transmission giving plenty of torque for climbing grade, even when fully loaded. Portal axles give plenty of ground clearance when terrain gets rough and T-Lock locking differentials aid in keeping maximum traction. Six GTS aluminum shocks deliver smooth dampening performance and a smooth ride for your cargo. The shock bodies are threaded allowing you to easily adjust spring tension to compensate for loaded and unloaded configurations.

NEW TRX-6 Ultimate RC Hauler | @Traxxas

Features:
  • Based on the extremely capable Traxxas TRX-6 chassis
  • Large rear flat bed fits the Traxxas 4-Tec chassis perfectly
  • Adjustable wheel chocks and tie-downs keep your cargo in place
  • Pre-wired LED light system
  • Detailed body and body accessories
  • Powered by a Titan 21T 550 brushed motor and XL-5 HV ESC
  • Extended 30"steel frame rails
  • Portal axles for extended ground clearance
  • Full-time shaft driven 6-wheel drive
  • Aluminum GTS shocks come oil filled for out of the box performance
  • Two speed high-low transmission
  • Chassis Mount 2075X servo
  • 2.2" Canyon RT All-Terrain Tires are mounted to 2.2" Big Rig Wheels
  • Includes TQi 2.4GHz 4-channel transmitter
Specifications:
  • Length:
    • Overall: 37.5 inches (953 mm)
    • Chassis: 34.0 inches (863 mm)
  • Track Width:
    • Front: 9.8 inches (245 mm)
    • Rear: 9.8 inches (249 mm)
  • Ground Clearance: 3.14 inches (80 mm)
  • Weight: 10.7 pounds (4.83 kg)
  • Overall Height: 11.9 inches (303 mm)
  • Wheelbase:
    • Front - Intermediate Axle: 18.6 inches (471 mm)
    • Front - Rear Most Axle): 23.7 inches (603 mm)
  • Approach Angle: 60°
  • Departure Angle: 55°
  • Breakover Angle: 57°
  • Shock Length: 3.54 inches (90 mm)
  • Battery Tray: 158.75x47x23/26mm (LxWxH)
  • Hex Size: 12 mm
  • Gear Pitch: 32P
  • Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
  • Brake Type: Electronic “Hill Hold”
  • Drive System: Shaft-Driven 6WD
Includes:
  • (1) Traxxas TRX-6 1/10 6x6 Ultimate RC Hauler Flatbed Tow Truck
  • (1) Accessory bed winch mount
  • High quality maintenance tools
Needed to Complete:
  • (1) 6-7 Cell NiMH battery or (1) 2-3S LiPo battery with Traxxas ID connector
  • (1) Compatible Traxxas Charger
  • (4) AA Batteries for Transmitter
