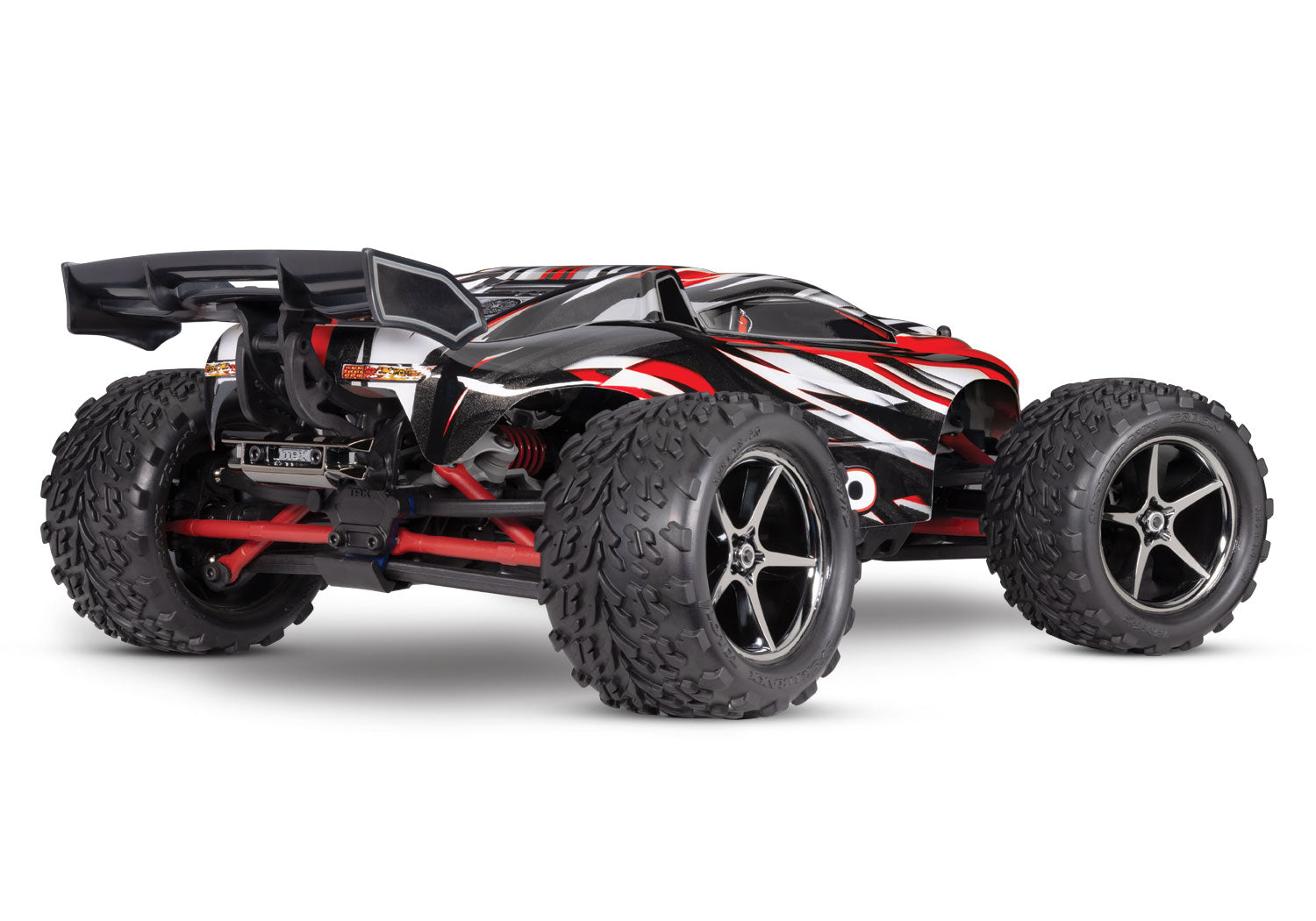

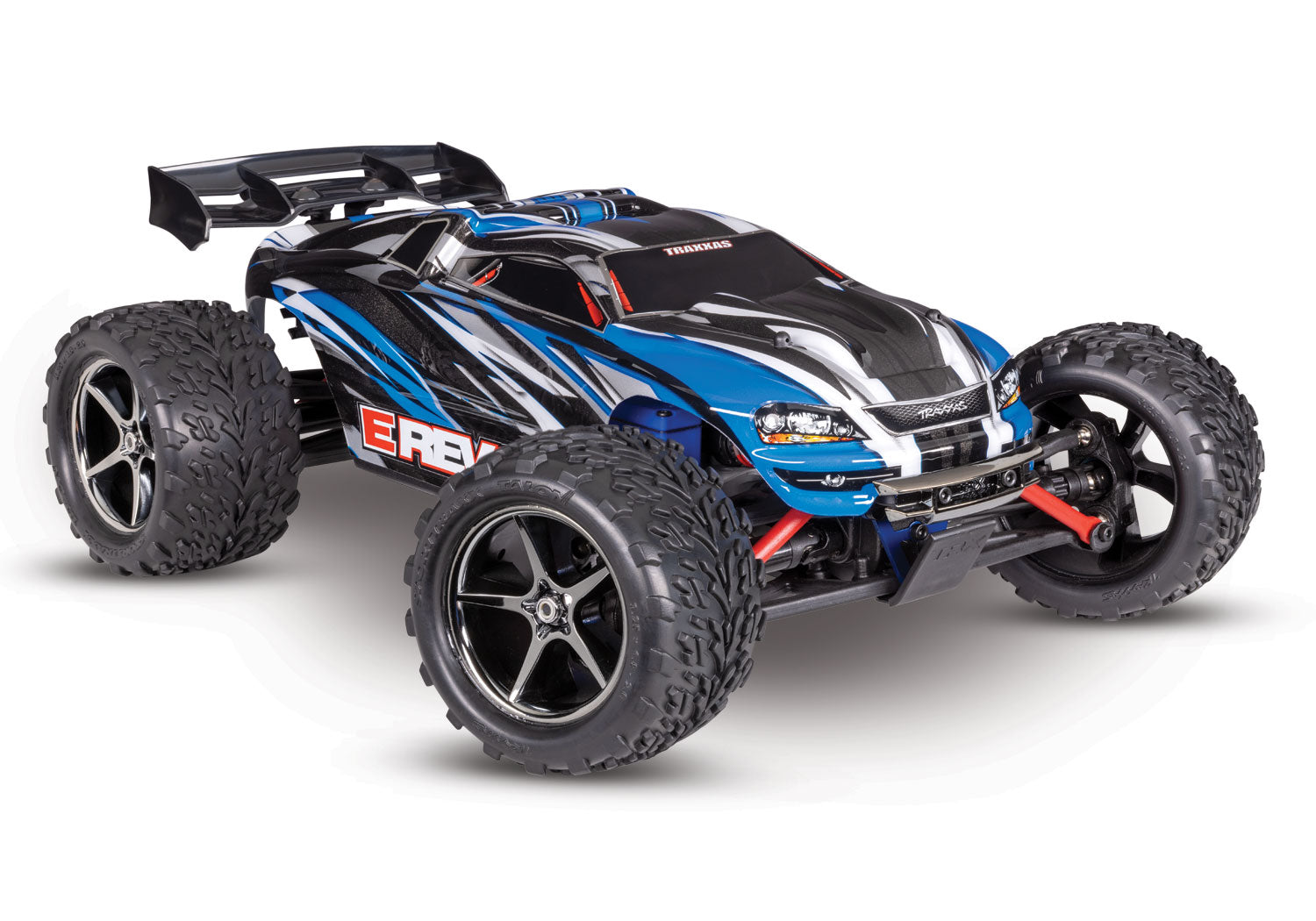

Traxxas E-Revo 1/16 4WD Brushed (71054-8)

Titan^® 12-Turn 550 Modified Motor
1/16 E-Revo includes a powerful Titan 12T 550 modified motor with internal cooling fan - an industry first for this class of truck! The Titan's oversized armature (30% larger compared to 540-sized armatures) features 12 turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent torque and high speeds run-after-run, without fading. Beyond the specs, the Titan 12T is made for rock-crushing torque, hardcore wheelie launches, explosive jumping, and just about any other 4-wheel fun that demands real horsepower.

XL-2.5 Waterproof Electronic Speed Control
Designed and engineered by Traxxas, the XL-2.5 Electronic Speed Control delivers smooth throttle control with 380-size and smaller mini-motors and is completely waterproof for all-weather RC driving fun. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 6-7 cell NiMH and 2-cell LiPo compatibility, low voltage detection, and a built-in BEC. High-frequency operation combined with ultra-low resistance make the XL-2.5 an efficient and ultra-smooth fully proportional speed control. The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support.

• Innovative waterproof design
• LiPo and NiMH compatible with two-stage low-voltage detection
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set^® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

Precision 2.4GHz Control
Switch on the power and drive! That's all there is to it with the TQ™ 2.4GHz radio system. There are no channels or frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

3-channel Micro Receiver with Fail-Safe Security
The TQ 2.4GHz micro receiver fits easily into almost any vehicle, and features dual channel-1 steering outputs. The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be set or activated.

Power Cell Series 1 NiMH Battery Pack with iD™
1/16 E-Revo comes fully assembled and Ready-To-Race^® with an iD Power Cell NiMH battery and 2-amp peak detecting DC fast charger. This potent pack features heavy-duty construction, 16-gauge wires and Traxxas' exclusive patented High-Current Connector for efficient power transfer, run after run. Everything you need to power-up is in the box. Accessory Traxxas iD chargers (sold separately) auto-detect Traxxas iD Power Cell batteries and automatically set and optimize charge settings for unmatched charging safety and simplicity.

Traxxas High-Current Connectors
Your Traxxas RC vehicle and battery are equipped with the Traxxas iD High-Current Connector*. Designed to handle high-current applications and funnel maximum power to your vehicle’s electronics, the Traxxas iD High-Current Connector also enables the charger and battery to communicate. This means optimum charge settings specific to your battery for quicker, safer, more complete charging and extended battery life. Traxxas iD High-Current Connectors let you get the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.

Traxxas 2-amp DC Peak Detecting Fast Charger!

1/16 E-Revo includes a 2-amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.

Dual Battery Compartments
The chassis' dual battery compartments let you add a second NiMH battery pack and Traxxas parallel connector (both sold separately) to nearly double 1/16 E-Revo's run time for even more off-road adventure between charges.

Ball-Bearing Transmission with Slipper Clutch
1/16 E-Revo's high-efficiency, heavy-duty transmission provides full-throttle fun with precision ball bearings and high-strength gears. An adjustable slipper clutch lets you tailor power delivery to suit the terrain and your driving style, and turns every watt of Titan power into pure performance.

Sealed Silicone-Filled Differentials
An industry first! Only Traxxas offers the superior power-handling and tuning capability of sealed differentials in 1/16 scale. The heavy-duty, steel-gear diffs are factory-filled with premium silicone fluid to prevent unloading and maintain maximum traction and control.

Pivot Ball Suspension
The E-Revo's pivot-ball suspension provides smooth suspension articulation and easy adjustment. Rubber-sealed ball bearings ward off dirt and increase precision while reducing friction and maximizing durability. For extra security, the heavy-duty axle carriers capture the universal-joint axles' crosspins with inner bearings—another example of Traxxas' attention to every detail.

Universal-Joint Driveshafts
1/16 E-Revo features telescoping, universal-joint axles for optimum drivetrain efficiency and maximum power transfer. The true-curvilinear spline design operates freely, and the oversized U-joints set the standard for strength and high-power durability.

Waterproof Electronics

Mud. Water. Snow. 1/16 E-Revo's waterproof electronics and fully sealed receiver box let you make tracks in conditions that leave other trucks parked at home. The antenna and servo wires route neatly through a special watertight seal. To protect the receiver from dust and water a custom shaped blue O-ring seals the receiver box.

Digital High-Torque Waterproof Steering Servo
Small but powerful, the 1/16 E-Revo #2080 servo cranks out 41.7 oz.-in. of tire-turning torque with digital circuitry for responsive control—even in water, mud and snow, thanks to its O-ring-sealed waterproof construction.

All-Terrain Tires & Wheels
Each corner of the 1/16 E-Revo comes wrapped in soft-compound Talon tires mounted and pre-glued onto impressive 53 mm Gemini chrome wheels. 12 mm mounting hexes open the door to additional wheel and tire combos to tune traction for specific surfaces.

Quick-Release Battery Doors

E-Revo uses an innovative solution for easy battery installation. Quick-release battery doors snap open and closed in seconds for fast and easy battery installation. There are no clips to lose in the field, and fast battery changes during pit stops let you spend more time on the trail and less time on the bench.

Battery Compartment Vents
In addition to offering entrance and exit cooling, the battery compartment vents incorporate latches that insert into the battery door clasps. The vents symbolize the sleek and high-tech image that places Traxxas 1/16 scale vehicles in a class all their own.

Oil-Filled GTR Shocks™
1/16 E-Revo's super-smooth oil-filled shocks damp the suspension and maintain control no matter how rugged the terrain. They are fully tuneable and include pressure bladders for air/oil separation and threaded spring pre-load collars for quick ride height adjustments.

Revo Suspension
A defining feature of the E-Revo, expertly executed in 1/16 scale—the unique Revo suspension places the shocks inboard on the chassis, away from dirt and debris, and amplifies the shocks' travel for incredible off-road capability without the weight of extra-long shocks.

Rubber-Sealed Ball Bearings
Precision rubber-sealed bearings offer the ultimate in low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and are virtually maintenance free.

Hex Hardware
Pro-quality, high-grade, metric hex-drive hardware is used throughout for extra strength, and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech-look and feel.

Fully Customizable With Traxxas Factory Options
Designed and engineered for lasting performance, high precision, superior durability and unbeatable style, genuine Traxxas options for 1/16 E-Revo are the perfect way tailor your truck to the track, or just add the unique touches that make it your own. From red-anodized toe links and pushrods to CV axles and hard-anodized shock bodies, Traxxas offers a wide range of performance parts for the 1/16 E-Revo.

In The Box: Fully assembled, Ready-To-Drive^®, with TQ™ 2.4GHz radio system, Titan^® 12T 550 motor, XL-2.5 electronic speed control, 7.2 volt NiMH iD battery, 2-amp DC peak detecting fast charger, and ProGraphix^® painted body.
