TALON Gigawatt V2 35A 6S 20x20 4-in-1 ESC

The Talon Gigawatt V2 4-in-1 ESC is a 6s capable ESC that has a 20x20 mounting pattern. Make a plug n' play F7 6s 20x20 stack by pairing it with the Talon F7 V2, Talon F7 Fusion, or Talon F4 Flight Controller. Despite its small size, this ESC can handle 35A cont. current (45A burst) which is enough for many 5" mini quads.

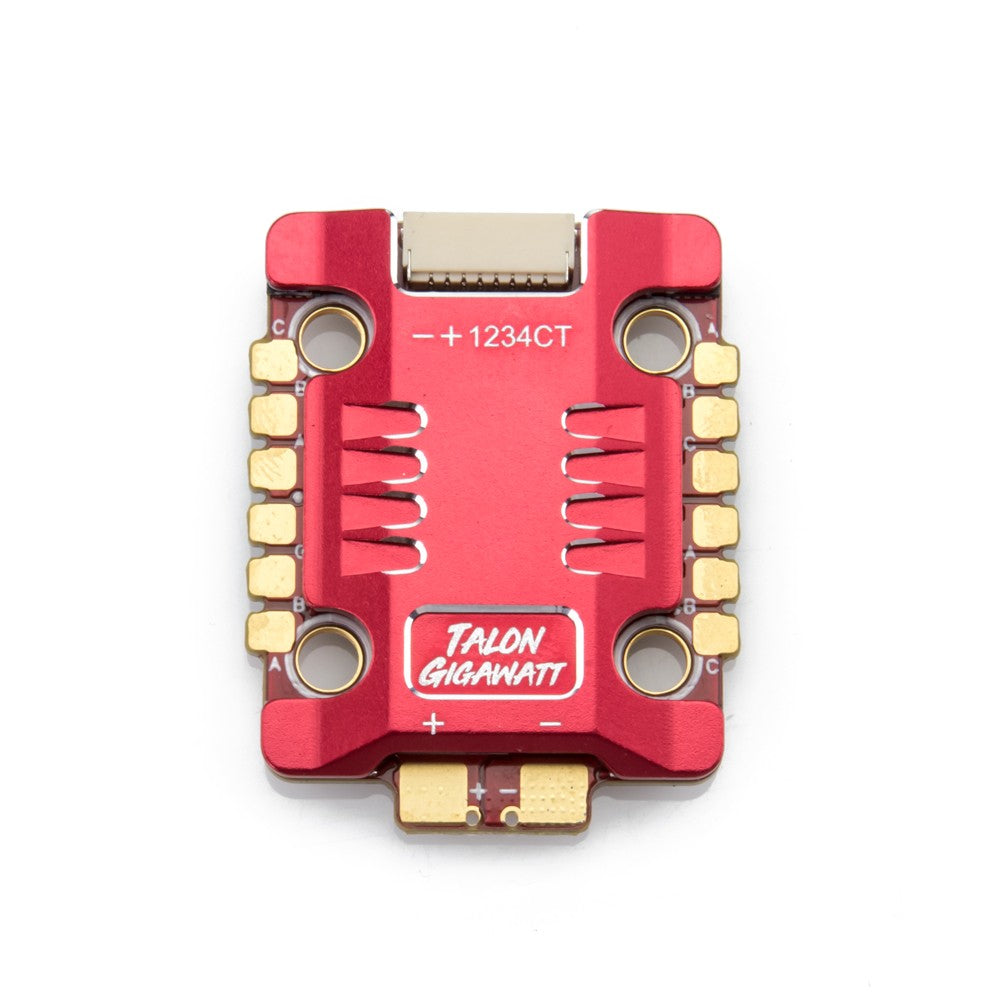

The V2 comes with a heat-sink for heat dissipation and also protection of vital components.

Features

• New aluminum heat shield to help dissipate heat
• BLHeli_32 code base
• Programmable PWM frequency of up to 48KHz
• Auto-timing for higher efficiency and reliability
• Analog Voltage/Current sensing
• Adjustable “Brake on Stop” force
• Improve direction change in Bidirectional mode
• One current sensor to measure the total amp draw and telemetry functions.
• ESC Telemetry (Voltage and RPMs and current)
• Configuring from FC using DShot commands
• Programmable sine modulation mode
• Programmable soft bidirectional mode
• Programmable autonomous periodic (every 32ms) telemetry mode
• Hardware noise filter on the signal input

Specifications

• Battery: 2-6S
• Constant Current: 35A
• Burst Current: 45A
• Mount Hole: 20x20mm
• Firmware: BLHeli32
• MCU: STM32PINF0
• Bootloader: Yes
• Weight (with/wire): 10g
• Signal Wire Lenght: 100mm
• Battery Wire Lenght: 100mm

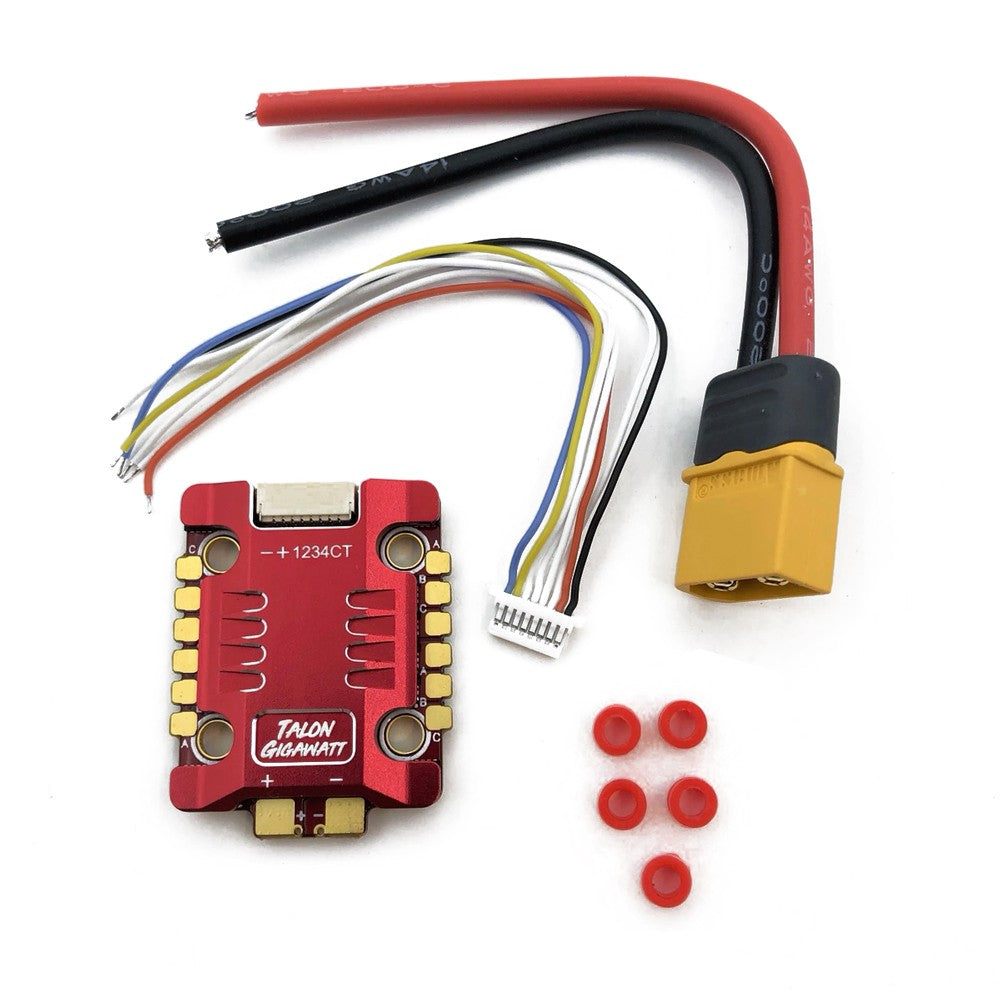

Includes

• 1 x Talon Gigawatt  4-in-1 20x20 35A 6S ESC
• 1 x 35v 330uf capacitor
• 4 x Silicone grommets
• 1 x Power/Ground Wire
• 1 x ESC cable
