T-Motor MN1806 2300Kv motor

  • Sale
  • Regular price $24.99

Shipping calculated at checkout.


The MN1806 offers exceptional power for mini multirotor platforms when using a 3S battery.

Package includes:
1 x MN1806 motor
1 x M4 prop adapter plus mounting screws
1 x M5 prop adapter plus mounting screws
1 x T-Motor CF prop cover
plus mounting screws

Specifications:

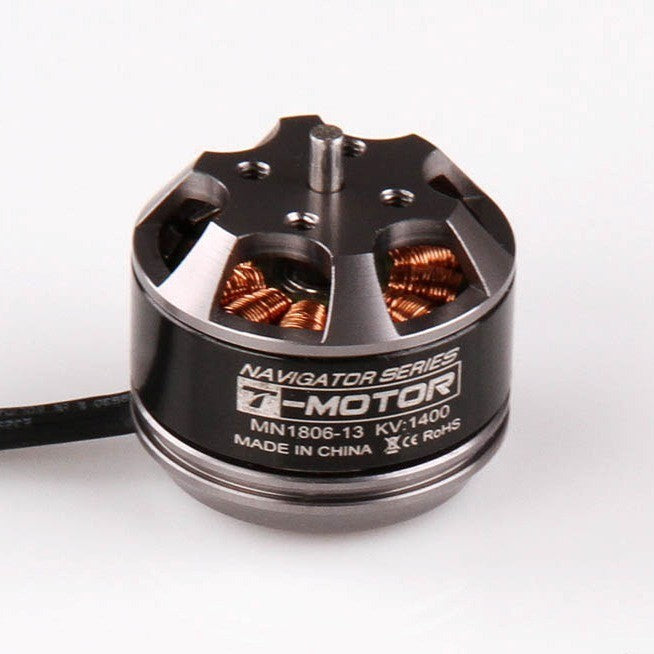

KV - 2300 (1400 shown in photo)
Configuration - 12N14P
Stator Diameter - 18mm
Stator Length - 6mm
Shaft Diameter - 2mm
Motor Dimension(Dia x Len) - Φ23×18.5mm
Weight - 18g
ldle current (10) @10v (A) - 0.6
No.of Cells (Lipo) - 2-3S
Max Continuous current (A) 180S - 14A
Max Continuous Power (W) 180S - 150W
Max. efficiency current - (3-8A)>83%
Internal resistance - 117mΩ
