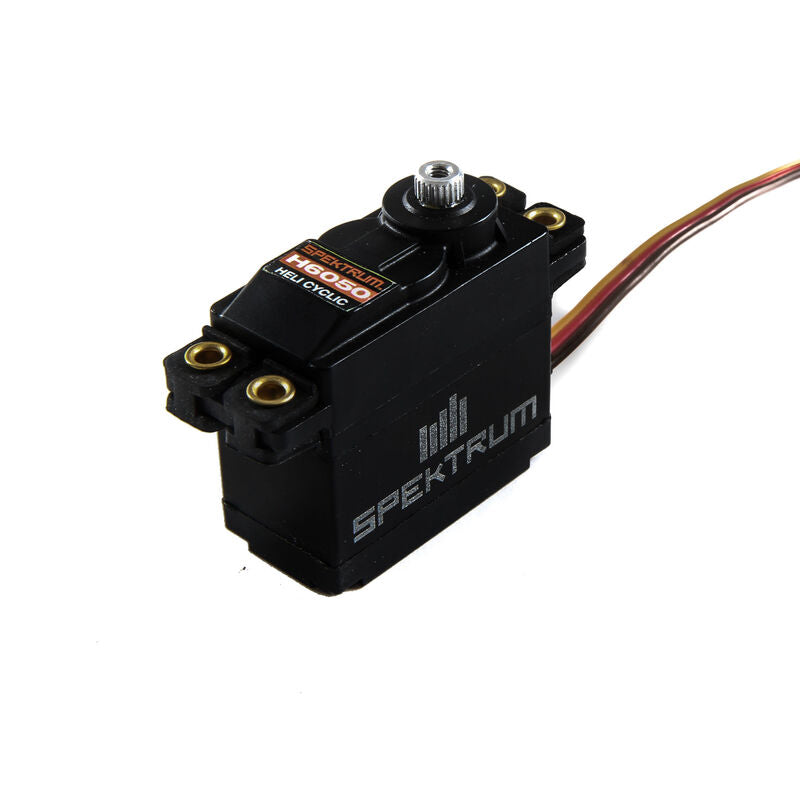

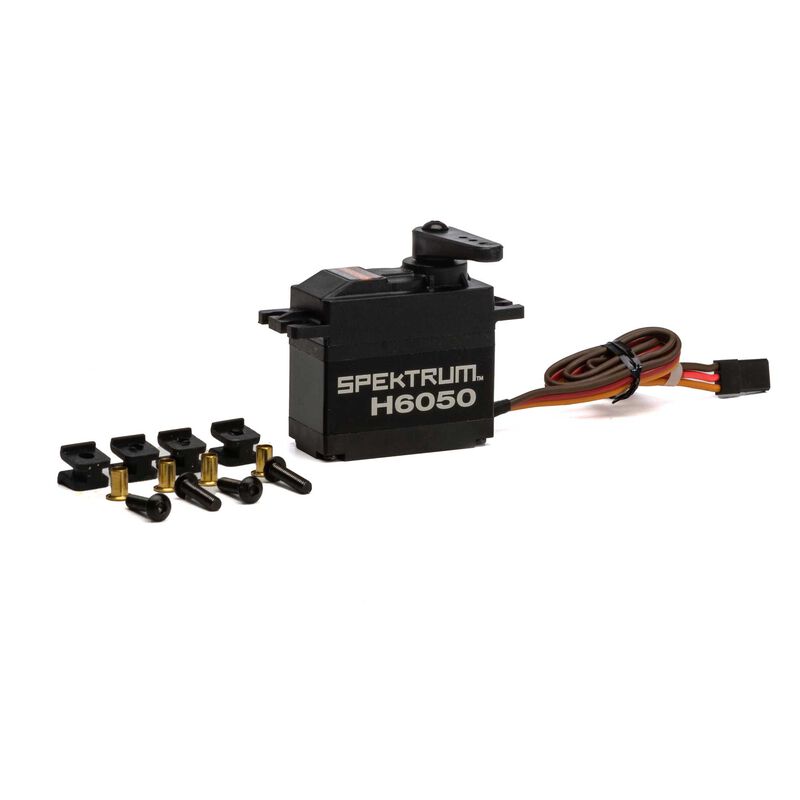

Spektrum Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo (SPMSH6050)

Key Features Standard size servo for 500 size Helicopter models and smaller 160oz Torque and .103 sec...
Availability: Out Of Stock
$69.99
$69.99
10 customers are viewing this product
Description
Description
x

Key Features

  • Standard size servo for 500 size Helicopter models and smaller
  • 160oz Torque and .103 sec speed at 6.0v
  • 4.8v-6.0v input voltage
  • Long 10 inch (255mm) connector wire to reduce the need for extensions
  • 23 Tooth spline
  • Bearing supported output spline

Overview

The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.

Product Specifications

Application Heli Cyclic
Bearing Dual
Bushing Or Bearing Bearing
Connector Type Universal
Connector Wire Length 10 in (255mm)
Deadband Less than 1?s
Gear Type Metal
Servo Speed 0.103 sec/60 deg @ 6.0V at no load
Maximum Servo Torque 100-199 oz-in
Product Height 1.51 in (38.3 mm)
Product Length 1.57 in (40.0 mm)
Product Weight 2.2 oz (62g)
Product Width 0.79 in (20.0 mm)
Programmable No
Rotation Range 120 deg
Servo Operating Voltage 4.8 - 6.0V
Servo Size Category Standard
Servo Type Digital
Torque 160 oz-in (11.5 kg-cm) @ 6.0V
Wire Gauge 22 AWG
