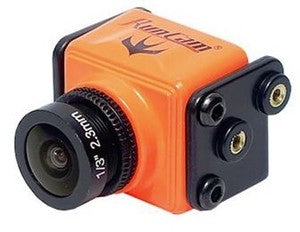

RunCam Swift 600TVL Mini FPV Camera (NTSC)2.3MM FOV150 Lens

  • Sale
  • Regular price $36.95

Shipping calculated at checkout.


Features:

  • Mini PCB size with excellent picture quality
  • Two types of camera mounting brackets
  • Super strong all metal body
  • 2.3mm lens with 150 degree FOV
  • Easy Camera settings through OSD control
  • Wide voltage input from 5 to 36V DC
  • Light weight only 12gms

Included with the Package:

  • Runcam Swift Mini 600TVL FPV Camera (FOV 150, 2.3mm) NTSC x 1
  • Aluminum bracket x 1
  • ABS bracket x 1
  • Set of screws x 1
  • 5D-OSD menu cable x 1
  • 3pin FPV silicone cable x 1
  • 2pin extension cord for menu cable x 1
  • Manual x 1



Specifications:

  • Image Sensor: 1/3" SONY Super HAD II CCD
  • Horizontal Resolution: 600TVL
  • Lens: 2.3mm
  • Signal System: NTSC
  • S/N Ration: >60dB(AGC OFF)
  • Electronic Shutter Speed: 1/60 ~ 100,000
  • AutoGain Control(AGC): YES
  • Back light compensation(BLC): YES
  • Min.illumination: 0.01Lux/1.2F
  • WDR: D-WDR
  • DNR: 2DNR
  • Day/Night Color: / Auto / B&W
  • Power: DC 5 to 36V
  • Dimensions: 22.3mm x 22mm x 27mm
  • Net weight: 12g



Note: This camera has NTSC signal output, Please check compatibility with your VTX.
