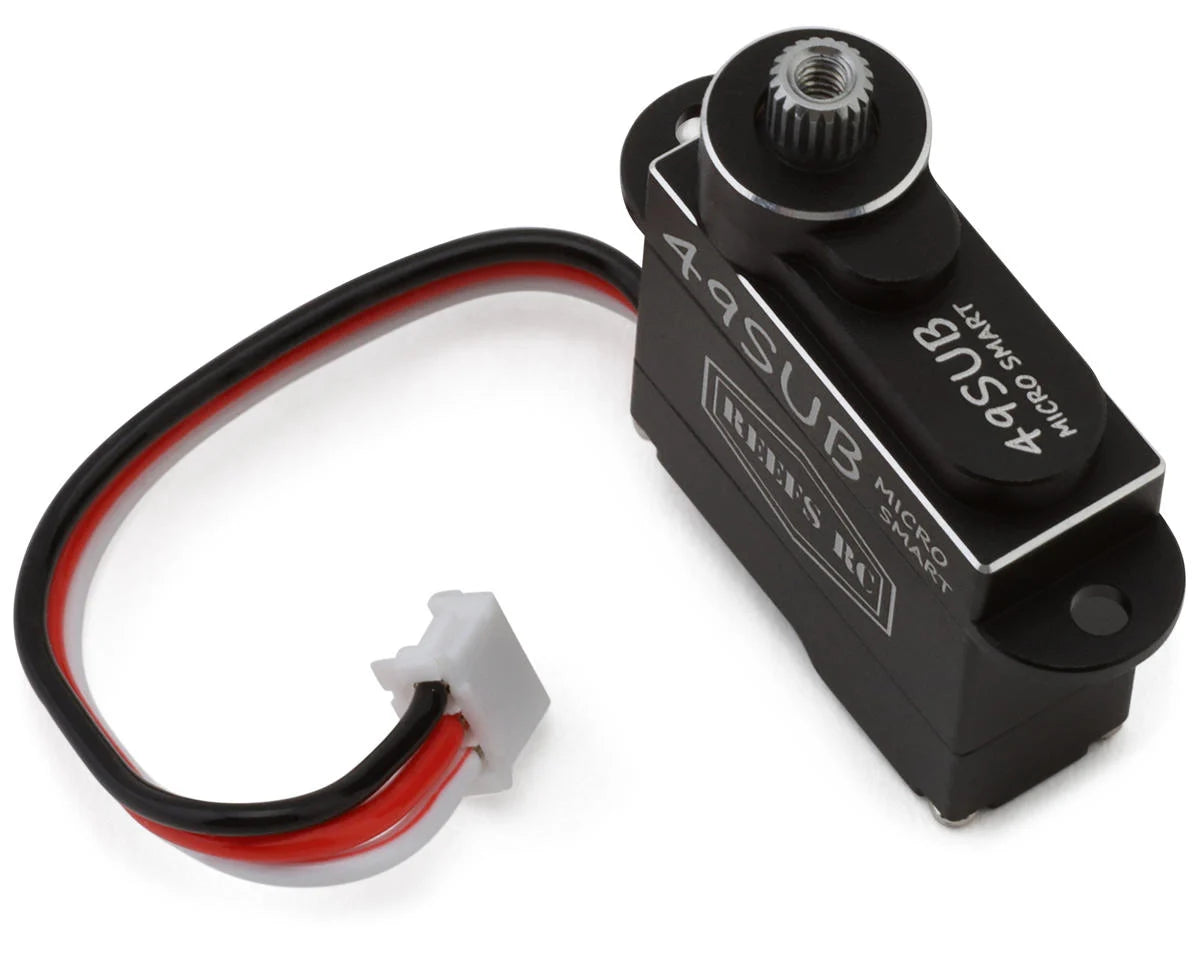

Reefs RC: 49 SUB Micro Smart Servo/Winch (SEHREEFS207)

Servo Overview:

The Reefs RC 49 SUB Micro SMART Servo is the perfect programmable micro servo that offers unmatched versatility for RC enthusiasts. This micro servo can be used as a steering servo or winch, making it an excellent choice for micro one-eighteenth and one-twenty-fourth scale rock crawlers. Its compact, lightweight design ensures seamless integration into tight spaces without sacrificing performance.

Engineered with high torque and speed, the 49 SUB Micro SMART Servo is built with precision-machined steel gears and military-grade aluminum construction for durability. Equipped with SMART Chip Technology, it delivers reliable, programmable performance tailored to your needs, with high-voltage compatibility for demanding applications.

Features:

• Hi voltage capable of up to eight point four volts
• Programmable for different uses and applications as a servo or a winch
• A great winch option for micro one-eighteenth and one-twenty-fourth rock crawlers
• All machined steel gears
• High torque and speed
• SMART Chip Technology
• All Military Grade Construction CNC-machined aluminum case
• Built-in programmed winch controller

Specifications:

• Application: Rock Crawlers
• Operating Voltage: 6-8.4V
• Speed:
• @6.0V: 0.75sec/60°
• @7.4V: 0.058sec/60°
• @8.4V: 0.05sec/60°
• Torque:
• @6.0V: 37oz-in (2.66kg-cm)
• @7.4V: 43oz-in (3.09kg-cm)
• @8.4V: 49oz-in (3.52kg-cm)
• Dimensions (LxWxH): (20x8x17.8mm)
• Weight: 7g (0.24oz)
• Operating Spline: 20T

Includes:

• (1) Reefs RC 49 SUB Micro SMART Servo
• (1) JST Adaptor
