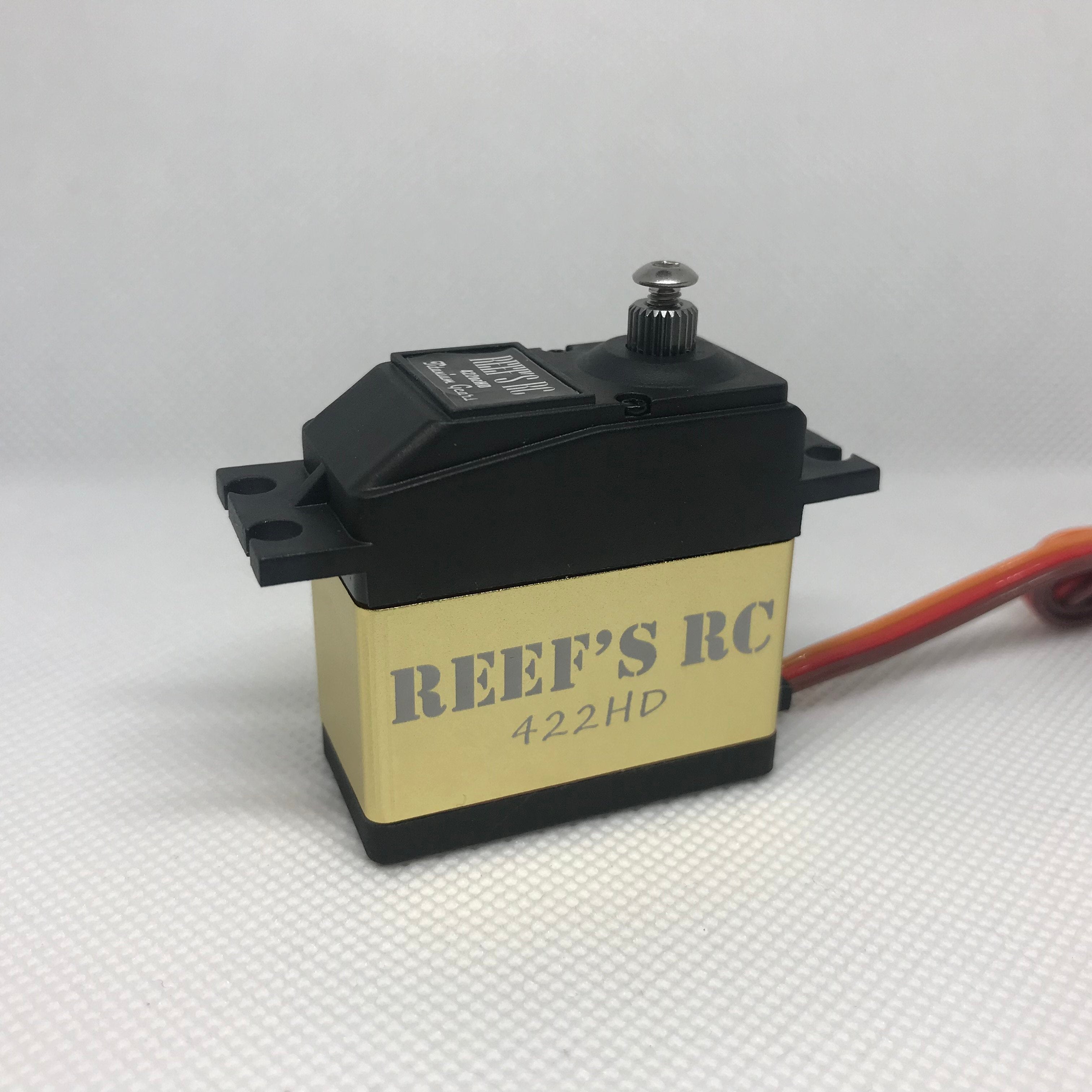

422HD High Torque Digital HV Waterproof Servo 0.12/422 @ 7.4V
Torque: 393oz @ 6.0V / 422oz @ 7.4V
Speed: .13sec @ 6.0V / .12sec @ 7.4V
Weight: 2.2oz / Dimension: 1.6x.8x1.5 (LWH)
Spline: 25T
Stall Current: 3200-40mA/6.0v, 3800-50mA/7.4V
Dead Band Width: 2us
Internal: Titanium Coated Gears / Bearing Type: 2BB
WATERPROOF: Not a Submarine
Must use a m3x10mm screw to attach the servo horn to output shaft. Use of a shorter screw can cause failure and will void your warranty.
BEC Recommended
