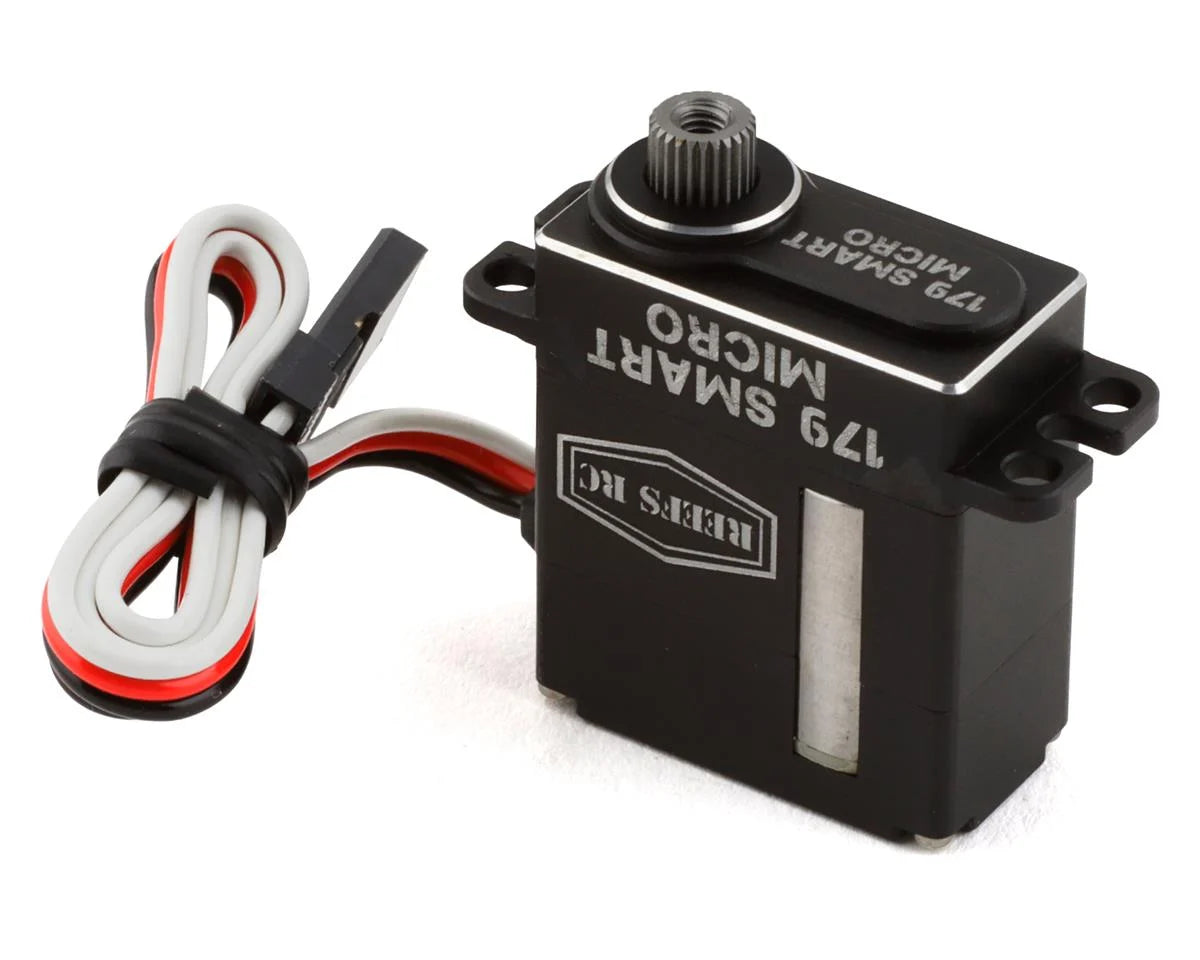

Reefs RC: 179 Smart Micro Servo/Winch (SEHREEFS129)

Product Specs Application: 1/16 - 1/18 Cars, Trucks Bearing: Dual Ball Bearing Bushing Or Bearing: Bearing Connector...
Availability: 4 In Stock
$87.99
$87.99
10 customers are viewing this product
Description
Description
x

Product Specs

Application: 1/16 - 1/18 Cars, Trucks
Bearing: Dual Ball Bearing
Bushing Or Bearing: Bearing
Connector Type: Universal
Current Draw Idle: 150mA @ 4.8V, 180mA @ 6.0V, 240mA @ 7.4V, 300mA @ 8.4V
Current Draw Stall: 1.6A @ 4.8V, 2A @ 6.0V, 2.2A @ 7.4V, 2.4A @ 8.4V
Deadband: 2µs
Maximum Servo Speed: 0.09 sec/60 deg @ 6.0V, 0.07 sec/60 deg @ 7.4V, 0.06 sec/60 deg @ 8.4V
Maximum Servo Torque: 135oz/in @ 6.0V, 159oz/in @ 7.4V, 179oz/in @ 8.4V
Product Height: 0.47" (12 mm)
Product Length: 1.08" (27 mm)
Product Weight: 0.74oz (21g)
Product Width: 0.9" (23 mm)
Programmable: Yes
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Micro
Servo Type: Digital
Spline Count: 25 - Tooth
Water-Resistant: Yes
  • High Torque High Speed
  • Servo / Winch
  • Military Grade Construction
  • Pulse Width Modulation Control
  • SMART Chip Technology
  • REEFS LINK required for Programming
  • Comes as Servo, Programming required to use as winch
  • Voltage 4.8v - 8.4v
  • Internal: Metal Gears
  • CNC Aluminum Casing
  • Sealed Bearing
  • Temp Rate: -15 Deg C~ + 70 Deg C
  • Operating Travel: 180 Deg +/- 10 Deg
  • Mechanical Angle: No Limit
  • Motor Drive: IC Drive
  • Weight: .24oz / 7g
  • Size: 20 x 8 x 17.8 mm (LWH)
  • Torque: 37oz @ 6.0v / 43oz @ 7.4v / 49oz @ 8.4v
  • Speed: .075 sec @ 6.0v / .058 sec @ 7.4v / .05 sec @ 8.4v
  • Spline: 20T 4.0mm
  • BEC Not Required, Recommended for Max Performance
