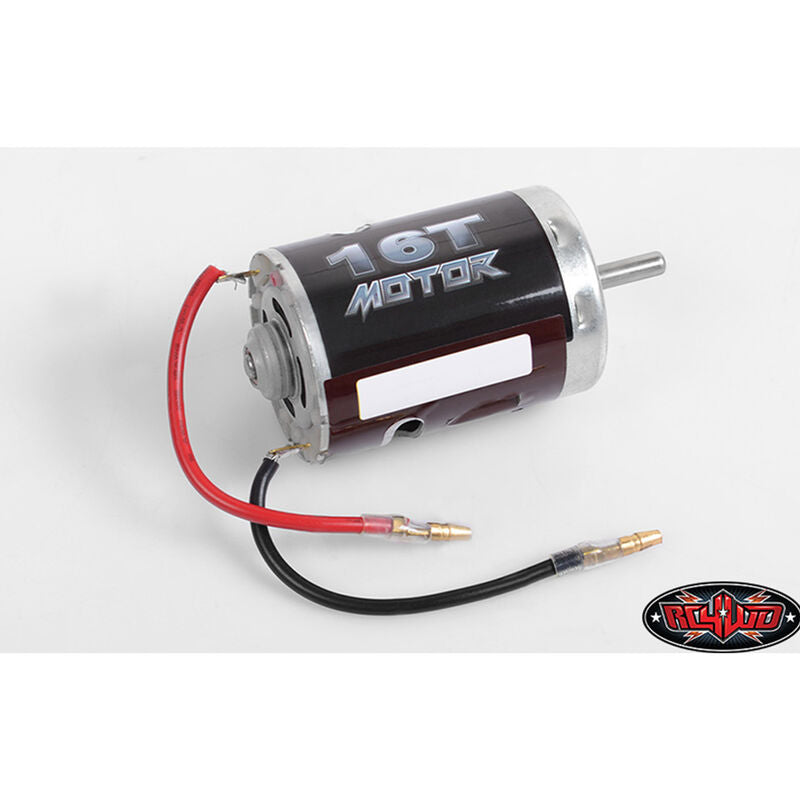

RC4WD 750 Crawler Brushed Motor, 16T: 3.5mm Bullet (RC4ZE0074)

  • Sale
  • Regular price $17.99

Shipping calculated at checkout.


Overview

Specifications:
  • Custom Made 750 Steel Case
  • Chrome Plated Case
  • Build in Capacitor for Minimizing Glitch
  • High Torque Magnet and Rotor
  • Tuned for Rock Climbing and Scale Driving
  • Body OD: 1.65 in (42mm)
  • Length: 2.36 in (60mm)
  • Output Shaft Length: 0.67 in (17mm)
  • Output Shaft OD: 0.2 in (5mm)
  • Weight: 9.52 oz (270g)
At No Load
  • Speed: 15050 RPM
  • Current: 1.88 A
At Stall (Extrapolated)
  • Torque: 2100 mN-m
  • Current: 30.8 A
At Maximum Efficiency
  • Efficiency: 56.41%
  • Torque: 416.0 mN-m
  • Speed: 12067 RPM
  • Current: 7.61 A
  • Output: 51.5 Watts
At Maximum Power Output
  • Output: 81.8 Watts
  • Torque: 1049.5mN-m
  • Speed: 7525 RPM
  • Current: 16.34 A
