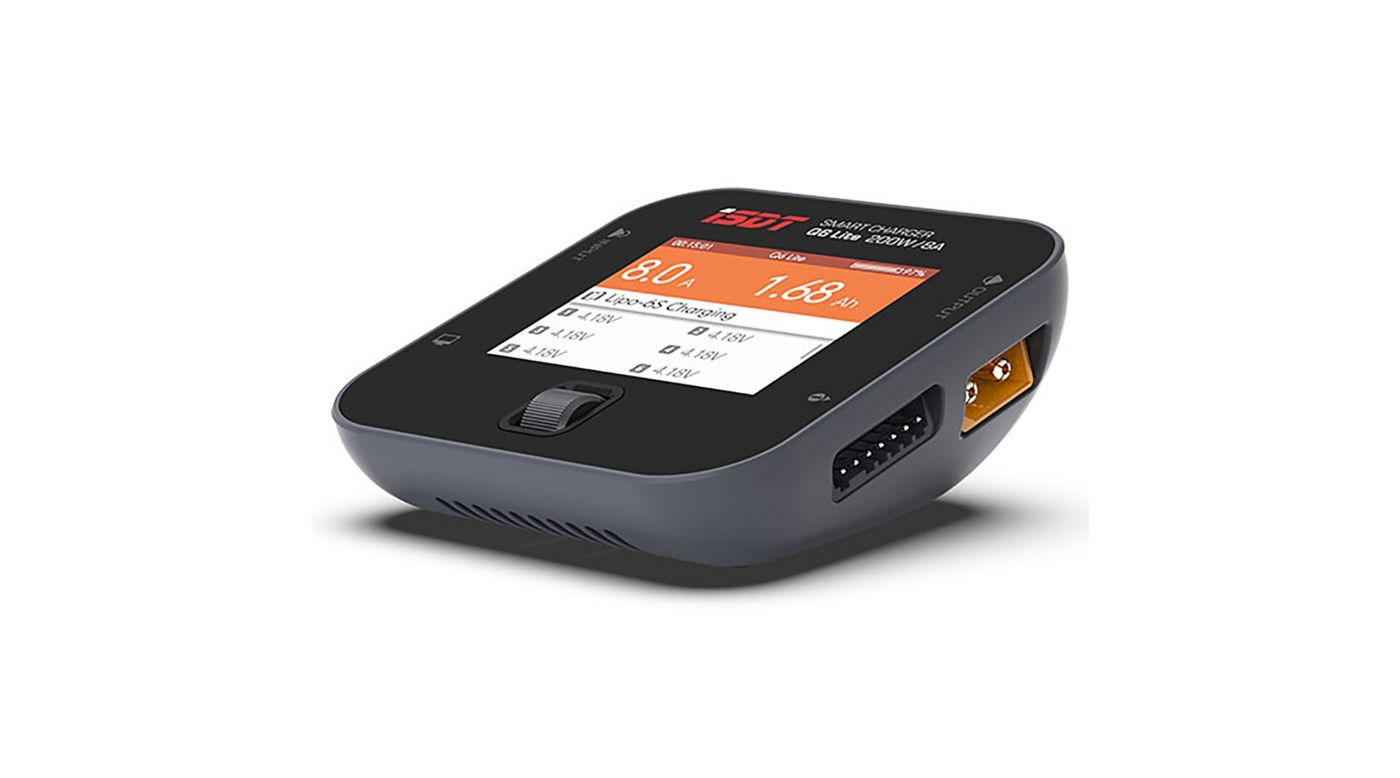

ISDT Q6 Lite 200W DC Charger

• Rounded edge design easily stows in bag or pocket
• XT60 Charge Connector
• 2.4" IPS Display
• Up to 178^° visible angle, auto-brightness screen, still visible under strong sunlight
• Highly optimized internal construction with high cooling efficiency
• High speed ball-bearing fan promotes active cooling
• ARM 32bit high speed Processor
• Instant boot (within seconds) when initialized
• One key shuttle control
• Specially designed for smart charging
• Bright, colorful, easy access set-up and status display
• Power Input
• Update Port
• Opto-Sensor
• Speed Shuttle key
• Balance Port
• Battery Port

Specifications

• Input Voltage: DC 7-32V
• Maximum Input Current: 12A
• Output Voltage: 0-30V
• BattGO^™ Support smart battery: not support
• Charge Current: 0.1-8.0A
• Discharge Current: 0.1-3.0A
• Max Charge Capacity: 200W
• Max Discharge Capacity: 5W
• Balancing Current: 0.8A/cell
• Balance Cells: 2-6S
• Color: Gray
• Supported Battery Type: LiFe/Lilon/LiPo/LiHv (1-6S)
• Supported Battery Type: NiMH/Cd (1-16S)
• Supported Battery Type: Pb (1-12S)
• Display: 2.4" 320x240 IPS LCD
• Operating Temperature: 0-40^°C
• Storage Temperature: -20-60^°C
• Dimensions: 80x80x33.5 mm
• Weight: 119g
