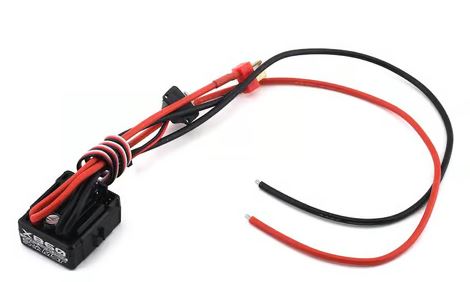

MST XB60 Brushed ESC (MXS-601013-1)

The MST XB60 Brushed ESC is a great waterproof brushed motor ESC that can be used in a variety of applications, including 1/10 on road, off road and 1.9 crawlers. Download the instruction manual from the resources tab above.

Features:

• Water-resistant and dust-proof for all weather races.
• Small size with built-in capacitor module.
• Automatic throttle range calibration, easy to use.
• Multiple protections : Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection.
• Easily programmed with the jumpers.


Specifications:

• Cont. / Burst Current: Forward : 60A / 360A  ;  Backward : 30A / 180A
• Input: 2-3S Lipo, 5-9 cells NiMH
• Applications: 1:10 on-road, off-road Buggy, Truggy, SCT, Crawler, Tank
• Motor Turns:
• 4-6cells NiMH or 2S Lipo: 540 or 550 size motor ? 8T or RPM , 45000 @ 7.2V
• 8-9cells NiMH or 3S Lipo: 540 or 550 size motor ? 8T or RPM , 30000 @ 7.2V
• Resistance: Fwd : 0.0008 Ohm, Bwd : 0.0016 Ohm
• Buit-in BEC: 5V / 2A ( Linear mode BEC )
• RWM Frequency: 1KHz
• Dimension & Weight: 36 X 30 X 18, 40g
