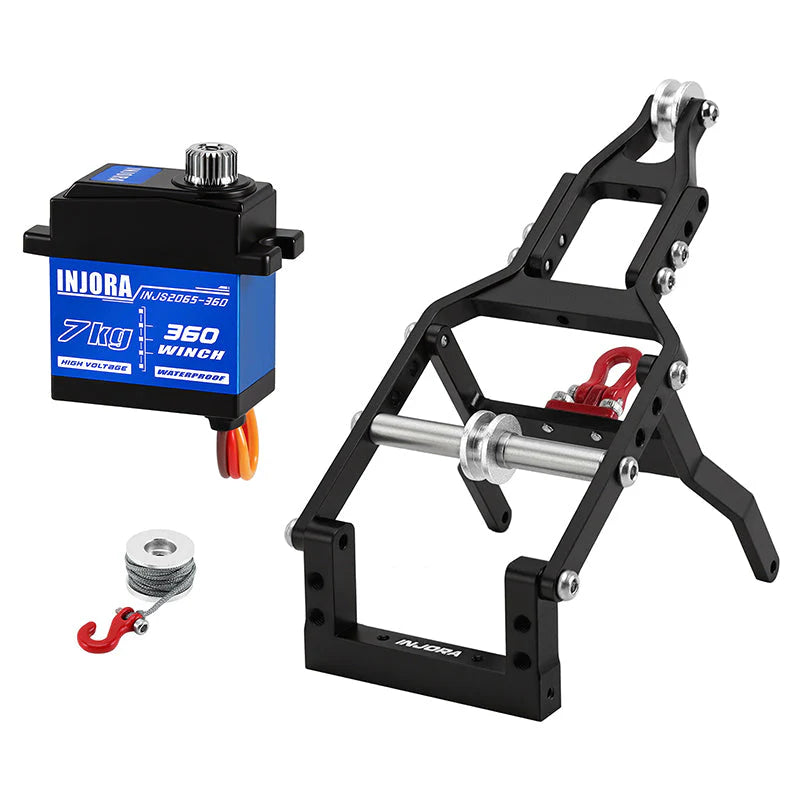

INJORA Tow Truck Crane Kit & INJS2065-360 Winch Servo for 1/24 SCX24

INJORA Tow Truck Crane Kit & INJS2065-360 Winch Servo for 1/24 SCX24

Note:

• Chassis: Compatible only with SCX24 stock chassis and INJORA Universal Chassis (SCX24-182)

• Body: Compatible with INJORA IR40-24 & IR60-24 bodies. For other bodies, ensure enough space for installation.
  Limited space after installation — adjust the electronic layout accordingly.
• Tx & Rx: Not compatible with the stock SCX24 transmitter and receiver. Your receiver must have a free channel so you can use a knob on the transmitter to control the winch servo separately.

Features:

• Powerful 7KG Torque – Strong winch servo handles tough recovery jobs with ease

• IP66 Waterproof Design – Built to perform in wet and muddy conditions

• Overload Protection – Smart current cutoff prevents damage under heavy load

• CNC Aluminum Construction – Precision machined crane offers durability and premium scale detail

• Red Tow Hook Included – Adds functionality and a bold visual touch

• Chassis Compatibility – Fits SCX24 stock chassis and INJORA universal chassis

• Body Compatibility – Perfect fit for INJORA IR40-24 & IR60-24 hard bodies

• Enhanced Visual Appeal – Instantly boosts your rig's realism and trail presence

Winch Servo Specifications:

• Part Number: INJS2065-360

• Spline: Φ5.9 25T

• Dead Band: 2μs

• Neutral Position: 1500μs/330hz

• Motor: Core Motor

• Voltage Range: 4.8V-8.4V

• 500-2500μs Angle: 360 Continuous Rotation

• Operating Speed (6.0V): 116 rpm

• Operating Speed (8.4V): 163 rpm

• Stall Torque(6.0V): 6.0 kg.cm

• Stall Torque(8.4V): 7.0 kg.cm

• Dimensions: 23*13*25.8mm

• Weight: 20g

• Connector Wire Length: JR 300mm

• Bearing: 1BB

Crane Kit Specifications:

• Part Number: SCX24-194

• Material: Aluminum

• Color: Black, Silver

• Weight: 23g

• Winch Spool: 25T

• Rope Length: Approx. 63cm
