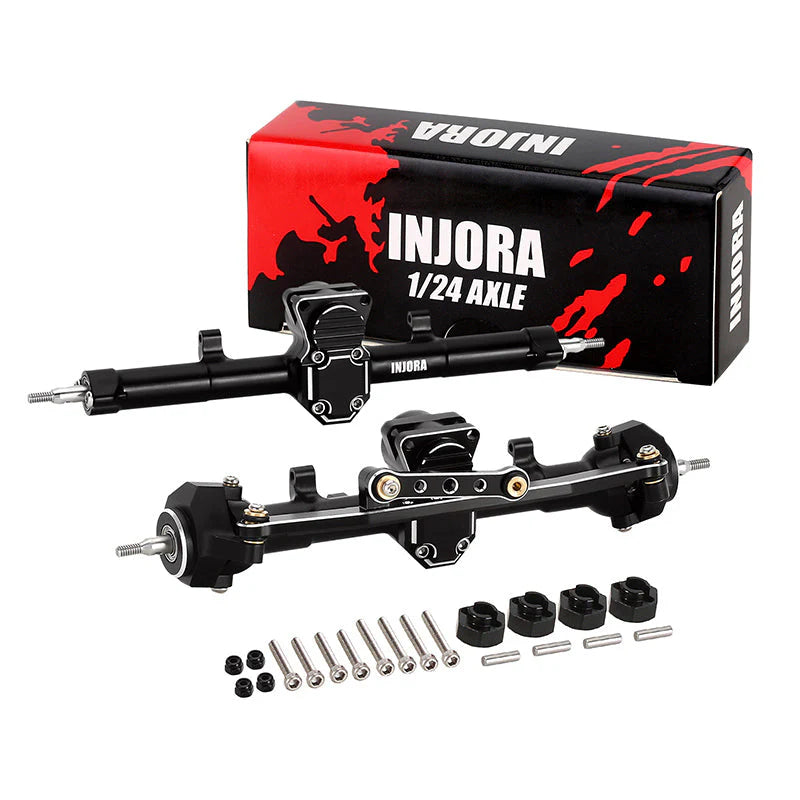

INJORA +4mm Extended Aluminum Front Rear Axles Set for Axial SCX24 (SCX24-98BKFR)

INJORA CNC Aluminum 4mm Extended Front Rear Axles Set for 1/24 RC Crawler Axial SCX24 Upgrade
Suit for all Axial SCX24 cars:

Note:

1. Compatible with both INJORA and stock SCX24 servo mounts, diff covers, gears, steering knuckles, chassis links.
2. As the axle housings are extended, so they are not compatible with original Axial scx24 size steering links and dogbone shafts.
3. These axles are not compatible with the coarse deep threaded screws on the stock shocks and steering links!
4. The rear link mount/truss is not included

+4mm axles increase the width of each side by 4mm, increase total length by 8 mm

1. Add 4mm to the track width on each side of the vehicle.
2. The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
3. This helps to increase stability over rough terrain, as well as increase steering clearance to allow a wider selection of tire options.

The front axle comes with 13T overdrive gears

• 13T overdrive gears increase speed about 23%
• Overdrive the front will pull your truck faster in the front, it allows you to climb better and reduce rollover.

Replacement Shafts and Gears: Dogbone Shafts and Overdrive Worm Gears for SCX24-98FR

Features:

• CNC Aluminum Machined
• Black & Red Anodized
• 30° Steering Angle
• Hardened Steel Dogbone Shafts & Steel Gears

Specifications:

• Housing Material: Aluminum
• Shaft & Gear Material: Steel
• Front Gear: 13T overdrive gear
• Rear Gear: 16T
• Front Axle Weight: 31g (1.09oz)
• Rear Axle Weight: 21g (0.74oz)
• Increase Overall Length: 8mm
