INJORA +4mm Aluminum Axles for 1/18 TRX4M

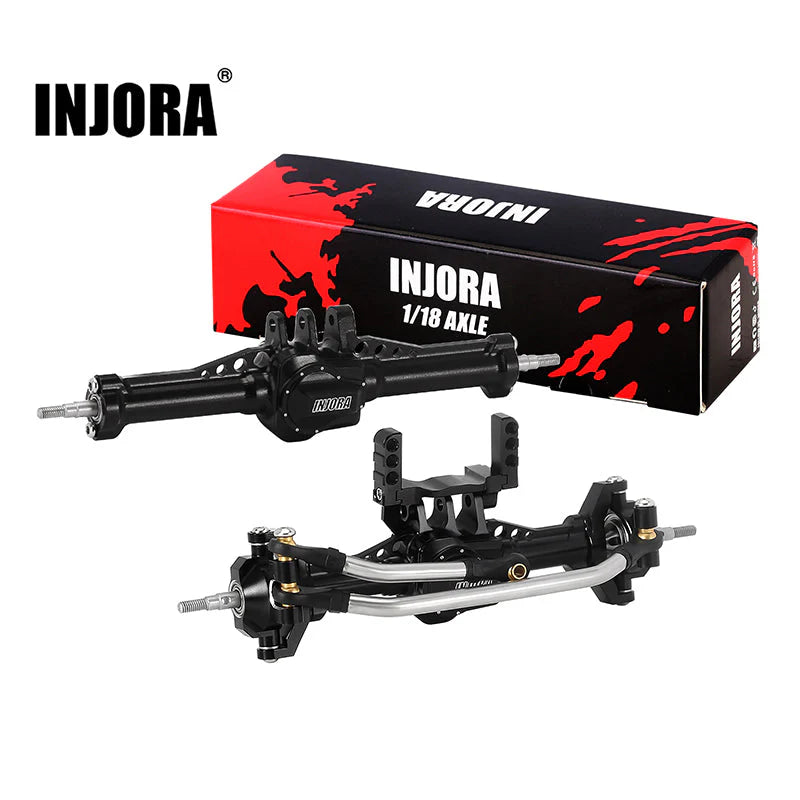

INJORA +4mm Aluminum Axles with Lay Down Servo Mount & Links for 1/18 TRX4M TRX4MT

Compatible with: 1/18 RC crawler TRX4M, TRX4MT

Note:

• Not compatible with stock TRX4M chassis as the lay lown servo mount is wider than stock.
• Not compatible with original TRX4M size steering links and dogbone shafts as the axle housings are 4mm extended per side.
• Compatible with both INJORA and stock TRX4M upgrade parts: gears, C hubs, steering knuckles, chassis links, drive shafts.
• Compatible with these servos: stock TRX4M servo,  injora 7kg servo INJS2065, injora 11kg servo INJS11
• After laying down the servo, you may need to reverse the steering: How do you reverse the servo on your TRX4m Transmitter?

Features:

• Pre-assembled complete axles. Please grease the axles before installation.
• +4mm axles increase the width of each side by 4mm, increase total length by 8 mm
• The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
• 4mm extended desgin provides better stability and climbing performance
• Come with lay down servo mount and stainless steel steering links set.
• Hardened CVD shafts and steel 12/24T gears.
• Come with 5mm(+1mm) brass wheel hexes and nuts.
• CNC machined, black anodized

Specifications:

• Housing Material: Aluminum
• Gear Material: 20CrMo Alloy Steel
• CVD Shaft Material: Hardened Steel
• Gear Ratio: 24/12=2:1 (Same as Stock)
• Total Length: 122mm (4.80in)
• Front Axle Weight: 92g (3.24oz)
• Rear Axle Weight: 42g (1.48oz)
