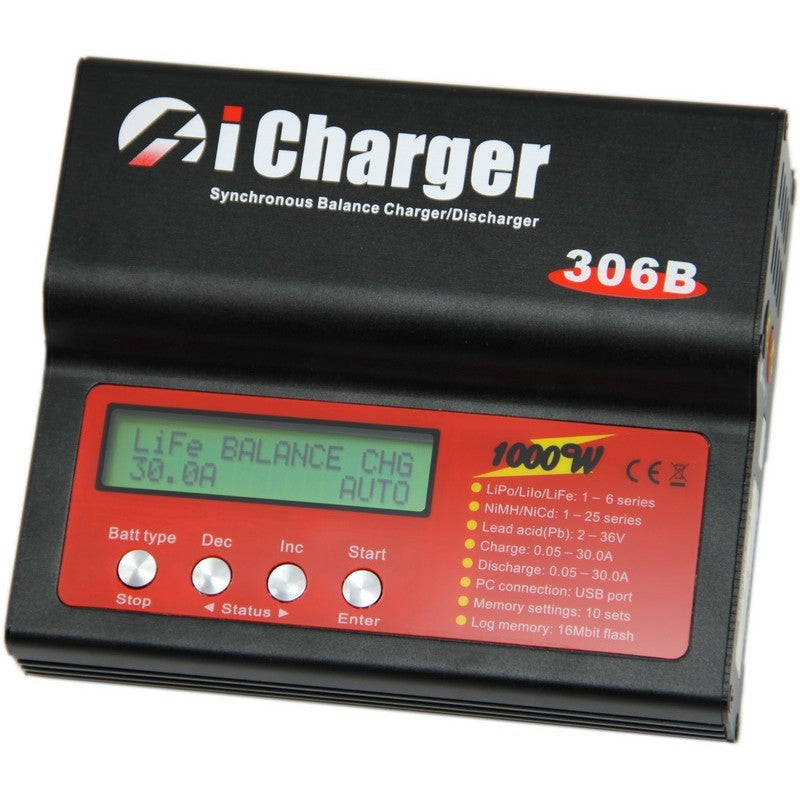

iCharger 306B 1000W 30A 6S Balance Charger

  • Sale
  • Regular price $202.99

Shipping calculated at checkout.


Specifications

  • Input voltage range: 4.50 - 38.0VDC
  • Charge current range: 0.05 - 30.0A
  • Discharge current range: 0.05 - 30.0A
  • Maximum charge power capacity: 1000W @ input voltage 23V (500W @ input voltage 12V)
  • Maximum discharge power capacity: 80W
  • Maximum regenerative discharge power capacity: 1000W
  • Maximum extern discharge power capacity: 1200W @ 40V/30A
  • Current drain for balancing: <500mA
  • Balance accuracy: <10mV
  • Lithium (LiPo/LiIo/LiFe) battery cell count: 1 - 6 series (In non-balance mode, expand LiFe to 12s)
  • NiCd/NiMH battery cell count: 1 - 25 series
  • Pb battery cell count: 1 - 18 series (2 - 36V)
  • Log Files storage: 16Mbit (31 hours)
  • Battery setup memories: 10
  • Intelligent temperature control: Yes
  • PC Connect: USB port
  • Weight: 750g
  • Dimensions (L X W X D): 143x123x46mm 5.63”x4.84”x1.81”
