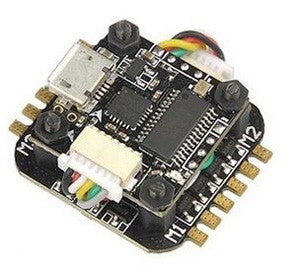

The Hyperion Super_S Flight Controller Board w/ Built-in OSD + BLHeli-S 4-in-1 ESC Combo is the smallest and lightest board specially designed for micro size drones and packed with features.
The design is rack type having a size of 20x20 with 2mm diameter mounting holes at 16x16mm, a standard now in micro class frames.
Using STM32F3CCT6 single-chip 256K flash memory, MPU6000 sensor SPI interface connection, faster computing speed and control acceleration with faster response.
Comes with default factory firmware betaflight_3.1.0_OMNIBUS, configure via OSD no PC required.
Integrated 5V / 1A BEC, 2S lipo support. (This version is 6DOF, no barometer and electronic compass)
The ESC board is BLHELI_S firmware, 4in1 design with 6A constant current and 10A peak.
Support for PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 protocols.
Support SBUS,PPM, DSMX and other mainstream receivers.
Low voltage buzzer, programming LED strip, voltage monitoring and BLHELI ESC programming via BLHELI_S suite.
Compatible for micro class frames 60-90mm size with brushless motors.
Rack design makes for neat and clean installation, no extra wires hanging.
Built in Betaflight allows configuration via OSD directly making for a quick and easy setup, ready for action!
- Small size 20x20mm with mounting holes at 16x16mm
- STM32F3CCT6 single-chip 256K flash memory
- MPU6000 sensor SPI interface connection
- Support 2S lipo power input
- Built-in 5V 1A output BEC
- Support SBUS / PPM / DSMX and other mainstream receiver
- Buzzer / programming LED / voltage monitoring / BLHELI ESC programming
- Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Built-in Betaflight-OSD
- Buzzer solder pin
- LED_STRIP connector
- Default firmware: betaflight_3.1.0_OMNIBUS
- Included with the package:
- Hyperion Super_S Flight Controller Board w/ Built-in OSD x 1
- BLHeli-S 4-in-1 ESC Combo x 1
- M2x5+5 (Nylon spacers) x 8
- M2 Nuts x 8M2 Screw x 8
- Connection wire x 1
- Flight Controller Specifications:Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
- Sensor: MPU-6000 ( connected by SPI)
- Firmware version: betaflight_3.1.0_OMNIBUS
- Built-in ESC: 5V/0.5A
- Power supply: 2S lipo battery ( 6.5V-8.4V)
- Board Size: 20x20mmMounting hole distance: 16x16mm
- Hole Diameter: Ø2mm
- Weight: 1.9g
- ESC Specifications:Firmware: BLHELI_S
- Processor: SILABS EFM8BB21F16GBEC: NODriver: 3 in 1 MOS
- Esc protocol: Dshot, Oneshot, multishot
- Input voltage: 2S, 7.4V lipoCon. Current: 6APeak Current: 10A (5S)
- Size: 25x29mm (includes solder pad)
- Mounting holes: 16x16mm, Ø2mm
- Weight: 2.2gNote: Suitable for 60-90mm mini brushless FPV Quadcopter frames.
