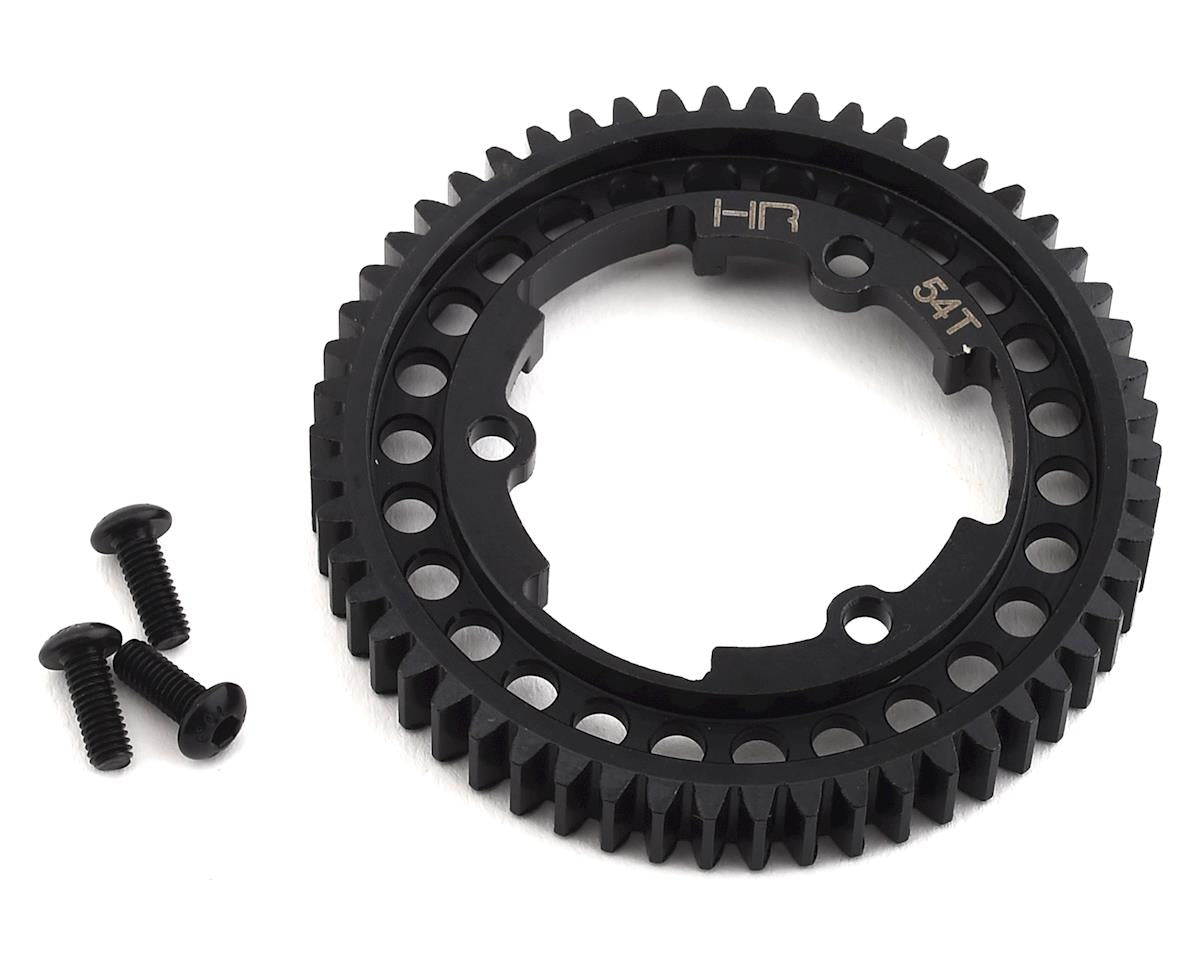

Hot Racing E Revo 2.0/X-Maxx/XO-1 Steel Mod 1 Steel Spur Gear (54T)

Hot Racing E Revo 2.0/X-Maxx/XO-1 Steel Mod 1 Steel Spur Gear (54T)

The Hot Racing hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E...
Availability: 1 In Stock
$29.99
$29.99
10 customers are viewing this product
Description
Description
x
The Hot Racing hardened steel Mod 1 spur gear is an optional upgrade for the Traxxas E Revo 2.0, X-Maxx 6S and 8S, Maxx 4S and XO-1 models. Choose from 50, 52 and 54 tooth options.

NOTE:
  • Do NOT use the pin system for setting the X-Maxx gear mesh. Instead, manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 Adjusting Gear Mesh)
  • With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
Features:
    • CNC machined hardened steel construction
    • Black oxide finished
    • Laser etched tooth count marking
    • Upgrade for factory plastic spur gear
Specifications:
Overall diameter: 52.8mm
Gear face width: 8mm



Includes:

  • One (1) mod 1 steel spur gear
