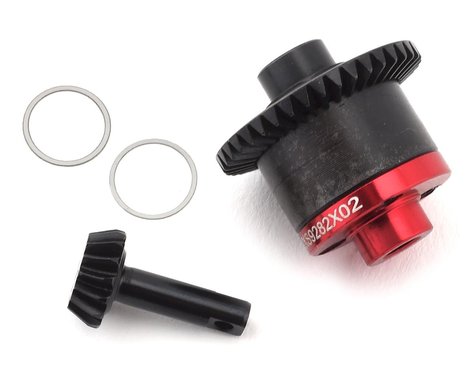

Hot Racing 1/16 Traxxas Steel Helical Spiral Gear Set w/Aluminum Cover Plate (HRVXS9282X02)

This is the Hot Racing 1/16 Traxxas Steel Helical Spiral Gear Set, for Traxxas 1/16 4X4 vehicles, including the 1/16 E-Revo, 1/16 Slash 4X4, and 1/16 Summit. This set is compatible with the front or rear differentials.

Features:

• CNC machined aluminum and hardened high carbon steel construction
• Aluminum carrier cover plate is anodized red
• Precision machined helical spiral cut gears offer inherently greater
• strength and smooth operation than the factory bevel cut gears

Includes:

• (1) steel 34T ring gear
• (1) steel 13T pinion gear
• (1) steel carrier
• (1) aluminum carrier cover plate
• (2) carrier bearing shims to use as needed

Requires:

• Two sets per vehicle
• Reuses Traxxas TRA7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential
• Installation may require shimming using the included shims for proper gear mesh. The gears should run freely without too much play and without binding.
• Use removable thread lock (e. g. blue Loctite) on carrier screws
• Differential grease

Comments:

• Does not include inner differential gears.
• Replaces Traxxas 7079 ring and pinion and 7080 carrier cover plates (except for the output shaft seal)
• Shimming the differential correctly is an important step in building the perfect differential. If needed more shims may be purchased via Hot Racing part number W8X.
