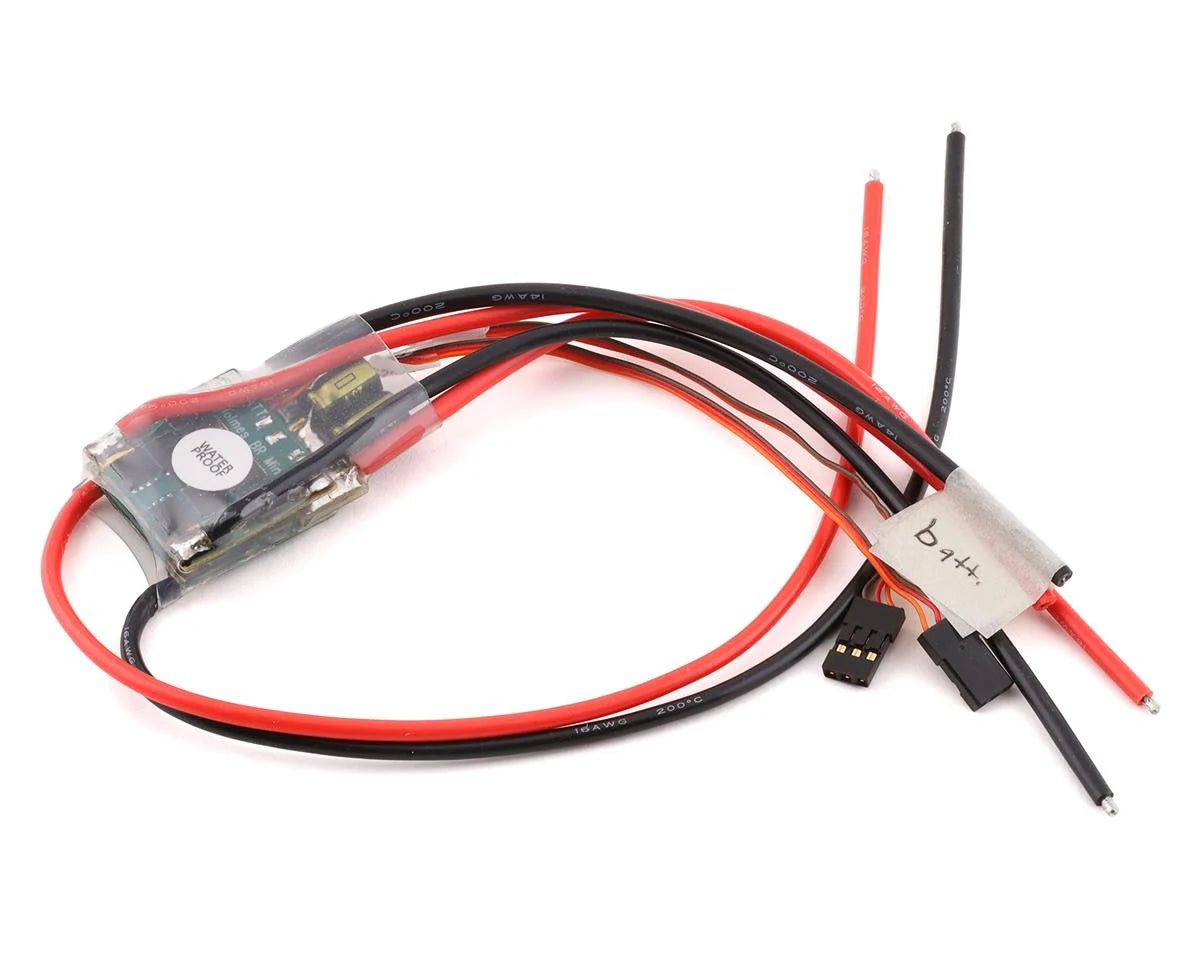

Holmes Hobbies ToruqeMaster BR Mini Dual Waterproof ESC is a high performance, competition dual output brushed motor ESC. The TorqueMaster BR Mini Dual is a miniaturized version of the BR-XL, with TWO ESC's shoe horned into one small package, making it ideal for weight conscious dual motor comp crawler rigs, scale builds, robotics, servo motor and winch use. It has been designed from scratch to meet the rigorous demands of low speed control and high torque density. Comes stock with Auto lipo LVC, Full drag brake, instant reverse, and 100% reverse throttle settings. This ESC has NO connectors installed, but has pre-tinned wires that allow you to install the motor and battery connectors you prefer.
NOTE:
Because this is not a stock replacement ESC recommended for a specific vehicle, you will need to find the system limits for your vehicle. Happy tuning!
Recommended for competitive RC Rock Crawling and Off Road Truck environments, and 30a or less (per channel) robotic use.
Features:
1 year manufacturers warranty
6v to 25v input, external BEC suggested for all installations
Waterproof construction
Brushed only
Stick and Castle Link programming compatible
Reverse and brake adjustment
Throttle and Brake curve adjustment
Regenerative Drag Brake
Active Hold Brake (The Holmes Hold!)
Quiet mode
Built with 6" of 14AWG battery wire, 8" of 16AWG front exiting wire and 10" of 16AWG rear exiting wire
Specifications: Voltage:2S-6S (6-25V DC input) BEC:6V @ 5A Continuous Current:30A Burst Current:80A Dimensions:46x34x20mm Weight:38g (with battery leads) Motor Limit:Brushed only, no 540-motor limit
