Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
The entire system has an IP67 protection grade, enabling operation in all conditions.
Intelligent torque output and speed closed-loop control ensure precise handling.
Active drag brake force adjustment provides superior holding power on inclines.
The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
Real-time parameter adjustments are possible using the transmitter's AUX channel.
Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.
The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings.
Continuous/Peak Current: 50A/150A
Main Applications: 1/10 Crawler
LiPo/NiMH Cells: 2-4S LiPo, 6-12 Cells NiMH
BEC output: 6V/7.4V/8.4V adjustable, continuous current 5A (Switch mode)
Size/Weight: 37mm (diameter) x 48.5mm (length)/178.5g (including wires & connectors)
Programming port: Independent programming port (switch position)
Motor KV: 2300KV
Diameter/Length of motor: 37mm/48.5mm
Shaft diameter/exposed shaft length: 3.175mm/16mm
Motor Poles: 4

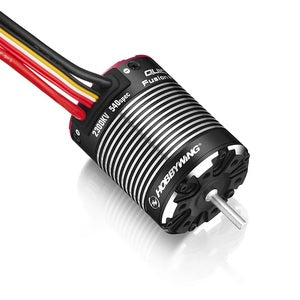

HobbyWing QUICRUN Fusion Pro Elite (2 in 1 FOC System)
