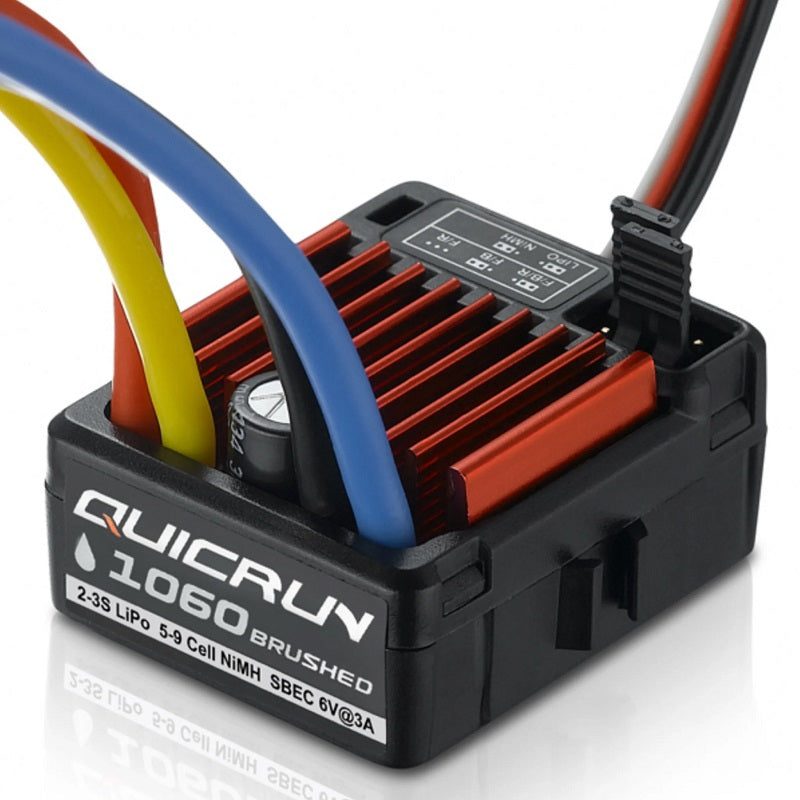

Hobbywing: QuicRun 1060 Brushed ESC SBEC T Plug (2-3S) (HWI30120203)

QuicRun 1060 Brushed ESC SBEC T Plug (2-3S)

QR1060 Suitable for 1:10 SPORT, BOAT, TANKER

This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers, and tanks.

Water-proof and dust-proof, suitable for all weather races.
Small in size, with a built-in capacitor module.
Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set with jumpers.

Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection.

Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America

Fwd Cont. Current / Peak Current / Resistance: 60A/360A/0.001O
Rev Cont. Current / Peak Current / Resistance: 30A/180A/0.002O
Motor Type Supported: Brushed Motor
Car Applicable: 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Suitable Battery
Brushed Motor Limit
For 2S LiPo or 6 cell NiMH:
540 or 550 Size Motor: >12T,
Or RPM<30000 @7.2V

For 3S LiPo or 9 cell NiMH:
540 or 550 Size Motor: >18T
Or RPM< 20000 @7.2V

BEC Output: 2A/5V (Switch Mode)
PWM Frequency: 1KHz
Size/ Weight: 35.5(L)*32.18(W)*18(H) / 39g
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Cooling Fan: No need
Input Connection: T-Plug
