Hitec Y-Harness 6": JR/RCD (HRC37950S)

Features G2 Digital Circuit Titanium Gear Train (MK first gear) Ultra Performance Coreless Motor Heatsink Case (8)...
Availability: Out Of Stock
$115.99
$115.99
10 customers are viewing this product
Description
Description
x

Features

  • G2 Digital Circuit
  • Titanium Gear Train (MK first gear)
  • Ultra Performance Coreless Motor
  • Heatsink Case
  • (8) O-Rings for Water/Dust/Fuel protection
  • Dual Ball Bearing Supported Output Shaft
    *** Programmable Features Include: ***
  • Dead Band Width
  • Direction of Rotation
  • Speed of Rotation (slower)
  • End Points
  • Neutral Points
  • Fail Safe On/Off
  • Fail Safe Point
  • Resolution* (default is high resolution)
  • Overload Protection* (default is off)
  • *These features are only programmable with the HFP-20 (#44430), HPP-20 or HPP-21 (#44440) programmers.

Overview

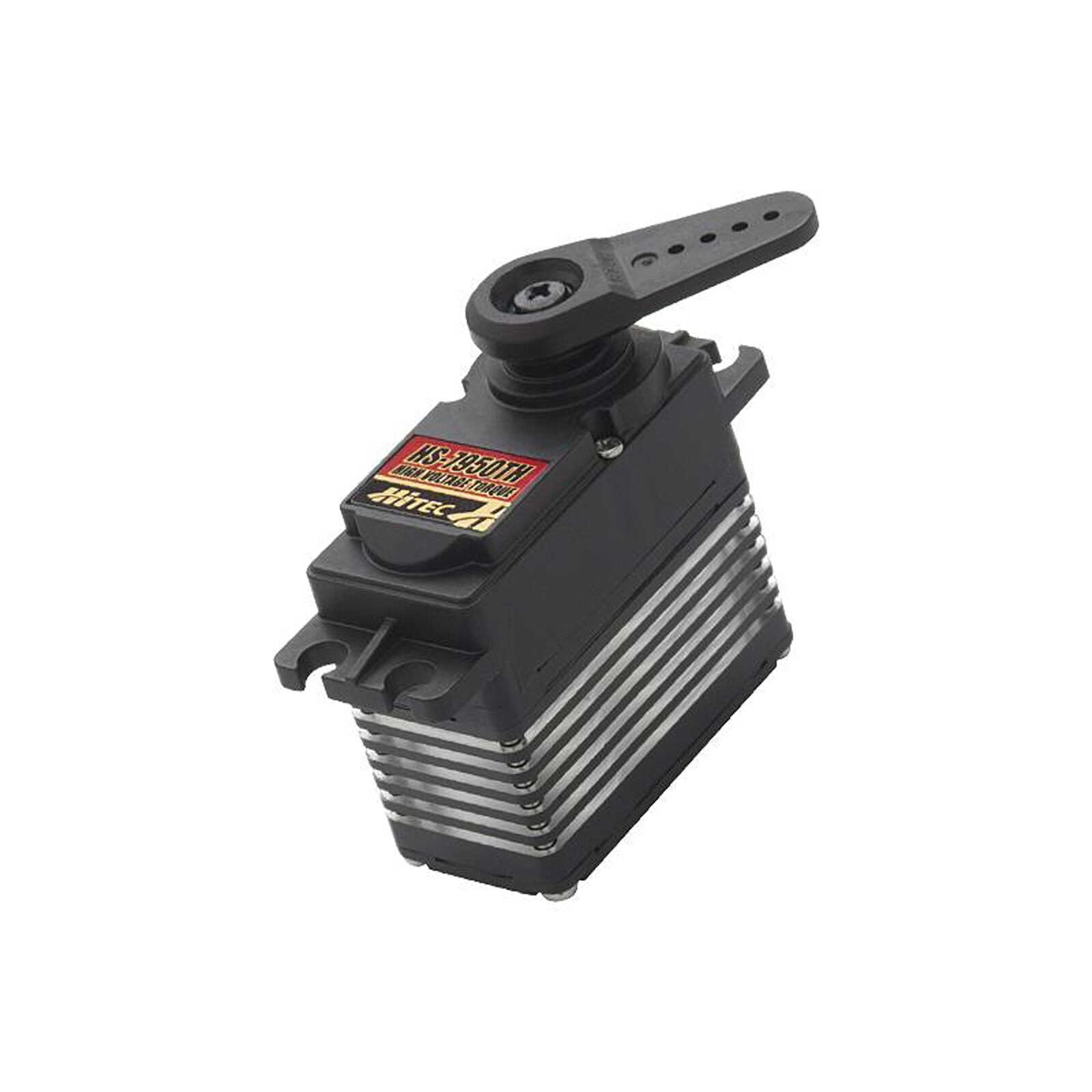

The "Ultra Torque" HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, The HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7050TH include a 7.4v optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing. The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time

Product Specifications

Servo Operating Voltage 6.0 - 7.4V (HV)
Programmable Yes
Servo Size Category Standard
Max Servo Torque 350-499 oz-in
Bearing Dual
Bushing Or Bearing Bearing
Maximum Servo Speed 0.19/0.15 sec @ 60 deg. (4.8v/6v)
Servo Type Digital
Maximum Servo Torque 403 oz-in @ 6V; 486 oz-in @ 7.4V
