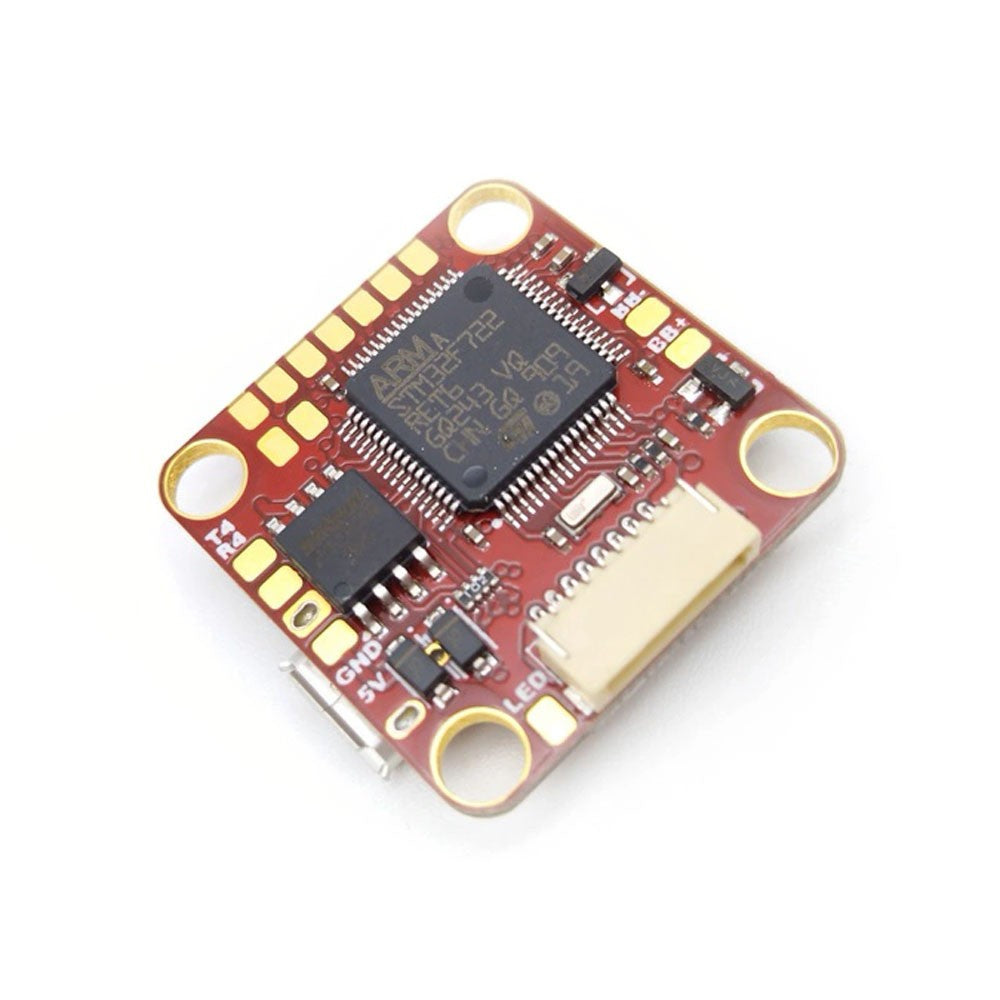

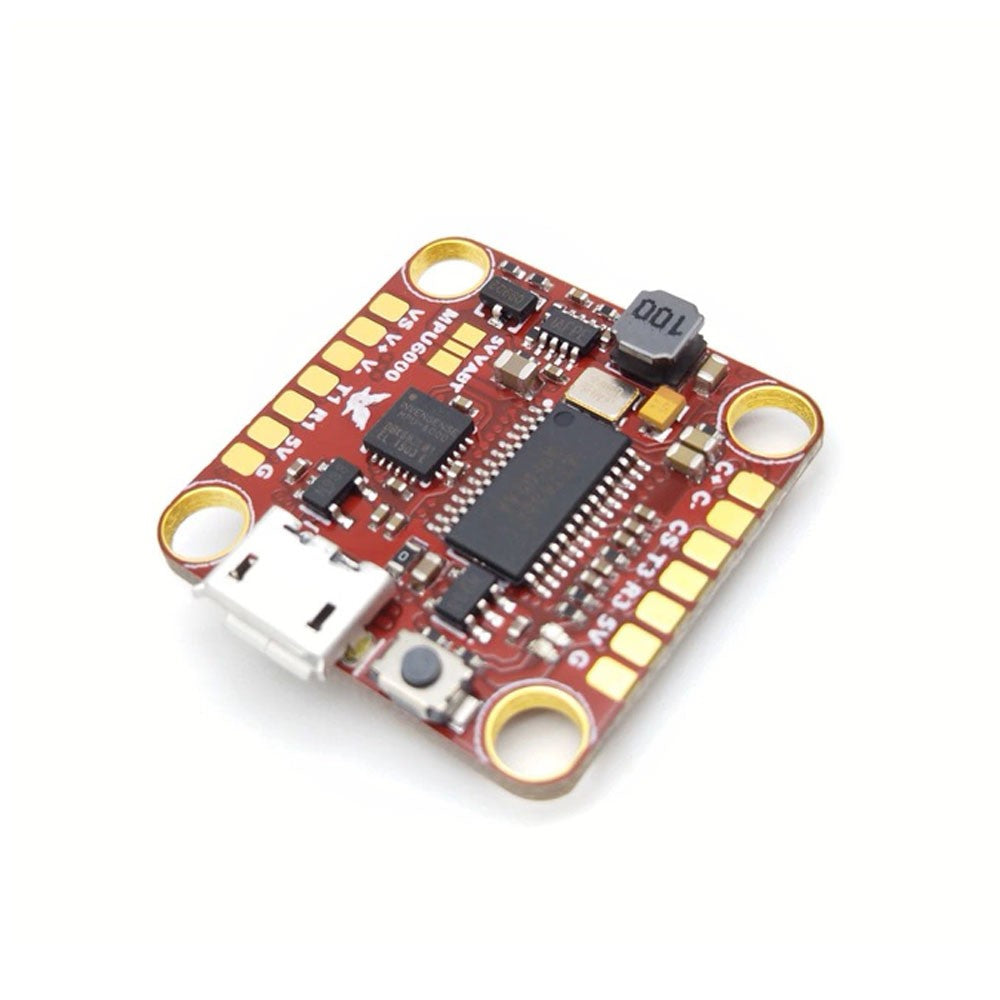

A new generation of Talon is here. With an F7 processor and 8S capable, Talon is the only 20X20 on the market with a STM32F722RET6 216MHz processor. Built-in Betaflight OSD, 6 UARTS, and dedicated LDOs for cleaner gyro and OSD signals makes Talon F7 the most powerful 20X20 FC on the market.
One of the features Talon F4 users praised is the choice of using the 8 pin harness or direct soldering motor ports to the ESC. We’ve kept that option, while still adding more features, by letting you remove the plastic connector to reveal motor ports. The 8 pin harness will be a direct pinout for the forthcoming Aikon 20X20 6S ESC.
Features
- MCU: STM32F722RET6 216MH
- Proven noise-free MPU6000
- Built-in Betaflight OSD
- Up to 8S (36V) direct battery power
- Buzzer pads for external buzzer
- Built-in voltage monitoring resistor
- 5V 2A BEC
- Dedicated LDO for Gyro, noise-free gyro power
- Dedicated LDO for OSD, cleaner OSD signal
- Led strip shares 5V with 5V/2A BEC
- 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
- Built-in camera control pin with resistor and capacitor
- 5 Full UARTS with RX AND TX pins

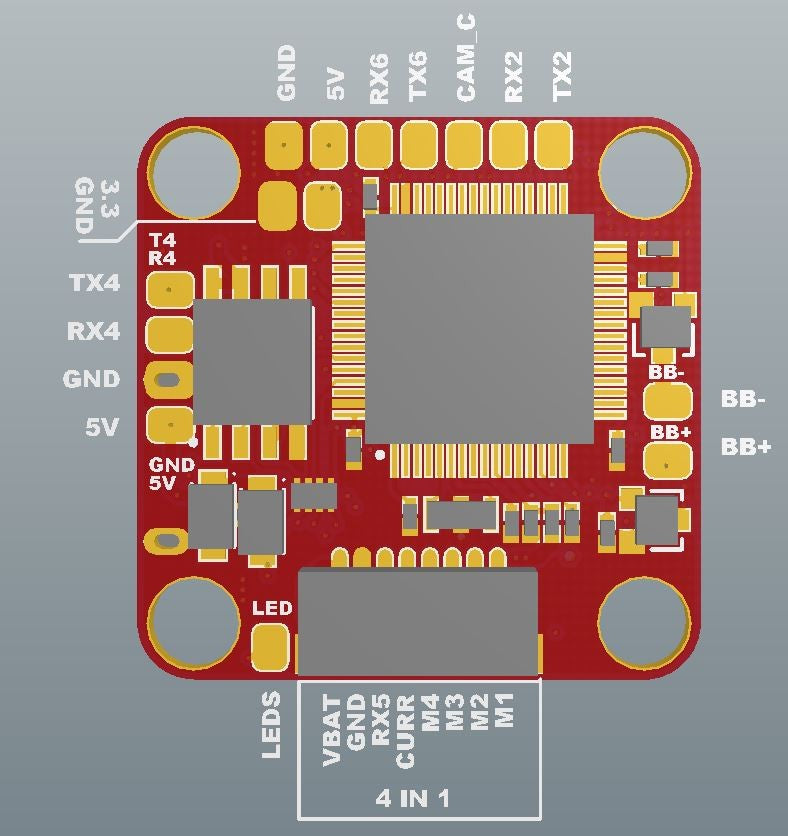

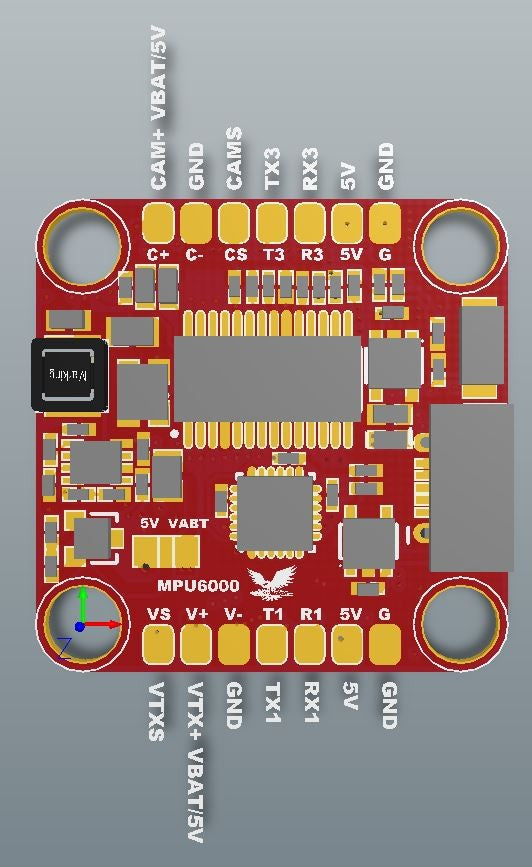

- Logical pin layout for cleanest build possible
- 8 pin 4 IN 1 ESC plug
- Remappable LED pad for additional motor output
- TX3, RX3 can be used for I2C for external compass
- 5V, VBAT selectable VTX and CAM power
- 16M Blackbox flash chip
- No flicker VTX pit mode switch (positive switch)
- M4 Can be selected either led_strip signal or M4 signal for RPM filtering
- 20 X 20 mounting hole with true 25mm board dimensions
