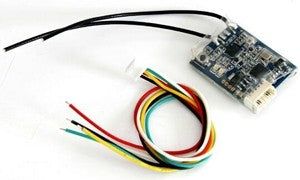

FrSky X SR 2.4GHz 16Ch Accst Receiver W/ S-Bus & CPPM

Overview:

FrSky's XSR is physically smaller and lighter weight than the D4R-II and X4R receiver, which is great for mini race quadcopters!

Compatibility:

FrSky X-series Module; X9D; X9D+; X9E; X12S in D16 mode. (XSR does not work with D-series Module). The LBT version of XSR receiver only works with FrSky D16-LBT Mode.

Specifications:

• Dimension: 26*19.2*5mm(L x W x H)
• Antenna Length: 90mm
• Weight : 3.8g
• Operating Voltage Range: 4.0~10V
• Operating Current: 100mA @5V
• Number of Channels: XSR - 16Ch(1~16ch from SBUS Channel,1~8ch from CPPM Channel)
