FEATURES

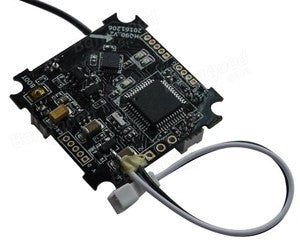

● Built-in F3EVO and XM receiver module
(Notice: XM receiver is a one-way receiver (no telemetry), it will receive the commands of Remote Control and send to F3EVO by SBUS (8CH is RSSI) to UART2 Rx of F3EVO)
● Features the latest Accelerometer, Gyro and Compass .
SPECIFICATION
- Compatibility FrSky Taranis X9D/X9E/Q X7/ Horus X12S/XJT in D16 mode
- Firmware Upgradable Firmware Upgradeable
- Dimension 29×29×6mm (L × W × H)
- Weight 3.4g
- Operating Voltage Range 4.2V
- Operating Current 75mA
- Number of Channels 16CH (8CH is RSSI) by SBUS to UART2 Rx of F3EVO
- Hardware STM32F303 CPU (72MHz inc FPU), MPU9250 (accelerometer/gyro/compass), CC2510 CPU for XM receiver
