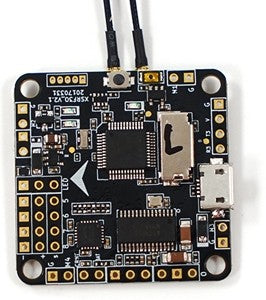

FrSky F3 FC Built in XSR Receiver OSD

SPECIFICATION

• Compatibility FrSky Taranis X9D/ X9D Plus/X7/ X9E/ Horus X12S/ XJT in D16 mode
• Firmware Upgradable Firmware Upgradable
• Dimension 36x36x6mm (L x W x H) with 30.5mm mounting holes
• Weight 6g
• Operating Voltage Range 4.0-10V
• Operating Current 200mA@5V
• Number of Channels 16CH (8CH is RSSI) by SBUS to UART2 of F3, Smart Port of XSR to UART3 of F3
• Hardware STM32F303 CPU,MPU6050 (Accelerometer/Gyro),OSD,SD Slot and XSR
