Specifications:
- High resolution, 700TVL;
- Extremely low illumination, 0.0001LUX;
- High sensitivity and high dynamic range pixel.
- 1/2 Inch” CCD digital image Sensor(Industrial Level)
- 10bit High Performance Image Signal Processor
- 3DNR (Digital Noise Reduction)
- DC5V~DC40V wide voltage
- 26*26mm size
- Engineering design, easy installation
- Specification:
- Image Sensor 1/2 inch” CCD Image Sensor
- Total Pixels 768(H)×582(V)
- Camera system NTSC
- OSD Support
- Audio Support
- Scanning system 2:1 Interlace
- Scanning Frequency 15.734KHz(H),59.94Hz(V)
- Sync. System Internal
- Horizontal Resolution 700TV Lines
- Video Output 1.0 Vp-p (75 ohm, composite)
- Burst level 0.3Vp-p~0.33Vp-p
- Gamma 0.45
- S/N Ratio 52dB
- WDR 90dB
- 3DNR Auto/Manual
- Day & Night Auto/Color/BW/External
- Min. illumination 0.0001 lux
- Shutter Speed Auto
- White Balance Auto
- Mrrior H/ V
- Language EN/CHN
- Operating Temperature -10℃ ~ 60℃
- Operating Humidity 20-80% relative humidity
- Storage Temperature -20℃ to 50℃
- Power Source DC5V~40V
- Power Consumption Max 90mA
- External Dimension 26*26mm
Package Included:

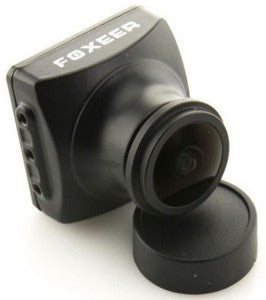

1X Night Wolf Starlight Camera
1X Cable
1X OSD board
1X Case
