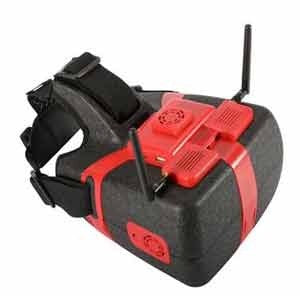

Specifications of the ViewOptix HD VOHD720 Head Mounted Display:
LCD –
Resolution 1024x600 – 7” Diagonal
Contrast 700:1
Brightness 350-380 cd/m2
Lens Focus Distance 50mm – 80mm (Adjustable)
Power –
Input: 7.4 VDC – 25.2 VDC (2S/3S/4S/5S/6S Li-Ion/Li-Po Compatible)
Current Draw – 15 Watts Max
Wireless RF System –
Frequency: 5.685ghz-5.945ghz (ISM Band)
40 Channel/Bands: A,B (Boscam),E,F (Fatshark),R (Raceband)
Sensitivity: -90dBm (±1dBm)
Antenna Port: 2 X RP-SMA, 50ohm
Diversity Type: Receiver / Antenna diversity Switching
TV System: NTSC/PAL (Auto)
Video output level: 1.0Vp-p Typical,75ohm
Audio output level: 1.0Vp-p Typical,10Kohm
DVR – Supports up to 128GB USB / SD Card Drive (FAT32 File System), 10 MB/s Recording Rate MPEG Compression 60FPS, .AVI Format (Auto Save when Power Off)
HDMI Input – Supports up to 1920x1080P 60HZ (HDMI 1.4a)
