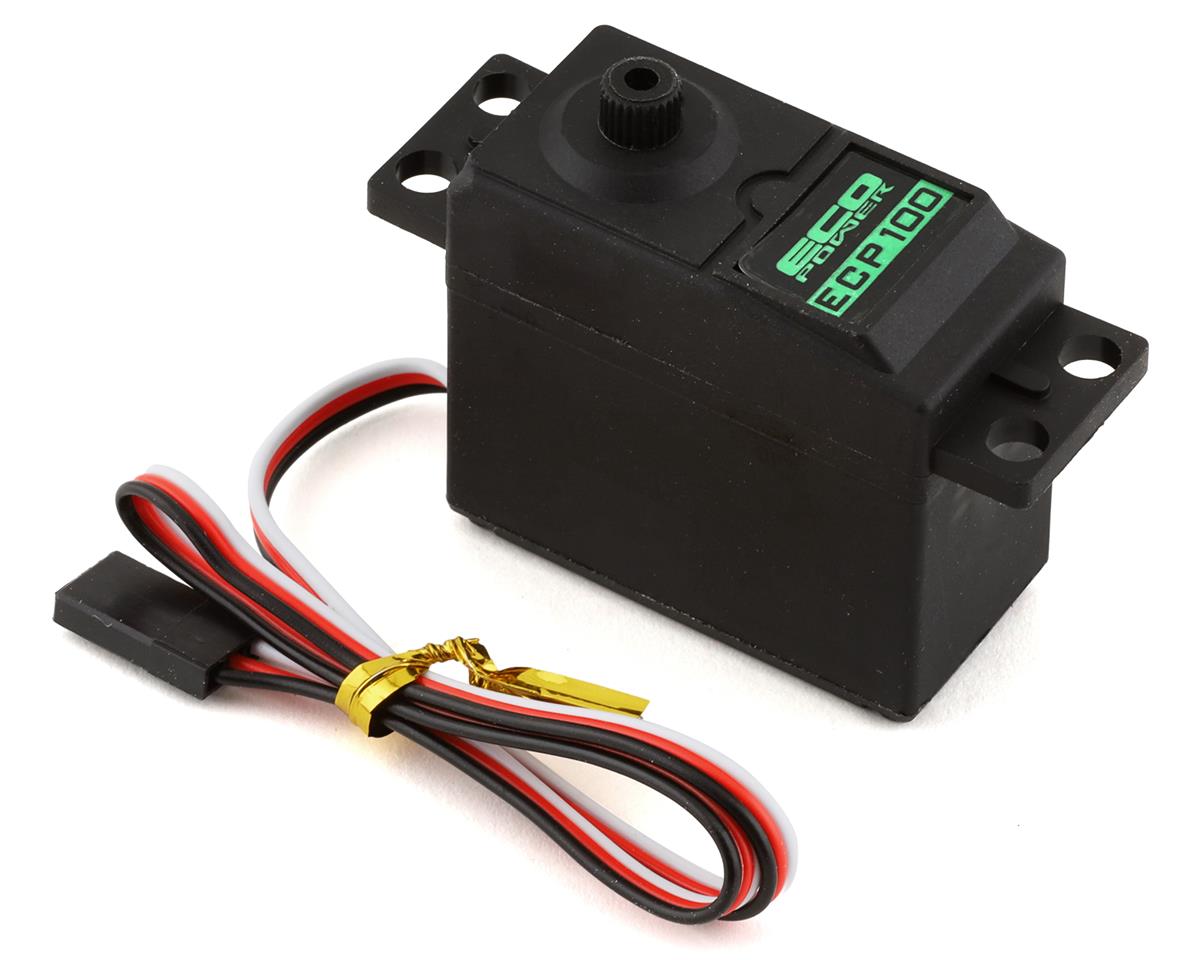

Servo Model |
100 |
Recommended Application | Light Duty Surface & Air |
Waterproof |
No |
Operating Voltage | 4.8V - 6.0V |
Operating Speed @ 4.8V | 0.2/60° sec |
Operating Speed @ 6.0V | 0.18/60° sec |
Dynamic Torque @ 4.8V | 62 oz-in (4.4 kg-cm) |
Dynamic Torque @ 6.0V | 89 oz-in (6.4 kg-cm) |
Motor Type | Cored DC |
Output Shaft | 25 Tooth |
Gears | Nylon |
Weight | 36g |
Dimensions | 40.5x20x42.25mm (LxWxH) |
NOTE: Be sure to set your End Point Adjustments when using this servo to ensure long life and performance.
