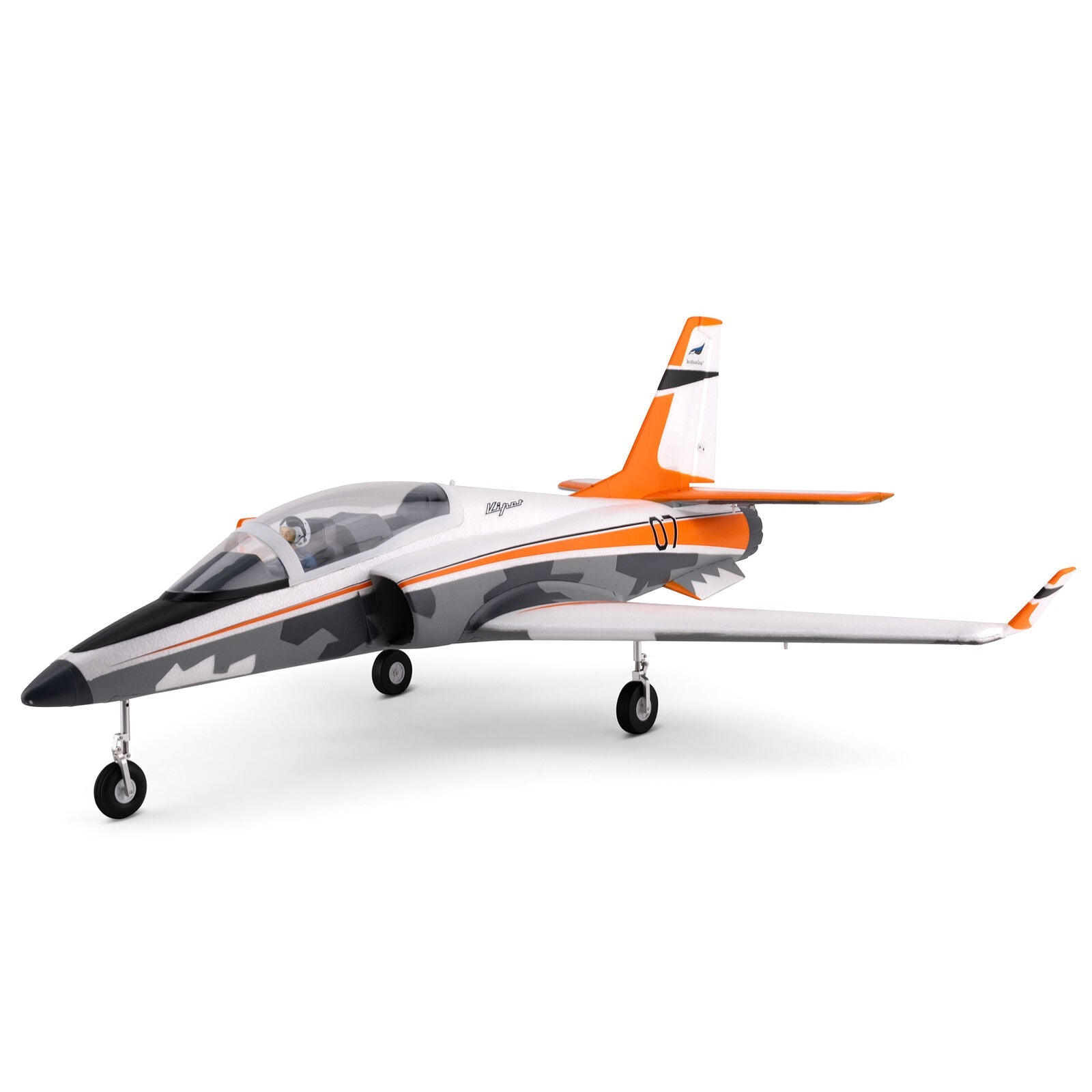

E-flite Viper 70 EDF Jet BNF Basic w/ AS3X and SAFE Select (EFL077500)

Introduction

The full-scale Viper Jet was designed to deliver fighter-jet looks and performance with low-wing prop-driven airplane handling so more pilots could enjoy flying a jet. The E-flite^® Viper 70mm EDF is true-to-form both in its appearance and how it delivers a high-performance jet experience like no other, whether you've flown many jets before or even if it's your first "full-house" jet model. It delivers incredible speed, vertical performance, and aerobatic capability while also being easier to take off and land than other similar class models – especially because this Bind-N-Fly Basic model is equipped with exclusive AS3X^® and SAFE^® Select technologies. This updated and upgraded version also includes a higher performance Spektrum motor and 85A Avian Smart Lite ESC for added speed and vertical performance, plus delivers real-time telemetry data and thrust reversing via the AR631 receiver, along with shock-absorbing struts and softer tires for easier landings!

Features

Overview

The E-flite^® Viper 70mm EDF has been updated and upgraded to be the Smartest, best handling, and easiest-to-fly mid-sized model of the popular jet yet! It's a scale jet that flies smooth and handles like a sport airplane — yet is also capable of incredible aerobatics and top speeds. But what truly sets it apart is how easy it is to take off, fly, and land, which makes it the BEST choice for a high-performance EDF model for a variety of pilots. Assembly is fast and simple, with no glue or special tools required. The lightweight, composite-reinforced EPO airframe is factory-finished in the now iconic Aircraft Studio Design trim scheme with higher visibility color. And the eight factory-installed digital, metal-geared servos with ball-link equipped linkages deliver crisp and precise control at every speed. Functional flaps and electric retracts, with upgraded shock-absorbing struts plus wheels featuring softer tires to reduce bouncing when landing, make it a perfect first "full-house" jet model for those moving up from simpler EDF models.

This BNF^® Basic version model includes a factory-balanced and installed 12-blade 70mm fan, matched to a larger 1900Kv brushless inrunner motor, plus an 85-amp Avian Smart Lite ESC that work together with the optimized ducting to deliver an abundance of speed and thrust. With this updated and upgraded power system, the Viper 70mm now has even better vertical performance and approximately 10% more speed than the previous version making it capable of level flight top speeds up to 120+ MPH and nearly unlimited vertical performance with 6S 3200mAh to 4000mAh batteries. It's also equipped with a factory-installed Spektrum AR631 receiver featuring exclusive AS3X and optional-use SAFE Select technologies. When using compatible AirWare-equipped transmitters, the receiver and Smart Lite ESC supply overall battery voltage, current draw, motor RPM and other telemetry data in real-time — with Smart and non-Smart batteries. And with a 7–8+ channel transmitter, you can also take advantage of the optional-use thrust reversing to shorten rollouts after landing and for other special ground handling capabilities. It all adds up to deliver a mid-sized, full-house and high-performance EDF jet experience unlike any other for low-time to experienced jet pilots!



Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. And although this BNF Basic version is equipped with AS3X and optional-use SAFE Select that makes it easier to fly than PNP versions, it's not a suitable first-ever RC aircraft for new pilots, a "next step after a trainer" model for low-time RC pilots, or first EDF (Electric Ducted Fan)/jet model for intermediate pilots. You should have the experience and skills necessary to successfully fly simpler EDF models like the E-flite Habu SS (Super Sport) 50mm or 70mm, F-15 Eagle 64mm, and/or higher performance sport models like the V900 and V1200, or warbirds like the 1.2m and 1.5m series models, before attempting to fly the Viper 70mm EDF.

Are you new to flying RC (Radio Controlled) aircraft? If you are, the Viper is not a suitable first-ever RC model and we recommend learning to fly with one of our purpose-built trainer aircraft such as the E-flite^® Habu STS (Smart Trainer with SAFE) 70mm EDF (www.horizonhobby.cc/HabuSTSRTF). It's equipped with exclusive and innovative SAFE technology that makes it possible for almost anyone to learn to fly successfully! The Ready-To-Fly (RTF) Basic version includes almost everything needed to fly (except for a compatible LiPo battery and charger that are sold separately) and is a perfect choice if you're a new RC pilot!





Bind-N-Fly^® Completion Level Advantage

Already own a Spektrum^™ transmitter? Bind-N-Fly^® (BNF^®) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos and a Spektrum 2.4GHz receiver installed so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!





Exclusive Technologies

This mid-sized Viper model is equipped with exclusive Spektrum^™ AS3X^® and SAFE^® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch! And if you don't want to enable the SAFE Select features, simply bind the receiver normally and only AS3X will be active.





Smart Technology

The exclusive Spektrum Avian Smart Lite ESC provides a variety of real-time power system-related telemetry data including overall battery voltage, current draw, motor RPM, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR631) and Spektrum AirWare^™ equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, optional-use motor/thrust reversing can help shorten rollout after landing and offers other special ground handling capabilities (7–8+ channel transmitter required for reversing).





Higher Performance

The 12-blade 70mm fan, upgraded 1900Kv brushless inrunner motor and 85-amp ESC combine with your 6S 3200–4000mAh 30+C LiPo battery to deliver nearly unlimited vertical performance and a fantastic speed range with virtually instantaneous throttle response. But what makes the experience truly rewarding is the amazing sound produced by the power system—it's almost like a real turbine engine.





Functional Flaps

The factory-installed, fully-functional flaps offer improved slow-flight capability and performance while also making it possible to take off and land in shorter distances and at slower speeds. This makes the Viper 70mm a perfect first "full-house" jet model for those moving up from simpler EDF models.





Electric Retracts

The steerable nose wheel and wide-spaced main gear feature reliable electric retract units equipped with metal components to deliver excellent ground handling. Upgraded shock-absorbing struts make it possible to operate from a variety of paved, dirt and even some grass surfaces, plus the softer tires reduce bouncing when landing on hard surfaces.





Durable Precision

The lightweight yet durable EPO airframe is composite reinforced for added strength, and the wing design has been updated to prevent stress cracks. Plus, the eight factory-installed digital, metal-geared servos with ball-link equipped linkages deliver crisp and precise control at every speed.





Unmatched Capability

The Viper design offers incredible handling across a wide speed range and flight envelope. From slower-than-expected landings and low-speed passes to 120+ MPH high-speed flybys, the airframe and power system combine to deliver unbelievable performance and aerobatic capability so you can perform giant loops, rolls, endless knife edge flight, snaps, tumbles and other maneuvers almost effortlessly.





Easy Assembly

No glue is required for assembly, and you can have the Viper ready to fly in less time than it takes to charge a battery! Plus, it's factory-finished in an exclusive and unique, highly-visible trim scheme by Aircraft Studio Design.





Product Specifications

LiPo Compatibility	6S
Completion Level	Bind-N-Fly Basic
Recommended Motor Battery	22.2V 3200mAh 6S 50C LiPo Battery with EC5 or IC5 Connector
Power Type	Electric
Servos	Included
Skill Level	Level 2
Wingspan	43.31" (1100 mm)
Battery	Sold Separately
Connector Type	IC5
Motor Size	3060-1900Kv
Product Length	40.39" (1026 mm)
Motor Type	Brushless
Speed Control	Included
Product Weight	65.5oz (1856g) with Recommended Battery
Approximate Assembly Time	Less than 1 Hour
Flaps	Yes
Material	EPO
Retracts	Included
Minimum Required Radio	Full-range 6–8+ channel Spektrum DSMX®/DSM2® compatible transmitter
Radio	Sold Separately
Technology	Smart, AS3X and SAFE
Charger	Sold Separately
Receiver	Included
