Creality Bed Auto Leveling Sensor Kit for CR-10 / CR-20

Creality 3D CR-10S/CR20 Auto Level Position Sensor Kit

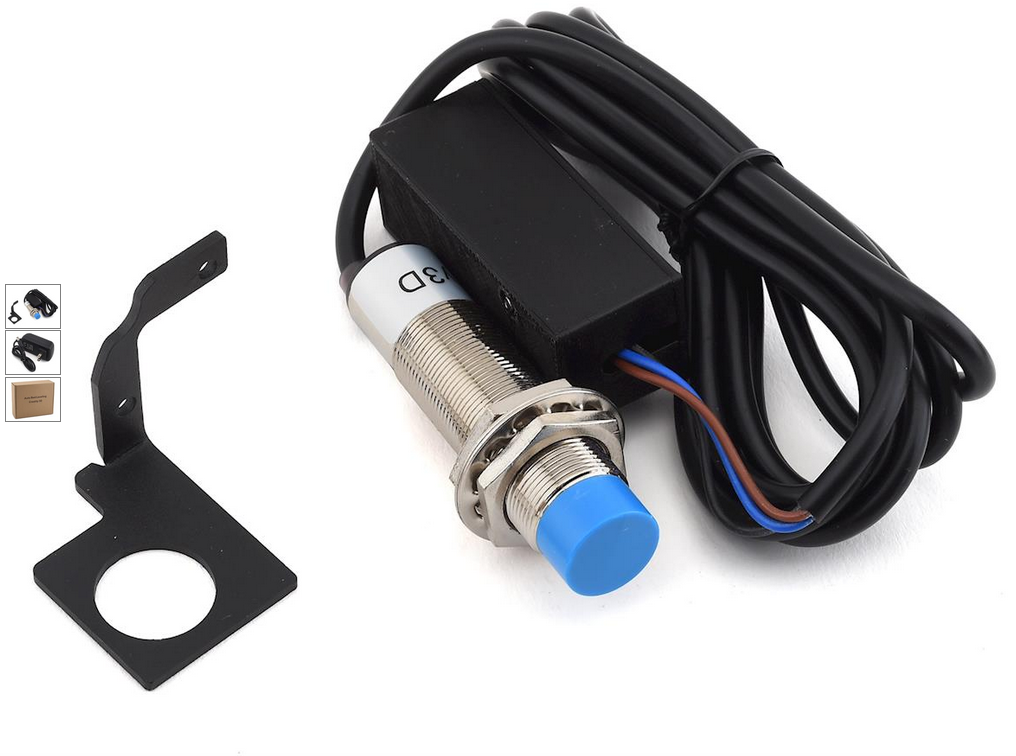

The Creality CR-10S/CR-20 Auto Level Position Sensor Kit is an optional upgrade for Creality CR-10 S, CR-10 S4, and CR-10 S5 3D Printer models. This sensor can precisely measure the tilt of your print surface, helping to improve the printing precision of your 3D printer. Package includes sensor, mounting bracket and power adapter.

Specifications:
Product type: proximity switch
Dimension: cylinder M18*1(mm)
Detection mode: capacitive type
Detection distance: 8mm
Voltage: DC6-36V
Output type: DC NPN open
Maximum working frequency: 30Hz
Rated working voltage: 6-36VDC
Rated working current: ≤200mA
Polarity protection: YES
Short circuit protection: YES
Action directive: LED
Working temperature: -20℃～+60℃
Voltage drop: ≤2.5V
Return difference: ≤15%Sn
Repetition precision: ≤5%Sn
Compatibility: CR-10 S, CR-10 S4,CR-10 S5 3D Printer
