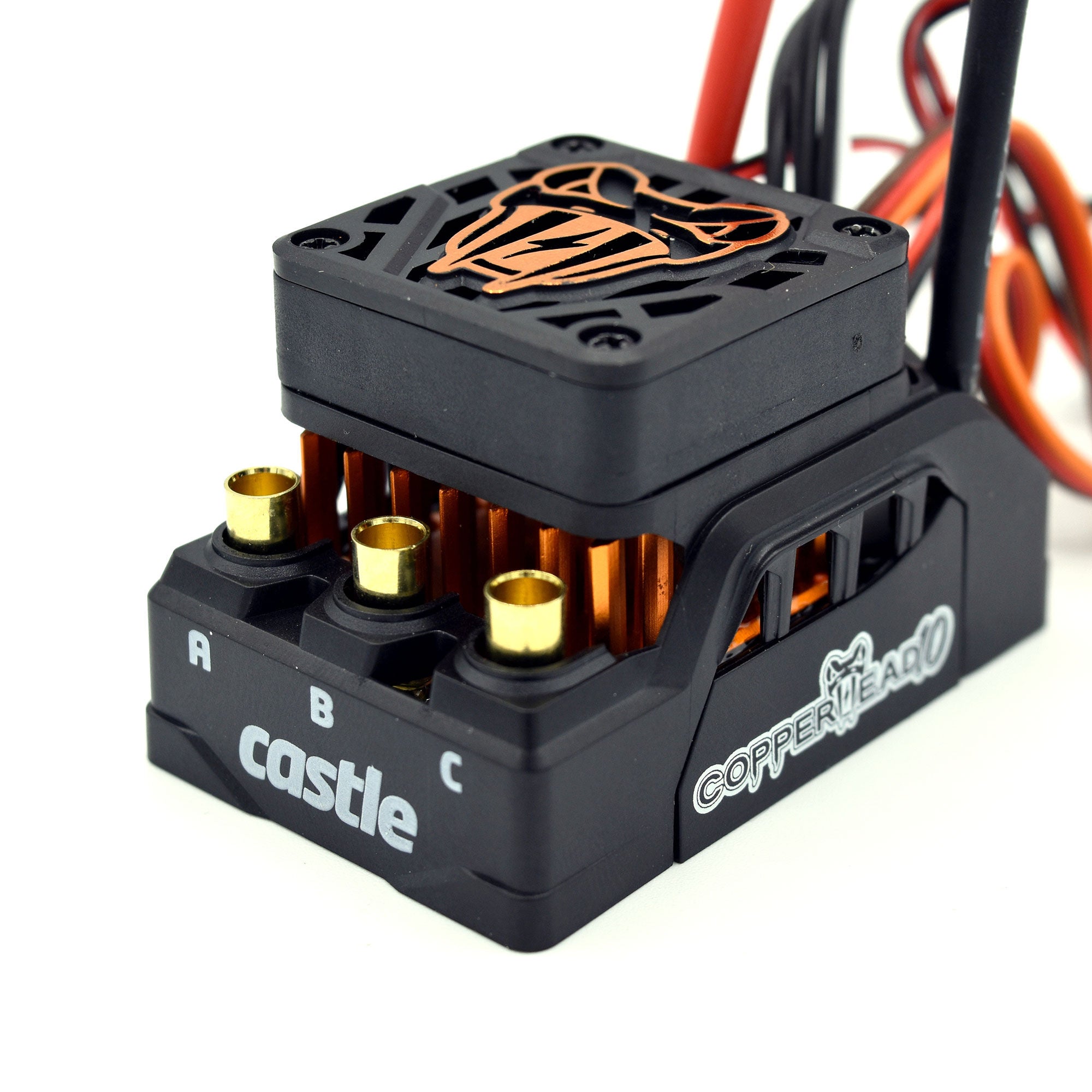

Castle Creations 1/10 Copperhead, 16.8V, Sensored, Waterproof, ESC, Internal BEC (CSE10016600)

The Copperhead 10 is a completely new design which rounds out our 1:10 scale offerings, positioned between the SIDEWINDER 4 as the entry-level upgrade and the MAMBA X as the extreme performance option. The COPPERHEAD 10 includes CRYO-DRIVE™ technology, sensored motor support and data logging with Castle’s signature reliability and performance. Whether crawling the trails, bashing in the backyard or ripping up corners, COPPERHEAD 10’s versatility will appeal to a wide variety of 1:10 scale enthusiasts.

Features

Overview

CRYO-DRIVE™: CRYO-DRIVE™ technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs. COOLER TEMPS mean LONGER RUNS and MORE POWER in a COPPERHEAD 10 setup.

DATA LOGGING LITE: Battery Voltage, Battery Ripple, Controller Temperature, Motor RPM and Motor Temperature data points can be captured, downloaded and analyzed via Castle Link software. While not a full version of Data Logging capabilities that the MAMBA X EXTREME 1:10 SCALE ESC has, these critical parameters are excellent sources of information for maximizing performance and battery life of the COPPERHEAD 10.

SMARTSENSE™ TECHNOLOGY: SMARTSENSE uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle’s ultra-efficient sensorless mode with electronic timing to advance timing automatically for peak performance in all driving conditions. (Requires use of Castle brushless motor to utilize)

INTERNAL BEC (Battery Eliminator Circuit): COPPERHEAD 10 features a selectable 5.5V or 7.5V (6A peak) internal BEC to supply power to many of today’s high-torque servos, without requiring the use of an external BEC.

Dual use fan guard: For crawler setups or others that do not require an ESC cooling fan, the fan is easily removed with four screws and the fan guard with the cool COPPERHEAD logo simply clicks back into place on the top of the ESC. It keeps the COPPERHEAD 10 looking mean and provides an extra measure of protection.

Specifications

Application

RC vehicles weighing up to 6.5 lbs

BEC

No

BEC Type

Internal

BEC Voltage

5.5V or 7.5V (6A peak)

Brakes

Proportional

Connector Type

4mm Bullet

Forward

Yes

Input Voltage

2-4S LiPo

Motor Output Lead

4.0mm female bullets for motor connection

Product Height

1.33" (34 mm)

Product Length

2.19" (56 mm)

Product Weight

2.50oz (70.9g)

Product Width

1.39" (35 mm)

Programmable

Yes

Reverse

Yes

Voltage

16.8V

Water-Resistant

Yes
