Spec: BLX

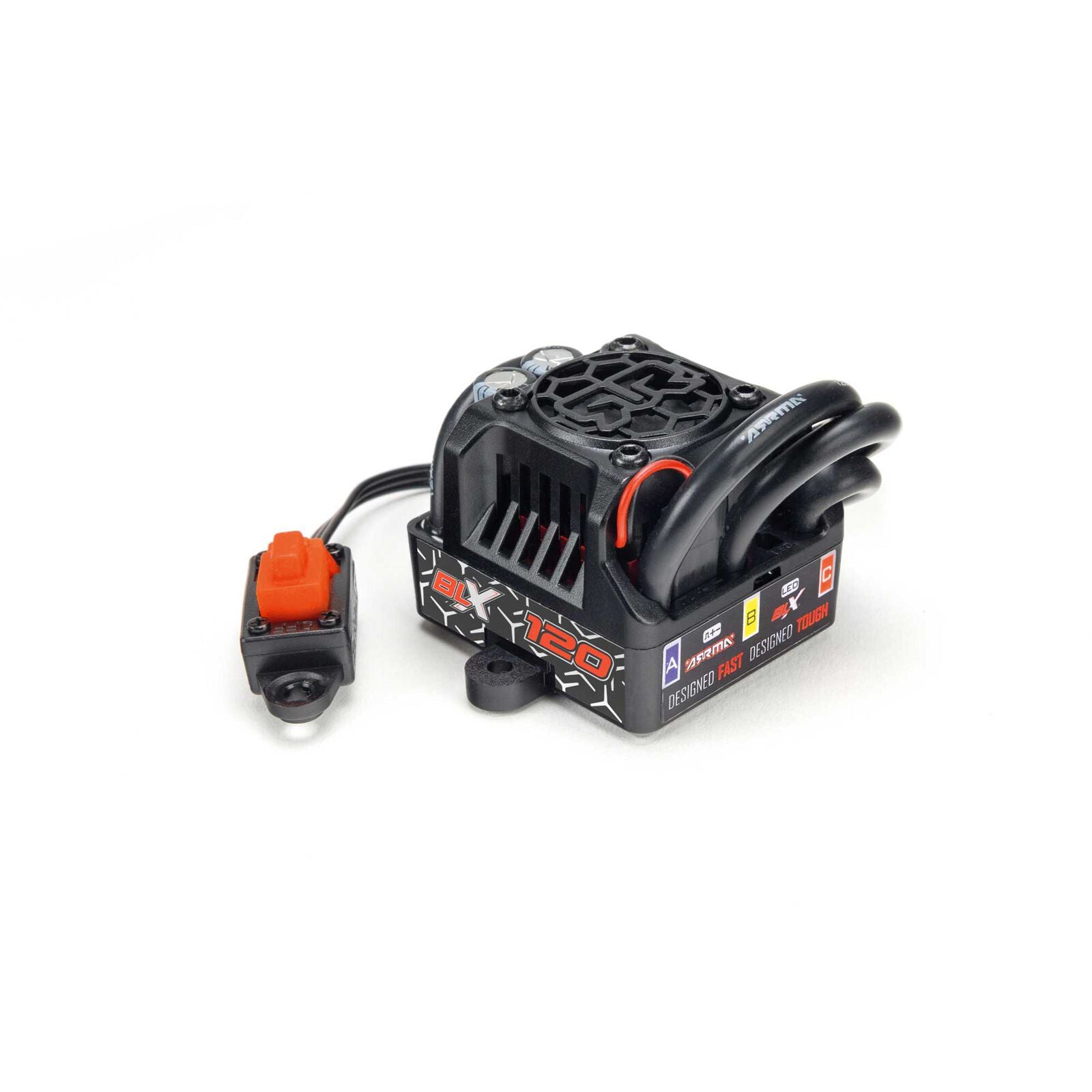

ARRMA BLX120 Brushless 4S ESC ARA390264 is compatible with ARA102690, ARA102692
The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.
Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
SPECIFICATION
Battery usage | 3S LiPo (11.1V) or 4S LiPo (14.8V) |
Low Voltage Cut-Off (LVC) | 3.4V per cell |
Thermal Protection Temperature | 125°C / 257°F |
Over-Voltage Protection | Over 17.2V |
BEC Voltage | 6V |
BEC Current | 3A |
ESC Length | 43mm / 1.69" |
ESC Height | 34mm / 1.34" |
ESC Width | 54.5mm / 2.15" (Including hold-down tabs) |
ESC Weight | 150g / 5.3 oz |
Receiver Wire Length | 170mm / 6.70" |
Battery Wire Length |
225mm / 8.86" |
Motor Wire Length (Including Connector) | 200mm / 7.87" |
Switch Length | 21mm / 0.83" |
Switch Width | 13.3mm / 0.52" |
Switch Height | 16mm / 0.63" |
Motor Bullet Connector Size | 4mm / 0.16" |
Wire Specifications | 12AWG |
ESC Battery Connector Type | 2xEC5 |
