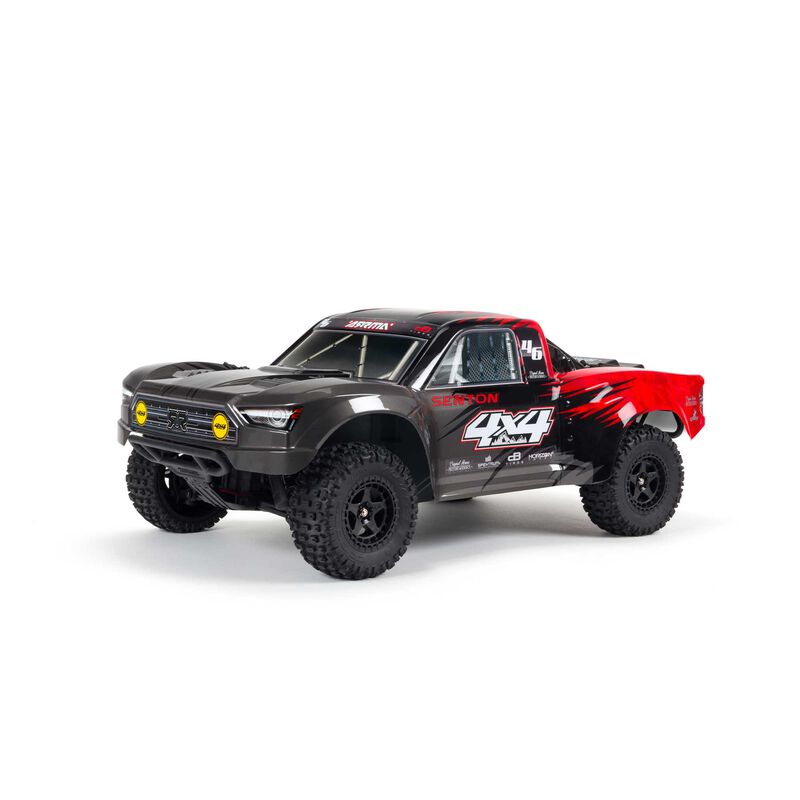

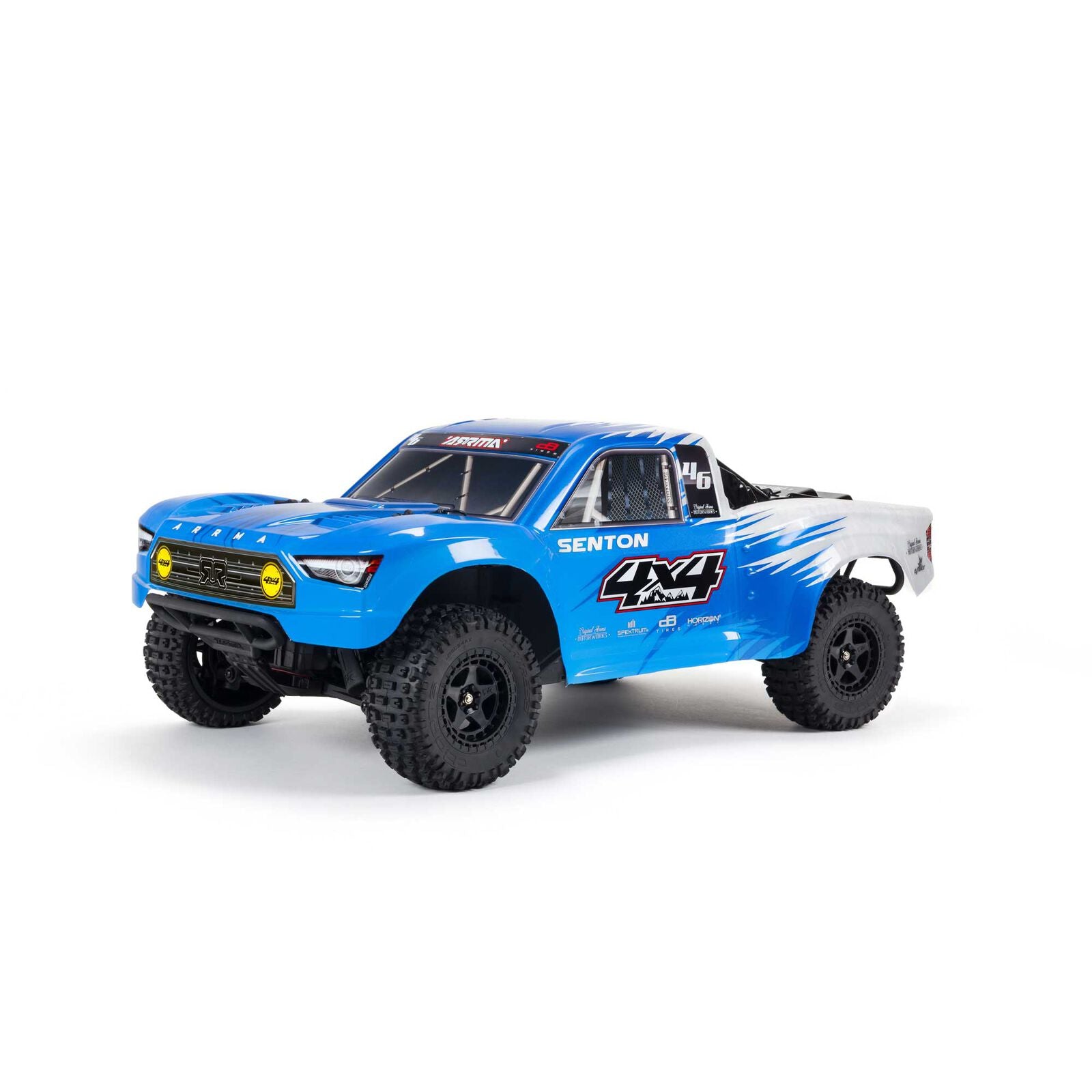

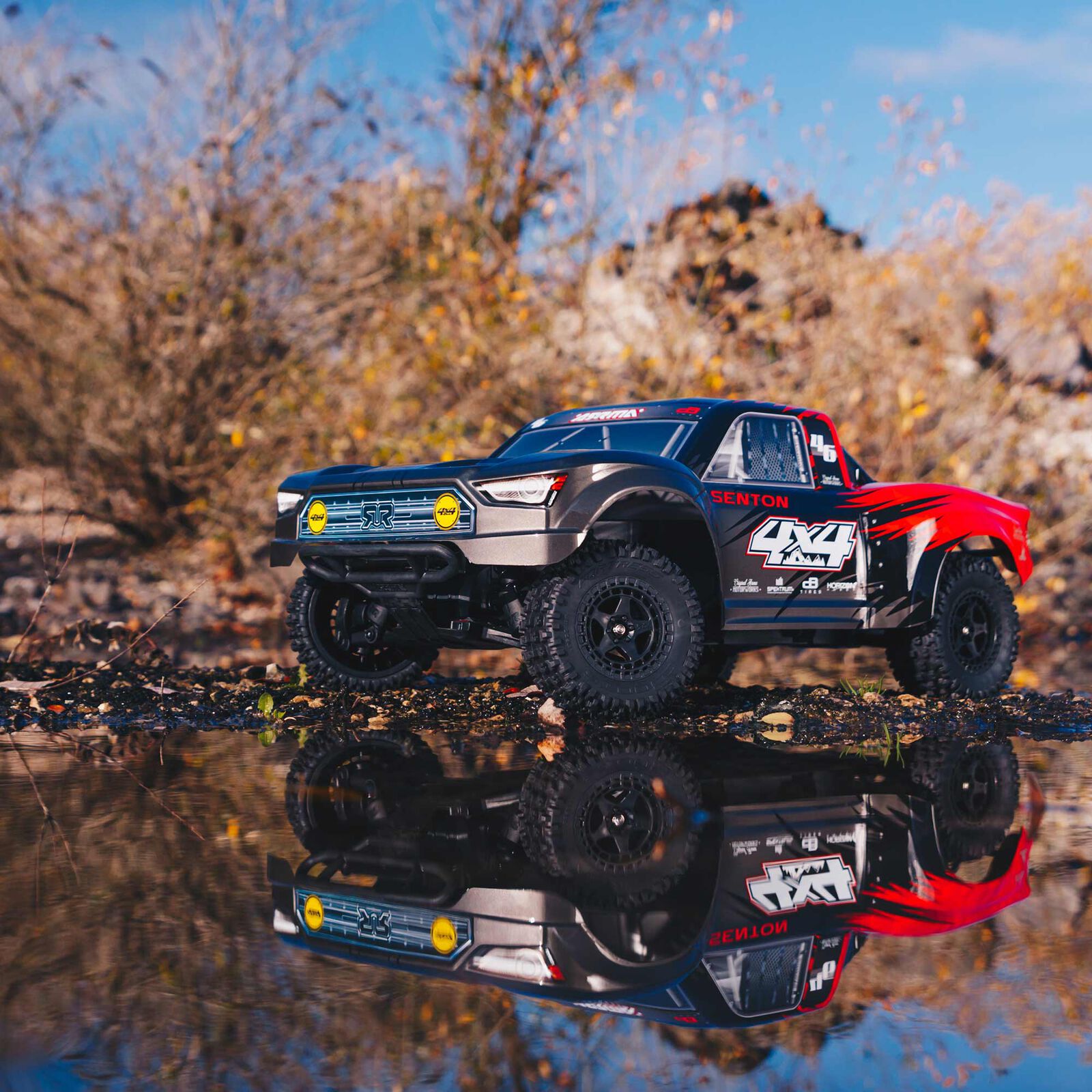

Fast, fierce, factory-assembled and fully equipped, the 2S capable ARRMA® SENTON™ 4X4 MEGA RTR Short Course Truck is ready to bash right out of the box. Its Spektrum™ STX2® radio with SRX200 receiver includes many of the same features found in high-end 2.4GHz radio systems — throttle and servo reversing, throttle and steering travel adjust, throttle limiting and more. The 12T 550 brushed motor powers the SENTON™ 4X4 MEGA RTR to exciting bashing speeds. Waterproof* electronics and dBoots® Fortress tires carry it through any terrain in any weather. The ingenious ARRMA® modular chassis makes servicing fast and easy. Motor, motor plate, slipper clutch assembly and gear cover are all contained in a single module that can be removed from the chassis by taking out just one screw. Similar modules for the electronics and diff units add to the ease of maintenance. Enjoy full-scale short course truck looks and lots of mud-blasting, dirt-roosting fun with the SENTON™ 4X4 MEGA RTR!*Note: For details on waterproof standards, refer to the instruction manual.
- Spektrum™ STX2® 2.4GHz radio
- 2-Channel SRX200 waterproof* receiver
- Built-in 3-position throttle limiter
- Extended range and interference-free performance
- Throttle/steering reversing
- Throttle/steering travel adjust
- Throttle limiting
- ADS-5 waterproof* 5kg-cm servo (70 oz-inch @ 6V)
- MEGA 12T Brushed 550 motor
- MEGA waterproof* ESC
- IC3™ connectors (EC3™ compatible)
- Easy-access power module
- Easy-access electronics module
- Easy-access diff module removal front and rear
- Oil-filled shocks
- Super-smooth bearings
- Super-tough metal gears
- Tough multi-spoke black wheels and multi-terrain dBoots® Fortress tires
- Adjustable body mounts
- Adjustable ride height
- Extended height dirt defenders
- 2400mAh 8.4V 7-cell NiMH battery
- ADC-N7 7-cell NiMH wall charger
- 30 mph (48km/h) speed achievable in optimum driving conditions with optional gearing
- 2-year limited warranty
Powered by the MEGA 550 brushed motor system, the ARRMA® SENTON™ 4X4 MEGA RTR Short Course Truck is DESIGNED FAST, DESIGNED TOUGH — built for exciting bashing speeds and extreme, all-terrain durability! Its full-time 4WD transmission with front and rear differentials uses strong front, rear, and centerline telescoping driveshafts that can't be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver.
The self-bleeding, oil-filled shocks use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod end has a molded-in spring perch for extra toughness. High chassis guards limit the amount of dirt and debris that can get into the chassis tub. Side impact nerf bars further protect the chassis and body shell, and shock-absorbing loops keep the front and rear bumpers secured to the chassis, offering defense against heavy impacts.
The SENTON™ 4X4 MEGA RTR Short Course Truck's ingenious modular design makes chassis components easy to access for maintenance. Its power module consists of a MEGA 550 motor, motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis, as a complete unit, by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The power module design also ensures that pinion and spur gear mesh is perfect every time, using numbered holes for different pinion gear sizes.
A two-piece molding screwed to the truck's chassis serves as its electronics module, containing a waterproof radio box, servo mount, and ESC tray. The radio receiver mounts inside the radio box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.
The differential module houses each assembled differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for access to the differentials. Each differential gear case features large pitch gears that are engineered to withstand huge torque. Internal metal gears have been chosen for reliability during extreme bashing.
Tough, multi-spoke black wheels with dBoots® Fortress tires give the SENTON™ 4X4 MEGA RTR effective traction for bashing on almost any terrain. Multiple battery types can be used with the hook-and-loop mounting, from 6-cell NiMH packs to a 2S block pack.
- (4) AA Batteries
- (1) 1/10 SENTON™ 4X4 MEGA 550 4WD Short Course Truck with:
- (1) ARRMA MEGA ESC
- (1) MEGA 12T 550 Brushed Motor with IC3™ Connectors (EC3™ compatible)
- (1) Spektrum™ 2.4GHz STX2® Radio and SRX200 Receiver
- (1) ADS-5 Servo
- (1) 2400mAh 8.4V 7-cell NiMH Battery
- (1) ADC-N7 7-cell NiMH Wall Charger
- (1) Product Manual
