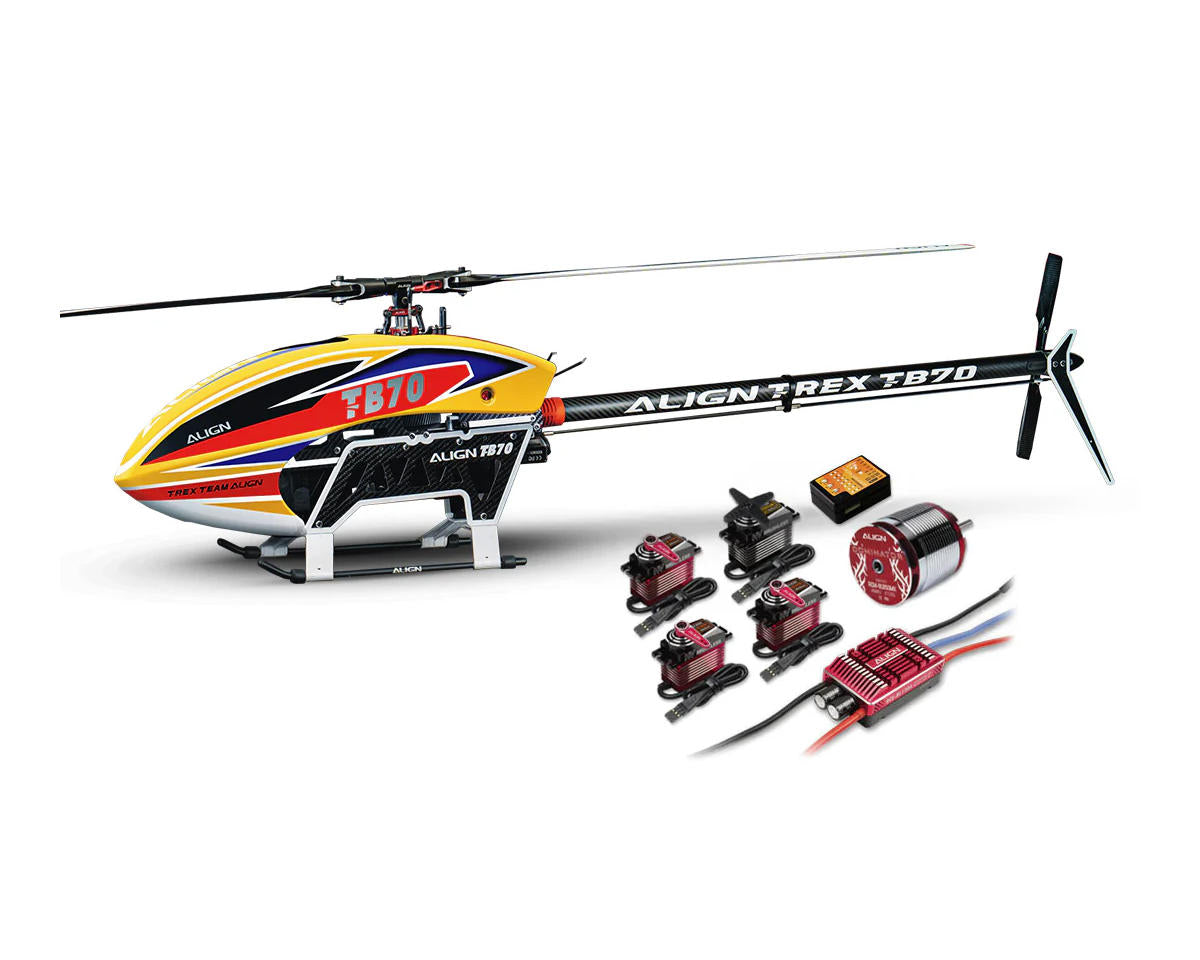

Align TB70 V2 Super Combo Electric Helicopter Kit w/Microbeast Flybarless System (AGNRH70E59X)

High-Performance Helicopter with Explosive Power

The Align TB70 V2 Super Combo Electric Helicopter Kit is a high-performance model designed for enthusiasts seeking explosive power and smooth, agile flight. Operating at a main rotor speed of 2150-2200rpm, this helicopter offers incredible power output and an exceptional flying experience. The precision engineering and innovative design ensure durability, high transmission efficiency, and low energy consumption, making it a standout in the electric helicopter market. The TB70 V2 combines cutting-edge technology with refined craftsmanship, offering a lightweight yet robust structure perfect for both 3D flight and stable performance. This Super Combo version includes a Microbeast 2 Flybarless System and Align's RCE-BL130A Brushless Electronic Speed Control for exquisite performance.

About the TB70 V2 Super Combo Helicopter

Precision Engineering and Power Output

The TB70 V2 features a 15T main driven gear made from high-hardness carbon steel, setting a higher standard in the aircraft model industry. This gear ensures high transmission efficiency and quiet operation, allowing for continuous, abundant power output. With the canopy weighing only 120g, the lightweight design and streamlined structure minimize wind resistance and enhance the overall performance and handling of the helicopter.

Innovative Structural Design

The updated V2 side panel design includes an inlaid structure for easy installation of the ESC fixing plate and gyroscope without the need for screws. The fuselage incorporates high-strength composite materials with a 2mm thick 3K carbon fiber upper side panel and a 3.5mm thick 3K carbon fiber lower side panel, which enhance structural rigidity and ease of maintenance. The motor base features an additional guide wheel to stabilize the belt's operation, ensuring smooth power transmission and extending the belt's lifespan. The updated tripod design adds stability and impact resistance, preventing deformation during use.

Advanced Rotor Head and Tail Mechanism

The low center of gravity EFL rotor head set is crafted from 6061-T6 aluminum alloy and fully CNC machined, incorporating a high carbon steel precision grinding CNC spindle. This setup reduces the center of gravity, aiding in 3D flight maneuvers and improving overall flight stability. The helicopter's 800MX brushless motor delivers ultimate power with a continuous output of 5100 watts and an instantaneous maximum output of 10,200 watts. The model also includes a belt tension adjustment component and a robust tail box that enhance flight smoothness and ease of maintenance, providing stable support and precise control.

Features:

• 15T high-hardness carbon steel main driven gear
• Precision-ground gear surface
• Lightweight and streamlined design minimizes wind resistance
• Additional guide wheel for belt stabilization
• Low center of gravity rotor head design
• Adjustable belt tension component
• Robust tail box with large diameter drive pulley
• 800MX brushless motor with 5100w continuous output
• Inlaid structure for easy ESC and gyroscope installation
• High-strength 3k carbon fiber side panels
