Before adding that Reef 900LP Servo to your cart, check out Exocages' video on YouTube is definitely a smart move. You’ll get a clearer idea of all the components and steps involved, plus ensure you're fully prepared to make the most of the direct-powered servos.

WARNING!!: Does not work with Rhino ESC Systems! We recommend Holmes or Vt3k ESCs.

Recommend "true"+1200mah +100C battery or more, with an external Zener Diode (included).

The 900LP SMART brushless servo really has it all! Low-Profile for a smaller footprint and lighter weight, a huge amount of power, capable of up to 17V, awesome speeds all while boasting SMART Programming!

Ready to utilize for your next setup!

This thing is insane!

NOTE: NOT RECOMMENDED TO USE WITH RHINO ELECTRONICS

SPECIFICATIONS:

High Torque High Speed Brushless SERVO or WINCH
SMART - Comes as SERVO out of the Box. Easily switch to the preprogrammed WINCH Controller mode with the REEFS LINK*
SUBMARINE WATERPROOF: 7 Point Seals
Military Grade Construction
Internal Steel Gears / All CNC Aluminum Casing
4-Pole Brushless Motor
Magnetic Angle Sensor
Pulse Width Modulation Control
Bearing Type: 2 Ball Bearings / Weight: 2.3oz / 66g
Voltage: 10V-17V
Torque: 710oz (53kg)@12.6v / 810oz (59kg)@14.4v / 920oz (63kg)@16.8v
Speed: .10sec @12.6v / .09sec @14.4v / .08sec @16.8v
Dimension: 1.6 x .79 x 1.16 (LWH) / 48mm x 20.2mm x 29.5mm
Spline: 25T
Dead Band Width: 2μs
BEC Not Required, This is a direct power servo.
FULLY PROGRAMMABLE with BUILT IN PREPROGRAMMED WINCH CONTROLLER (the USB Link is required to switch servo to winch mode)

Unload Current:

320mA@10.0V
380mA@11.1V
480mA@12.6V
530mA@14.4V
630mA@16.8V

Load Current:

4300mA@10.0V
4800mA@11.1V
5800mA@12.6V
6500mA@14.4V
7500mA@16.8V

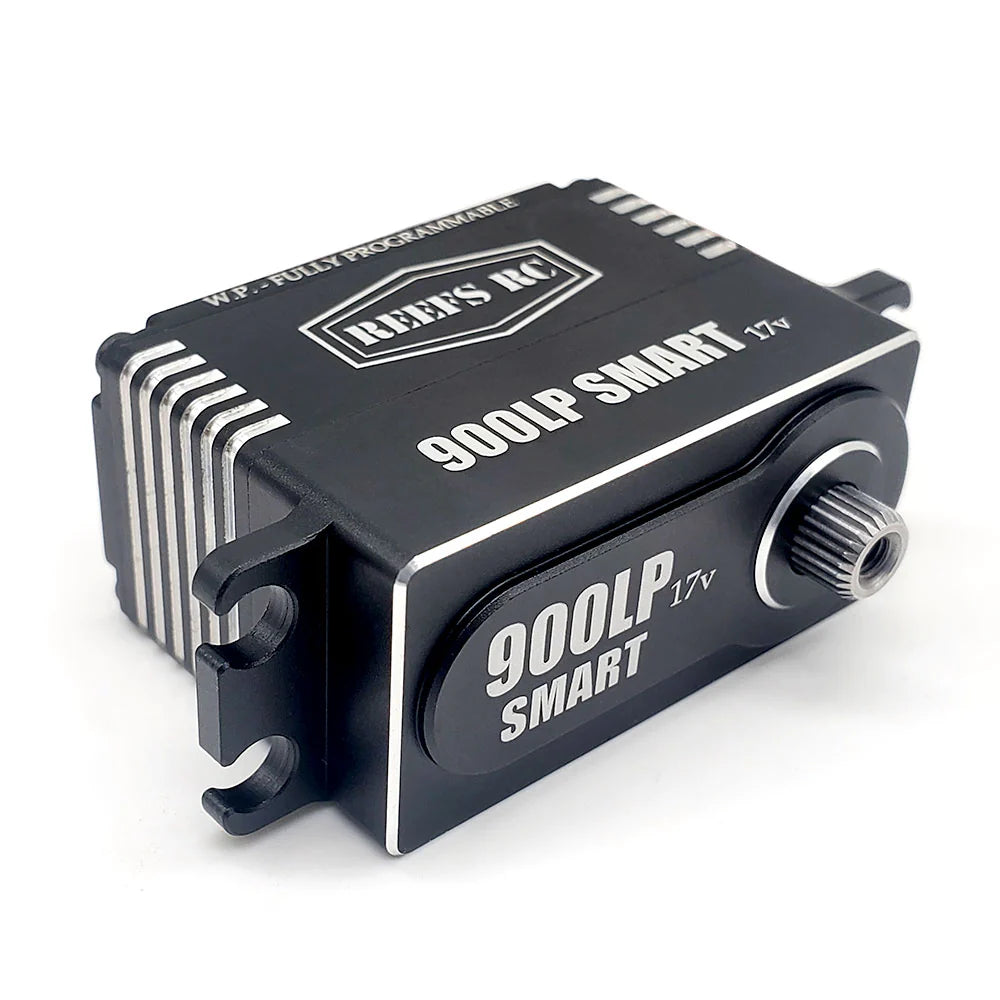

REEFS 900LP SMART 17V Brushless Direct Power Servo (REEFS186)
