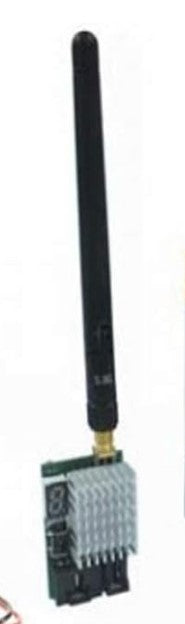

5.8GHz 32CH A/V 200mW Transmitter

Features

• 32 channels: Cover A, B, E bands and F bands
• Micro sized and light weight
• Transmitter frequency: 5645-5945MHz with 200mW power output
• Transmitting distance > ~1500m (open area)

TX TS5823 specs:

• Modulate: Wideband FM Modulate
• Video Format: NTSC/PAL
• Output Impedance: 50 Ohm
• Output Power: 23-24dBm
• Channel: 32 CH
• Operating Voltage: 7V-24V
• Supply Current: 190mA
• Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
• Audio Carrier Frequency: 6.5 MHz
• Video Input Level: 0.8~1.2 Vp-p
• Video Input Impedance: 75 Ohm
• Audio Input Level: 0.5~2.0 Vp-p
• Audio Input Impedance: 10K Ohm
• Connector: SMA Female
• Antenna connection: SMA Male
• Dimension: 40mm x 23mm x 8mm
• Weight: 8g (without antenna)

Included

• 1 x transmitting unit (TX)
• 1 x antennas (2db)
• 1 x 5p cable
• 1 x user manual

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
