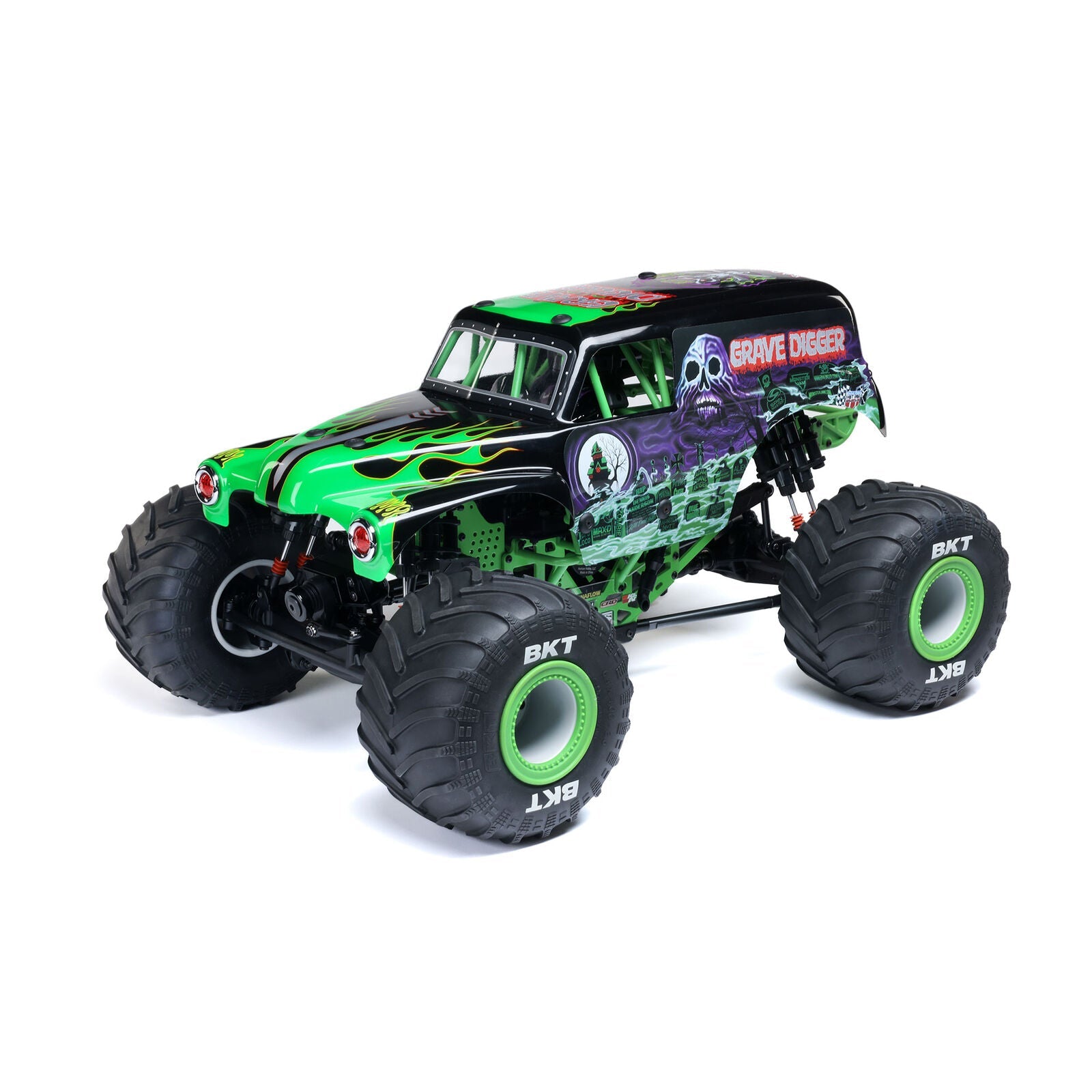

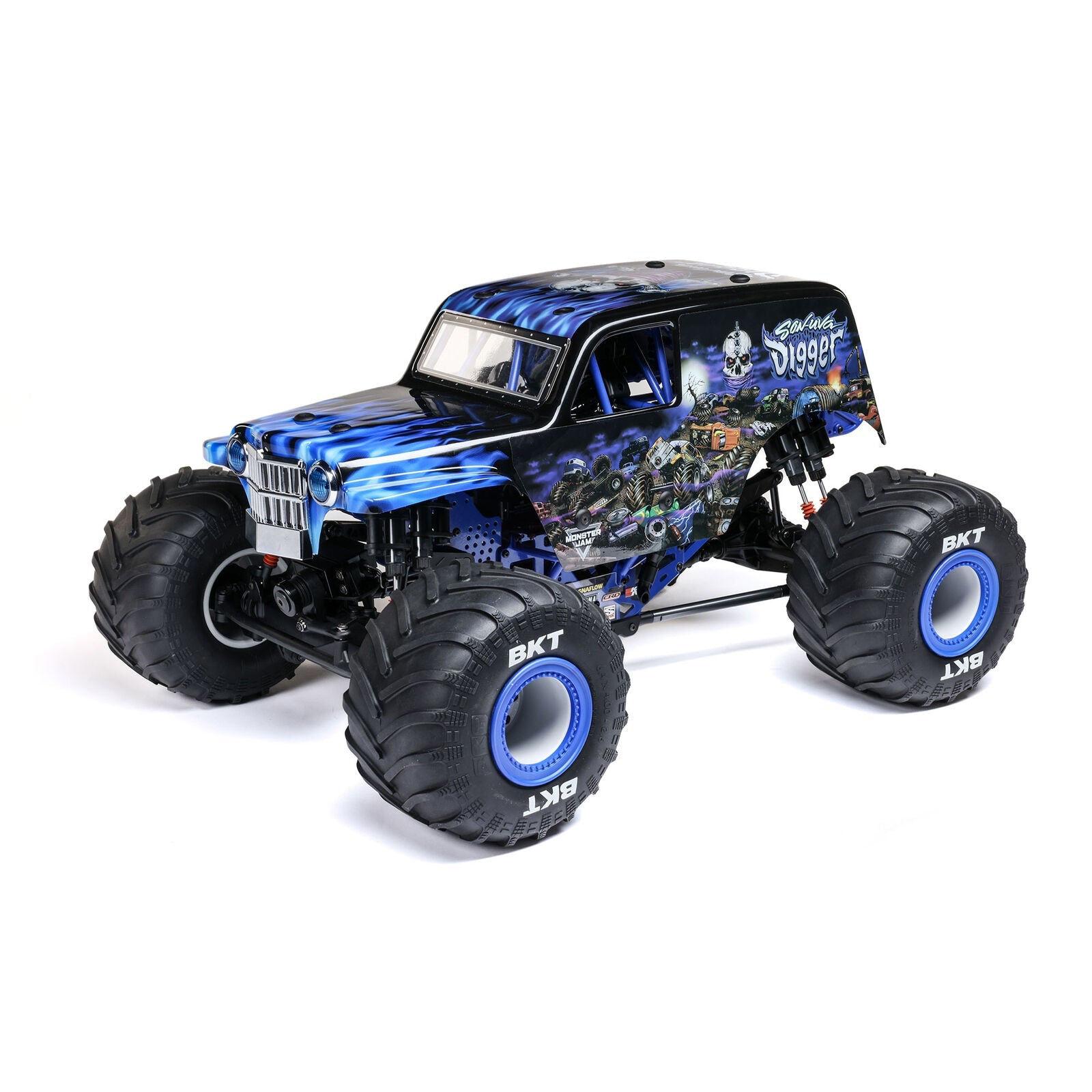

LOSI 1/8 LMT 2.0 4X4 Solid Axle Brushless Monster Truck RTR (LOS04028)

Losi 1/8 LMT 2.0 4X4 RC Monster Truck Introduction

When Losi introduced the LMT monster truck in 2020, it immediately set a high bar for solid axle RC monster truck performance. Now, with the LMT 2.0, Losi raises the bar even higher. Whether you're a hobbyist who just wants to race and bash or a Monster Jam™ fan eager to bring the stadium thrills home, the Losi LMT 2.0 is the truck for you.

Losi sets a new gold standard for solid axle monster trucks with the LMT 2.0! Its Freestyle Mode — made possible by Spektrum DRIVE Technology — lets you hold wheelies, do stoppies, and even bicycle on two wheels, just like full-size Monster Jam™ trucks!

Product Details

In The Box

• (1) Losi LMT 2.0 4x4 Solid Axle Monster Truck RTR
• (1) Spektrum DX3 Smart DSMR LMT 2.0 Transmitter
• (1) Spektrum 6-Channel DRIVE Receiver
• (1) Spektrum Firma 130 Black Edition Brushless Smart ESC 2S-4S: LMT 2.0
• (1) Spektrum Firma 3668 2800Kv 4-Pole Brushless Motor: 5mm
• (1) Spektrum S680 High Torque, Metal Top, Steel Gear 25T Servo
• (4) AA Transmitter Batteries
• Misc. Tools
• Instruction Manual

Needed to Complete

• (1) 2-4S LiPo Battery with IC5 Plug
• (1) Compatible Charger

The most exciting addition to the LMT 2.0 is one you'll have to DRIVE to believe. DRIVE

(Dynamic Response Intelligent Vehicle Envelope) is an innovative Spektrum receiver technology that, in Freestyle Mode, enables the LMT 2.0 to hold wheelies, do stoppies, and even “bicycle” on two wheels just like your Monster Jam™ favorites! Brought to you by Spektrum DRIVE Technology, Freestyle Mode lets you experience firsthand what it's like to be a monster truck driver.

Many more improvements give the updated LMT 2.0 platform even greater performance, durability, and Monster Jam™ realism. The LMT 2.0 has eight shocks, just like full-size monster trucks. Because the real trucks don't have springs wrapped outside of the shock bodies, neither does the LMT 2.0. Springs are now internal, preserving the scale looks with no loss of performance. New molded replica reservoirs add even more scale detail.

The included Spektrum S680 Steering servo now comes with a 25T spline. Its metal top supports a new servo saver with a dual step helical design. Through sudden jolts or hard landings, the dual step keeps your Losi LMT 2.0 tracking straight. Belleville springs replace a traditional coil spring to give steering a more precise and accurate feel.

The twin vertical plate chassis now features powder-coated plates — green on Grave Digger and blue on Son-uva Digger. A redesigned, two-piece axle housing with new, lower 4-link mounts and larger 6x15x5mm pinion bearings increases strength and durability.

With wider offset 2.6” wheels and slightly taller tires, the Losi LMT 2.0 appears much more dominating and scale than its predecessor. The faux beadlocks can be removed or painted to give your monster truck a custom look. Along with accurate sidewall and logo details, the officially licensed BKT tires have a more scale and less aggressive chevron tread pattern that improves handling on a wide range of surfaces — from groomed dirt or carpet monster truck tracks to driveways, yards, and local parks.

For added convenience, the LMT 2.0 flip-top cage now flips forward for easier battery access and secures to the chassis with a simple twist-lock. Both factory-finished body options — Grave Digger (LOS04028T1) or Son-uva Digger (LOS04028T2) — include exciting scale details such as exhaust headers, LED headlights, a driver figure, and chassis sponsor plates. Each is officially licensed by Monster Jam™ and Feld Motorsports.

The Losi LMT 2.0 comes ready-to-run with only a battery and charger required. The included Spektrum DX3 radio perfectly fits the needs of both new and experienced RC drivers. Using its throttle limiting function, novice racers can limit top speed to 50% or 75% of the monster truck's full potential until they have the confidence to unleash it all. The transmitter's battery voltage indicator shows the charge level of your Smart battery in real time. When the voltage gets low, an alarm sounds. Just pop in a charged pack and you're ready to tear up more dirt with the Losi LMT 2.0!

Losi 1/8 LMT 2.0 4X4 RC Monster Truck Features

• Spektrum Firma 3668 2800Kv 4-pole brushless motor with 5mm shaft
• Spektrum Firma 130A Smart brushless monster truck ESC
• Officially licensed Grave Digger or Son-uva Digger bodies
• Powder-coated aluminum chassis plates
• New 2.6” wheels with removable replica beadlock
• Officially licensed BKT monster truck tires
• 1/8 scale drivetrain with new HD differential cases

• Center differential with torque-dampening Cush Drive
• Stronger 2-piece solid front and rear axle housing
• New lower 4-link mounts for improved durability
• Extra-durable metal top Spektrum S680 steering servo
• Stronger dual step helical servo saver design
• Flip-forward cage with easy twist-lock attachment
• New high-clearance wheelie bump
• Spektrum Smart DX3 DSMR transmitter

SPEKTRUM DRIVE TECHNOLOGY

Spektrum has custom-engineered a new 6-channel receiver for the LMT 2.0 that includes innovative DRIVE (Dynamic Response Intelligent Vehicle Envelope) Technology. You have to experience it to believe it! Spektrum DRIVE Technology provides three pre-programmed drive modes that you can toggle between “on the fly” using your thumb on the DX3 transmitter's A/B rocker switch.

• Unlimited Mode — Helps you to hold wheelies, do stoppies, and bicycle on two wheels like full-size Monster Jam™ trucks
• Wheelie Mode — Offers the optimum electronic support when all you want is to perform show-stopping wheelies

OVERBUILT ELECTRONICS INSTALLED

For incredible top speed and torque, the LMT 2.0 features a 2S to 4S capable power system with a Spektrum 3668 2800Kv brushless motor and Spektrum 130A ESC. Using a 4S LiPo battery, it can deliver speeds of 45+ mph. To help you manage all of that muscle, the metal top, steel gear, 25T Spektrum S680 high torque steering servo is equipped with an innovative, dual step, helical design servo saver. It improves holding power while giving the steering a precise, accurate feel.

FREESTYLE MODE

The LMT 2.0's transmitter-activated Freestyle mode is a first for any RC monster truck, made possible by Spektrum DRIVE Technology. In this mode, the electronics allow you to hold longer wheelies, balance for a stoppie, and even “bicycle” on two wheels — just like full-size Monster Jam™ trucks do during their skills challenge and freestyle runs.

SPEKTRUM DX3 SMART TRANSMITTER

The Spektrum DX3 Smart 2.4GHz transmitter included with the Losi LMT 2.0 offers many advanced features to meet the needs of first-time and experienced RC drivers. Using its throttle limiting function, novice racers can limit top speed to 50% or 75% of the monster truck's full potential until they have the confidence to unleash it all. Special trim knob assignments allow you to fine tune your truck while in freestyle mode.

SMART BATTERY VOLTAGE INDICATOR

You'll never have to wonder if your Losi LMT 2.0 monster truck's on-board battery needs a recharge. The Spektrum DX3 transmitter's battery voltage indicator shows you the charge level of your Smart battery in real time with just a glance. Once the battery level gets low, an alarm will also sound.

OFFICIALLY LICENSED MONSTER JAM™ BODIES

Star in your own Monster Jam™ events with the Losi LMT 2.0! This monster truck is available with your choice of two factory-finished scale bodies — Grave Digger (LOS04028T1) or Son-uva Digger (LOS04028T2). Each is highly detailed and officially licensed by Monster Jam™ and Feld Motorsports.

OFFICIALLY LICENSED BKT TIRES

The LMT 2.0 now includes officially licensed BKT tires with a chevron tread pattern that's more scale but less aggressive, resulting in better handling on a greater variety of surfaces. The tires include sidewall and logo details to match the BKT tires used on real monster trucks.

WIDER & LONGER FOOTPRINT

With 2.6” wheels featuring a wider offset plus slightly taller tires and longer 4-link bars, the LMT 2.0 has a larger overall size and footprint compared to the previous LMT monster truck platform. It's more scale and more dominating! The wheel has a replica beadlock that you can remove or paint to customize the look of your truck.

IT'S ALL IN THE DETAILS

Many scale details are included to give the officially licensed monster truck bodies a true scale look. The exhaust headers, LED headlights, a driver figure, and authentic lower chassis sponsor panels all make it easy to imagine you're driving the real truck.

ALUMINUM CHASSIS

The Losi LMT 2.0 utilizes a 6061-T6 aluminum twin vertical chassis plate design for extreme strength and durability. The chassis plates are powder-coated in green for the Grave Digger and blue for the Son-uva Digger.

WHEELIE BUMP

The wheelie bump included with the Losi LMT 2.0 improves the realistic scale appearance while still functioning as a wheelie bar. The cross bar also includes provisions for a flag mount.

TWO-PIECE SOLID FRONT & REAR AXLE HOUSING

The solid front and rear axle housing of the LMT 2.0 has been redesigned with a stronger, 2-piece design. The lower 4-link mounts now have wider spacing and more material for increased strength and security. The third member has also been updated to accept the larger 6x15x5mm pinion bearings for better support and durability.

1/8 SCALE DIFFERENTIALS

The new HD differentials improve strength and durability with the addition of cross-pin blocks and a larger cup for increased fluid capacity. All three HD differentials come filled with 1 million weight diff fluid.

COMPOSITE FLIP-TOP CAGE

Significant improvements have been made to how the LMT 2.0's flip-top cage mounts to the chassis. The cage now flips forward, making it easier to change the battery and maintain your monster truck. To secure the cage back into place, you simply flip the cage back down and lock it to the chassis.

CENTER DIFFERENTIAL WITH CUSH DRIVE

The fluid-filled center diff allows for tuning with the added protection of torque-dampening Cush Drive. The rubber elastomer Cush Drive system absorbs high impact forces from the motor and from hard landings to increase drivetrain durability and reliability.

ELASTOMER BATTERY MOUNTING

The LMT 2.0 comes equipped with the popular Losi Elastomer Battery Mounting System for a versatile battery hold down method.

Product Specs

Approximate Assembly Time: Less than 1 Hour

Battery: Sold Separately

Body: Factory-finished body Grave Digger or Son-uva Digger options

Charger: Sold Separately

Chassis: 6061-T6 Aluminum Twin Vertical Plate

Completion Level: Ready-To-Run

Connector Type: IC5

Differential: Gear

Drive Type: Forward/Brake/Reverse

Drivetrain: 4WD

Final Drive Ratio: 18.76

Gear Pitch: Mod-1

Internal Gear Ratio: 10.16

LiPo Compatibility: 2S, 3S, 4S

Make: Monster Jam

Motor Size: 3668

Motor Type: Brushless

Pinion: 14T

Power Type: Electric

Product Height: 12.2" (310 mm)

Product Length: 22.1" (561 mm)

Product Weight: 179.2 oz (5,080g)

Product Width: 16.2" (411 mm)

Radio: Included

Receiver: Included

Scale: 1/8

Servos: Included

Shock Type: Oil-filled

Speed Control: Included

Suspension: Solid Axle 4-link

Technology: Smart, DRIVE

Tire Tread: BKT Chevron

Tire Type: All-terrain

Top Speed: 45+

Vehicle Size: Standard

Vehicle Type: Monster Truck

Wheel Hex Size: 17mm

Wheelbase: 15" (381 mm)
