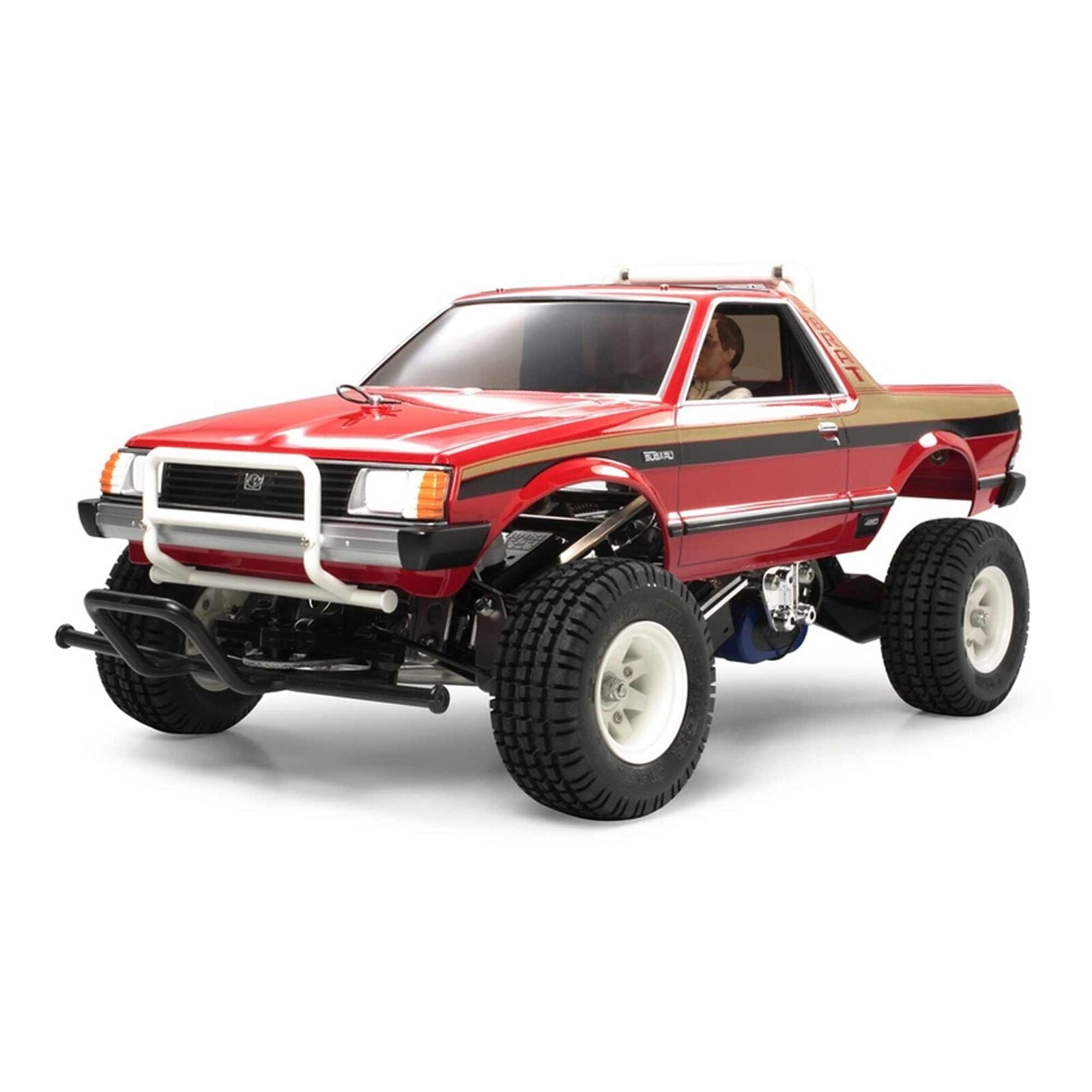

Tamiya 1/10 Subaru Brat 2WD Off-Road Kit (TAM58384A)

The Subaru Brat was made solely for export, and achieved tremendous popularity in the U.S. market in...
Availability: Out Of Stock
$229.99
$229.99
10 customers are viewing this product
Description
Description
x
The Subaru Brat was made solely for export, and achieved tremendous popularity in the U.S. market in the 1970s.
In The Box
  • (1) 1/10 Subaru Brat Off-Road Kit
  • (1) HobbyWing THW 1060 Brushed Motor ESC
  • (1) 540-Brushed Type Motor
  • (1) 1/10 Subaru Brat Off-Road Kit Manual
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger

Introduction

Tamiya first produced an R/C version of this popular little truck back in 1983, and is now proud to present an updated, improved re-release of this classic R/C truck. Aside from the upgraded internal parts, this assembly kit comes with a driver figure for a nostalgic feel. In addition, both a super-detailed resin body for shelf display and a lightweight durable polycarbonate body for racing are included.

About the Chassis

The unique space frame chassis features 4-wheel independent suspension system with front double wishbones and rear trailing arms. The rear suspension in particular has been updated with the diaphragm type oil dampers and coil springs. A 540 Type motor drives the differential-equipped gearbox, and the drive shaft features a dog bone joint for optimum transmission efficiency. Block pattern tires mounted on the realistic 8-spoke wheels rounds out this stylish package.

Bushing Material Plastic
Charger Sold Separately
Differential Gear Diffs
Receiver Sold Separately
Shock Type Oil-filled damper
Drivetrain 2WD
Drive Type Forward/Brake/Reverse
Product Height 6.88976" (175 mm)
Battery Sold Separately
Connector Type Tamiya
Gear Ratio 6.7:1, 7.3:1, 8.5:1
Motor Size RS540
Product Length 17.8346" (453 mm)
Steering Type 2WS
Suspension Front double wishbone with in-board spring, Rear trailing arm with oil damper
Motor Type Brushed
Rear Track 7.0" (178mm)
Speed Control Included
Front Track 7.75" (197mm)
Vehicle Size Standard
Product Width 8.66142" (220 mm)
Radio Sold Separately
Scale 1/10
Power Type Electric
Servos Sold Separately
Product Weight 64.9 oz (1,840g)
Vehicle Type Buggy
Body ABS Plastic
Ball Bearings Plastic bushing
Chassis ABS Plastic
Completion Level Kit
